ASSEMBLY INSTRUCTION

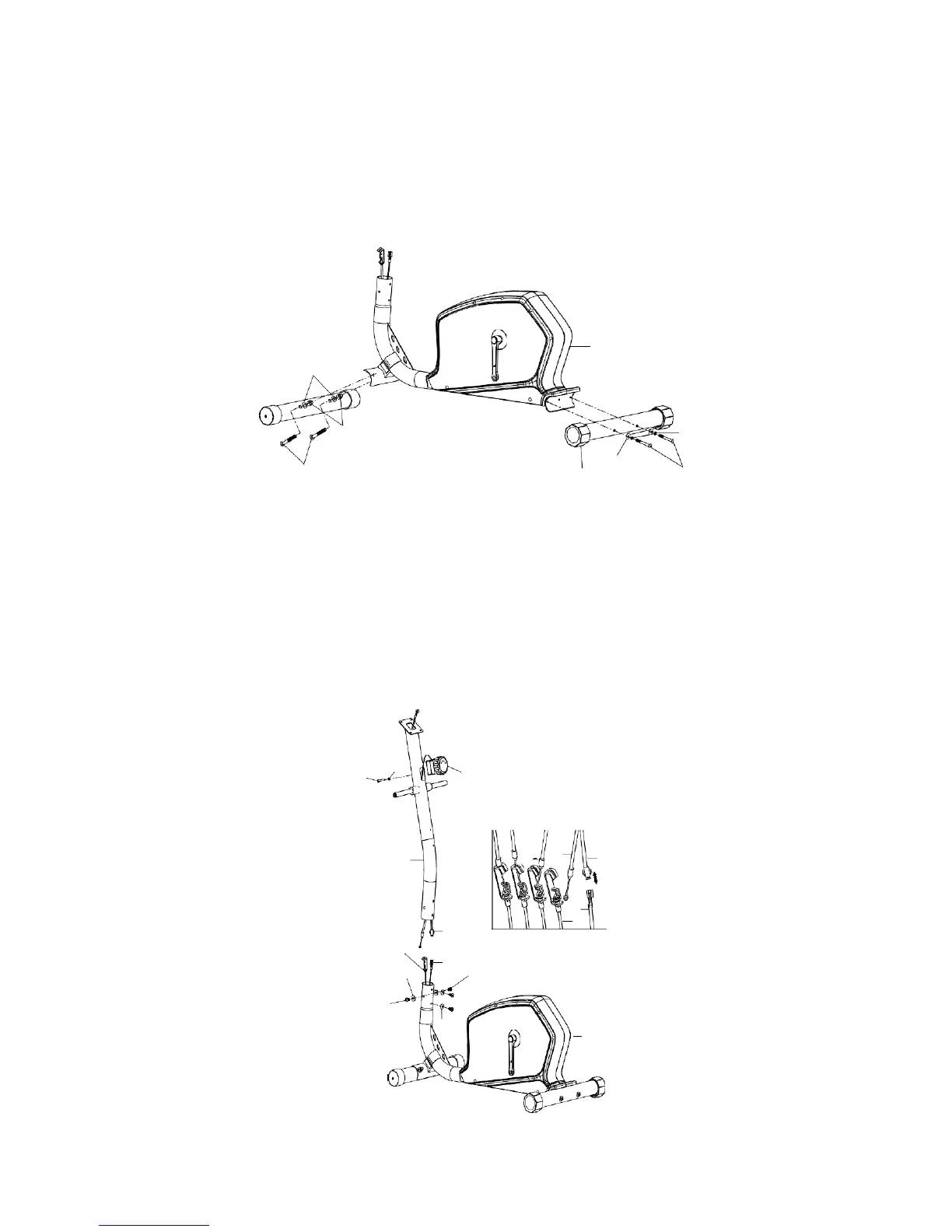

STEP 1
Attach rear stabilizer (3) to main frame (1), tighten with two sets of curve washer (5) and
allen bolt (2). Then attach the front stabilizer (6) to the main frame (1) , tighten with two sets
of carriage bolt (23) ,curve washer (24) and domed nut (36).
1
24
36
23
STEP 2
4
3
5
2
Insert the cable of the tension control (55) into the opening of the front post
(9). Secure using one flat washer (56) and one screw (57) which are
pre-assembled on the tension control.
Connect the extension lower sensor wire (50) with the middle sensor wire (51).
Turn the tension control knob w/cable (55) to level 8, connect it to extension tension
cable (58).
Insert the front post (9) into the main frame (1) and secure using four allen bolts (47)
and four curve washers (5).
57
56
55
9
55
51
50
51
58
5
50
47
47
5
1
