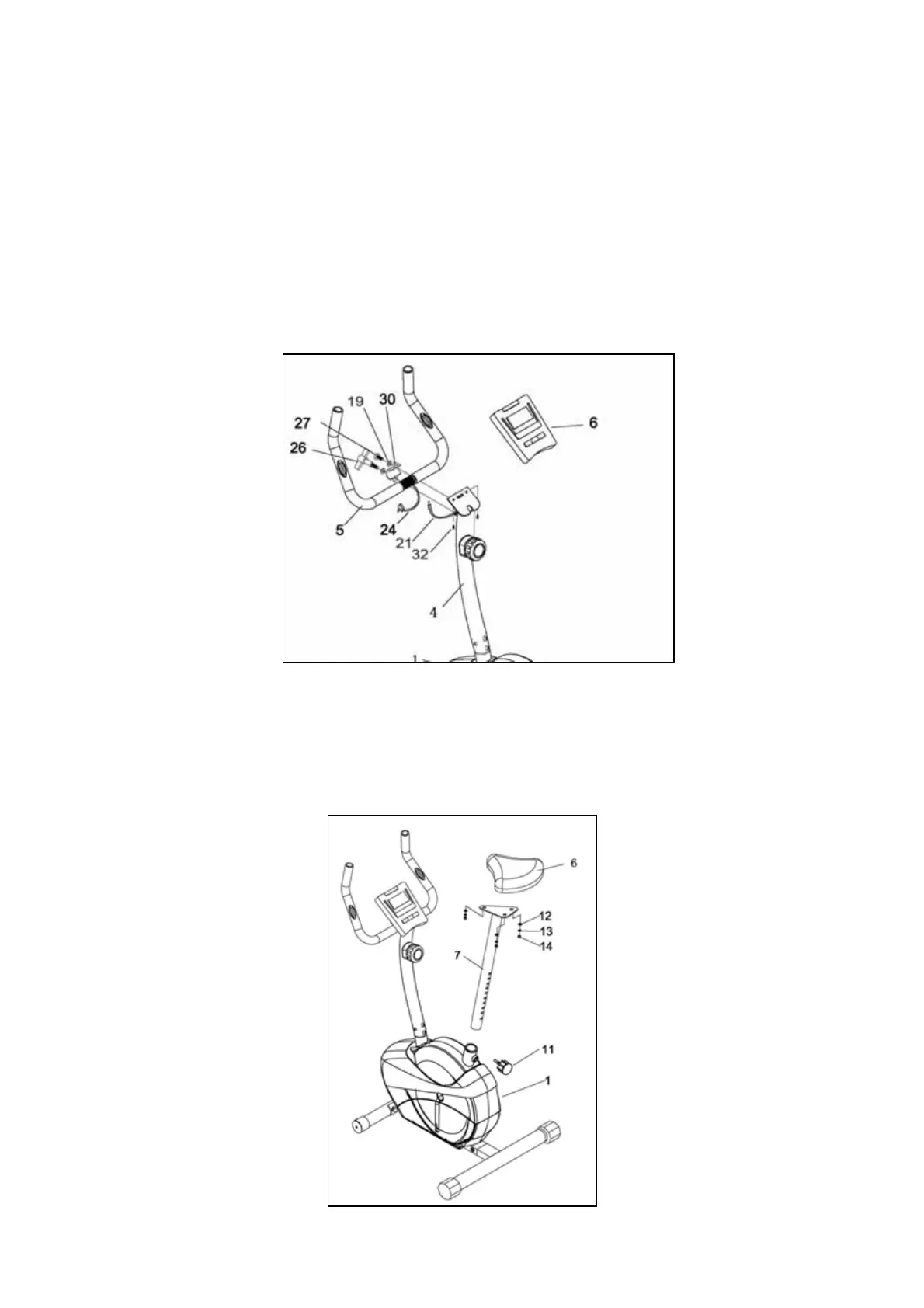

STEP 3
Slide the computer (6) onto the computer holder of the front post (4) and tighten with 2
screws (32). Plug the upper computer wire (21) into the rear of the computer marked
“sensor input”.
Assemble the handlebar (5) to the front post (4) and tighten with 1 set of allen bolt (27) and
flat washer (19) on clamp (30), then T knob (26). Plug hand pulse wire (24) to the rear of the
computer marked “pulse input”.
STEP 4
Fix the seat (8) to the seat post (7), tighten with 3 sets of flat washer (12), spring washer (13)
and nylon lock nut (14), then insert the seat post (7) into the main frame (1). Line up the
holes and secure the seat in position with the quick release knob (11). The correct height
for the seat can be adjusted after the bike is fully assembled.
