Maretron FFM100 - Figure 1 - M1 RSP-2 R-E8 and M2 RSP-2 R-E8 Accuracy and Pressure Loss

®®

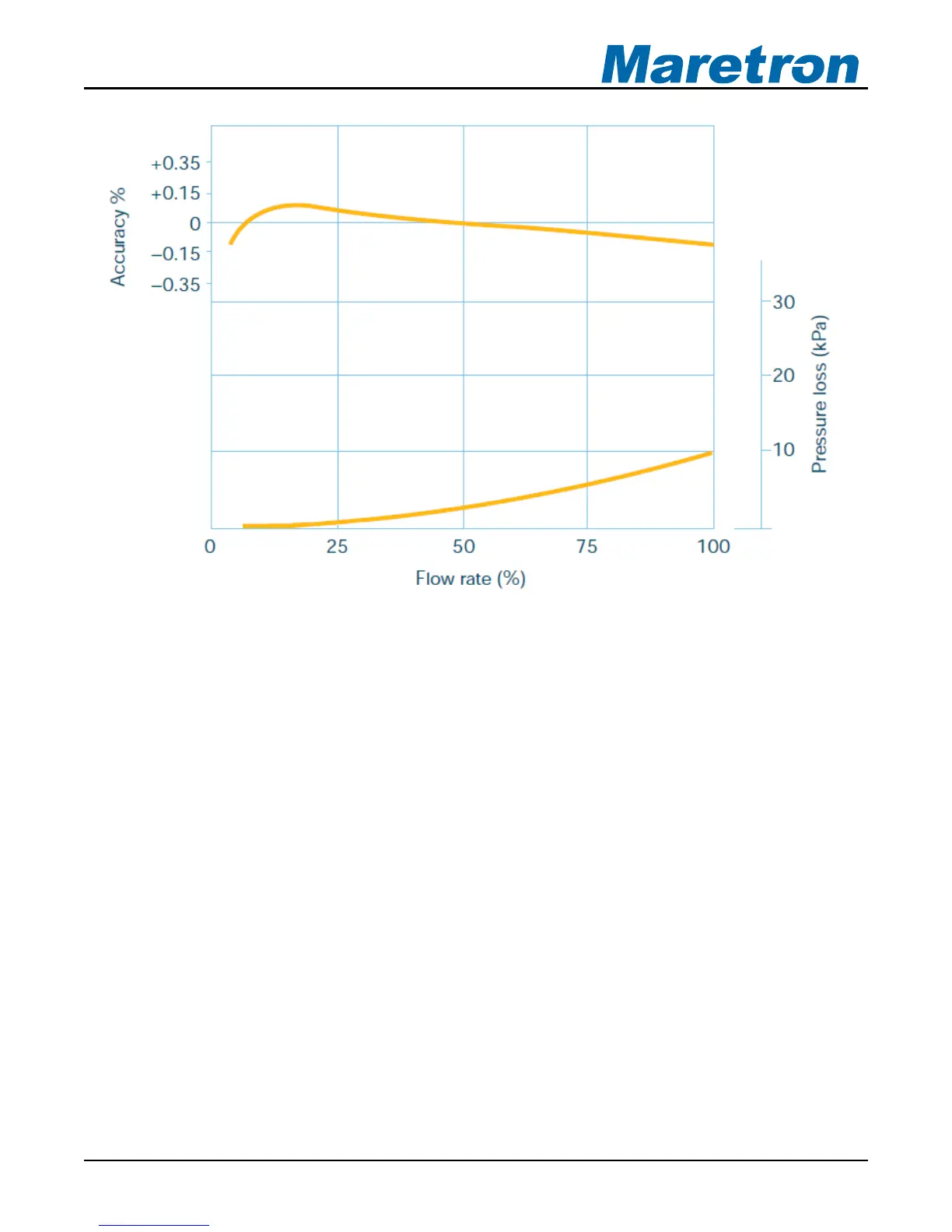

Figure 1 - M1RSP-2R-E8 and M2RSP-2R-E8 Accuracy and Pressure Loss
Please refer to Figure 2 below for a chart detailing typical accuracy and pressure loss versus
flow rate for the M4ARP-2-E8 fuel flow sensor.
