Mariner AQA430SL - 4 Channel Bridged Configuration

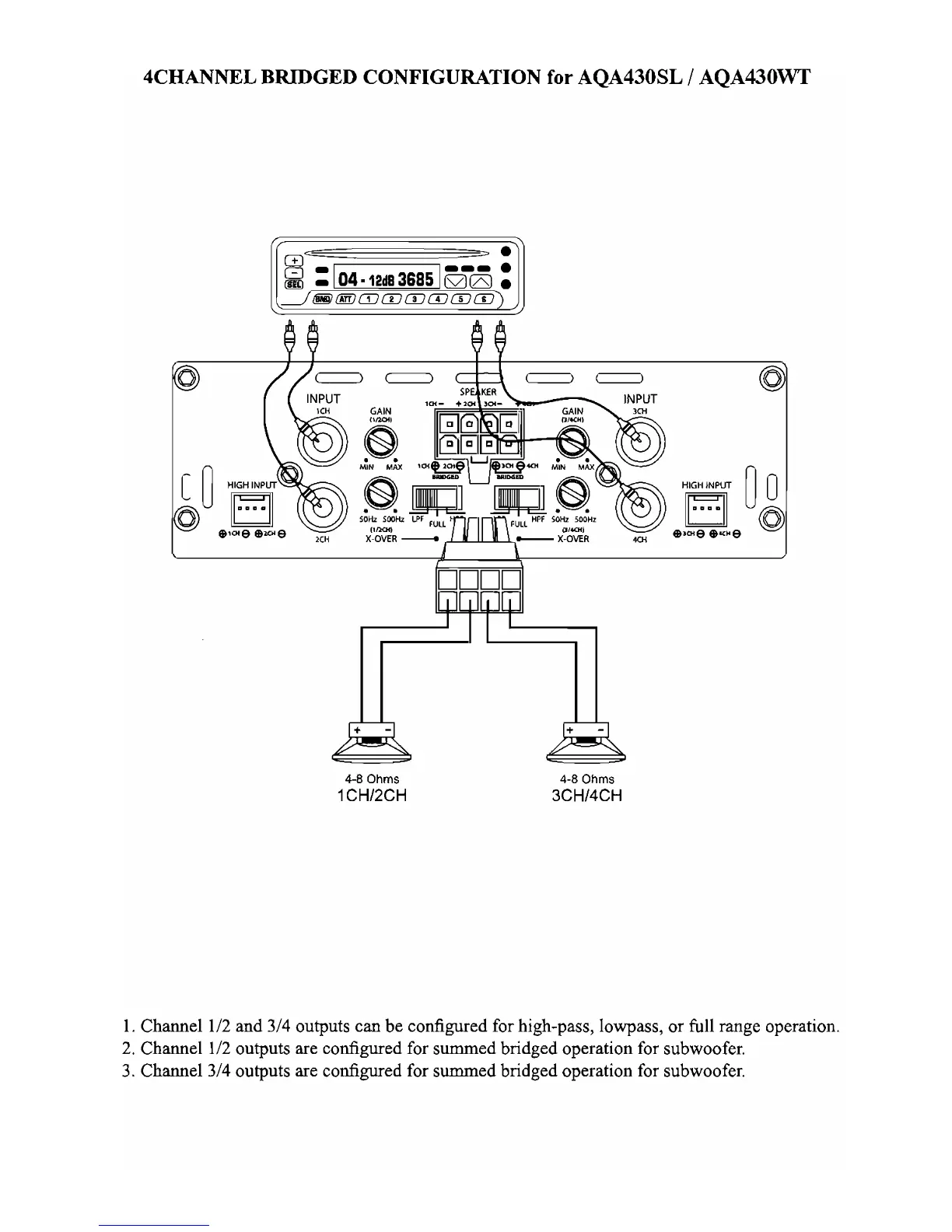

4CHANNEL BRIDGED CONFIGURATION for AQA430SL / AQA430wr
~
.
- I 1 ---·
_ 04'12dB3685
12J16l •
~(jJj) CDCDmCDmCD
+
4-8 Ohms
1CH/2CH
4-8 Ohms
3CH/4CH
""
I. Channel 112 and
3/4
outputs can be configured for high.pass, lowpass, or full range operation.
2. Channel 112 outputs are configured for summed bridged operation for subwoofer.
3. Channel 3/4 outputs are configured for summed bridged operation for subwoofer.
