MOUNTING THE BRACKET TO THE BOAT
Place the assembled bracket on the desired location of your transom. Check to make sure there
are no obstructions on the inside of the transom. Hold the bracket in place. Make certain that
the bracket is level with the transom. Mark at least two (2) upper and two (2) lower hole
locations using the assembled bracket as a template. Drill out the marks you just made using a
proper size drill bit. Attach bracket to boat using appropriate length bolts, nuts, and washers.
Tighten securely.
HANGING THE MOTOR
Lift your motor on to the bracket. Position the motor over the polypropylene board under the
motor clamp handles and against the lip of the bracket. Tighten securely.

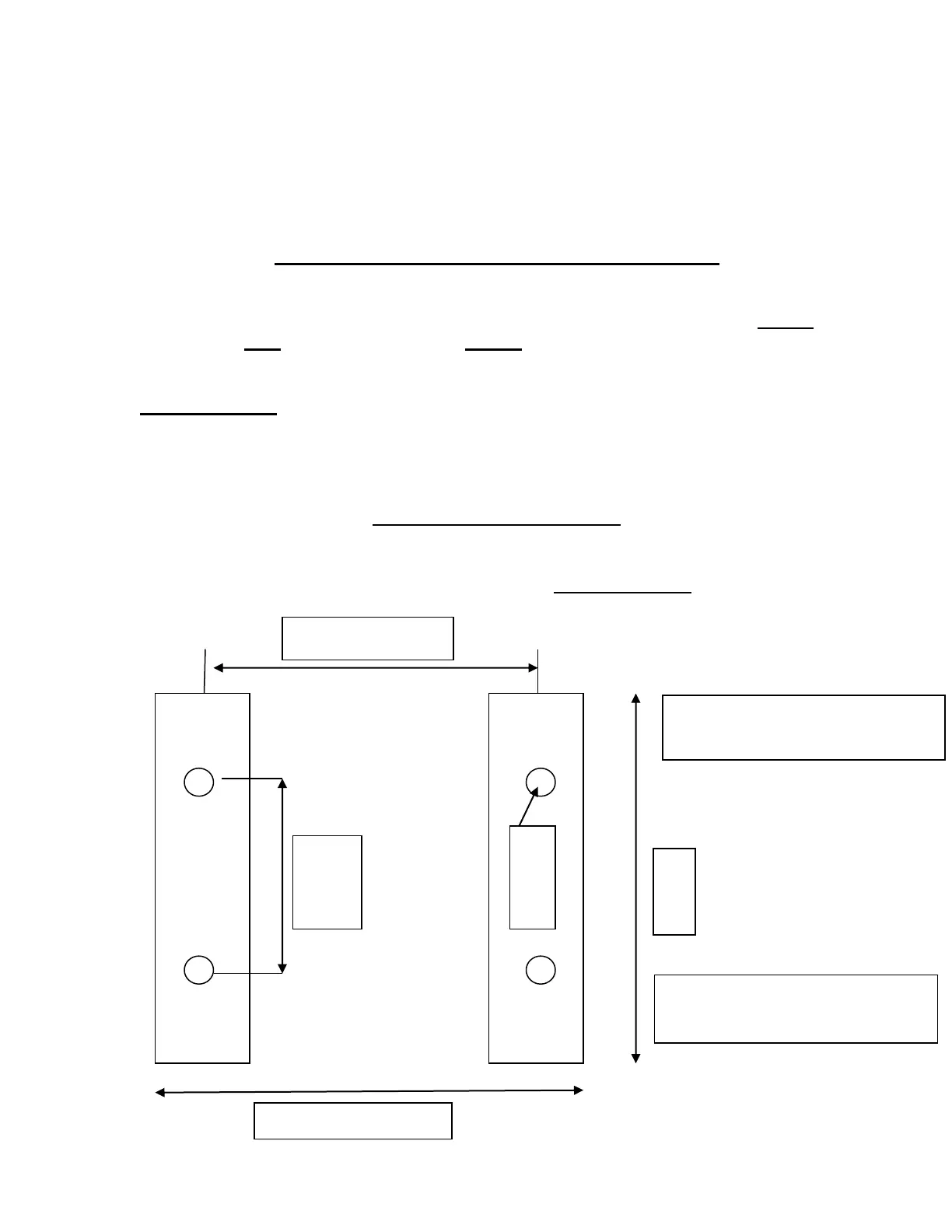

Foot print of bracket when
assembled on poly board
Bracket setback length including
Poly board is 10.125”
