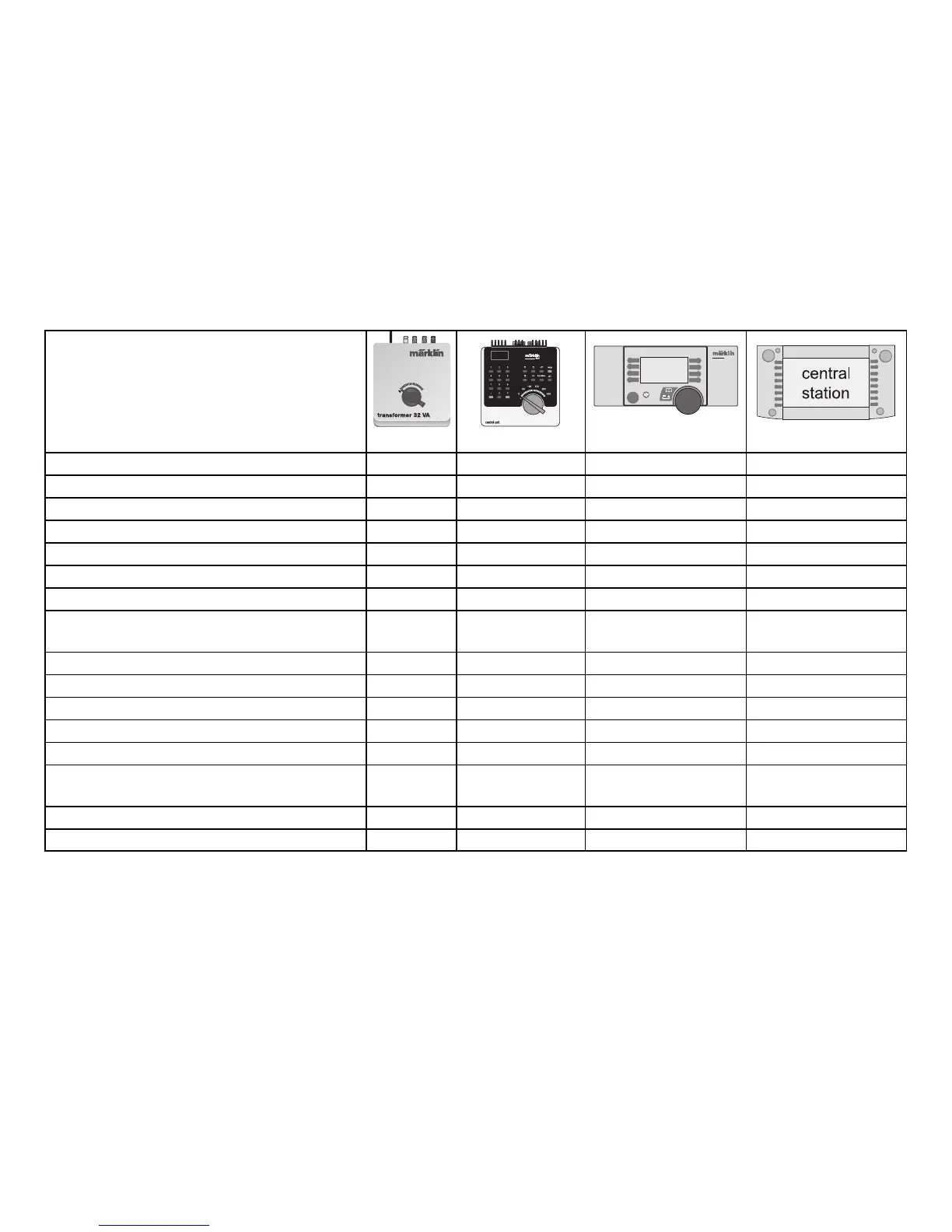

Controllable Functions
6647 6021 60652 60212
Headlight
1)
Always on
2)
40 / function+off Headlight Button Headlight Button
Number Board Lights
1)
Always on
2)
40 / f1
3)
Button by Symbol Button by Symbol
Sound Effects of Steam Locomotive in Operation – 40 / f2
3)
Button by Symbol Button by Symbol
Sound Effects of Locomotive Whistle – 40 / f3
3)
Button by Symbol Button by Symbol
Low Speed Switching Range (only with ABV) – 40 / f4
3)
Button by Symbol Button by Symbol
Cab Lighting
1)
– 41 / f1
3)
Button by Symbol Button by Symbol
Sound Effects of Locomotive Bell – 41 / f2
3)
Button by Symbol Button by Symbol
Sound Effects: Whistle Pattern
– 41 / f3
3)
Button by Symbol Button by Symbol
Before Railroad Grade Crossing
Turning off the Sound Effects of Squealing Brakes – 41 / f4
3)
Button by Symbol Button by Symbol
Sound Effects: Air Pump – – – Button by Symbol
Sound Effects: Injector on/off – – – Button by Symbol
Sound Effects: Auxiliary Blower on/off – – – Button by Symbol
Sound Effects: Coupler disengaging/engaging – – – Button by Symbol
Sound Effects: Rail Joint (Frequency
– – – Button by Symbol
Depends on the Locomotive’s Speed)
Sound Effects: Blow Down with Compressed Air – – – Button by Symbol
Sound Effects: Cab Radio – – – Button by Symbol
STOP
STOP
mobile station
systems
1) => When the locomotive is operated with a Control Unit, Mobile Station, or Central Station, the sound effect
of a steam powered generator will also turned on at the same time.
2) => The brightness of the headlight and the number board lights depends of the level of voltage in the track.
3) => 40 = 1st address, 41 = 2nd address.
