7. Operating locomotives 8. Function monitoring
13

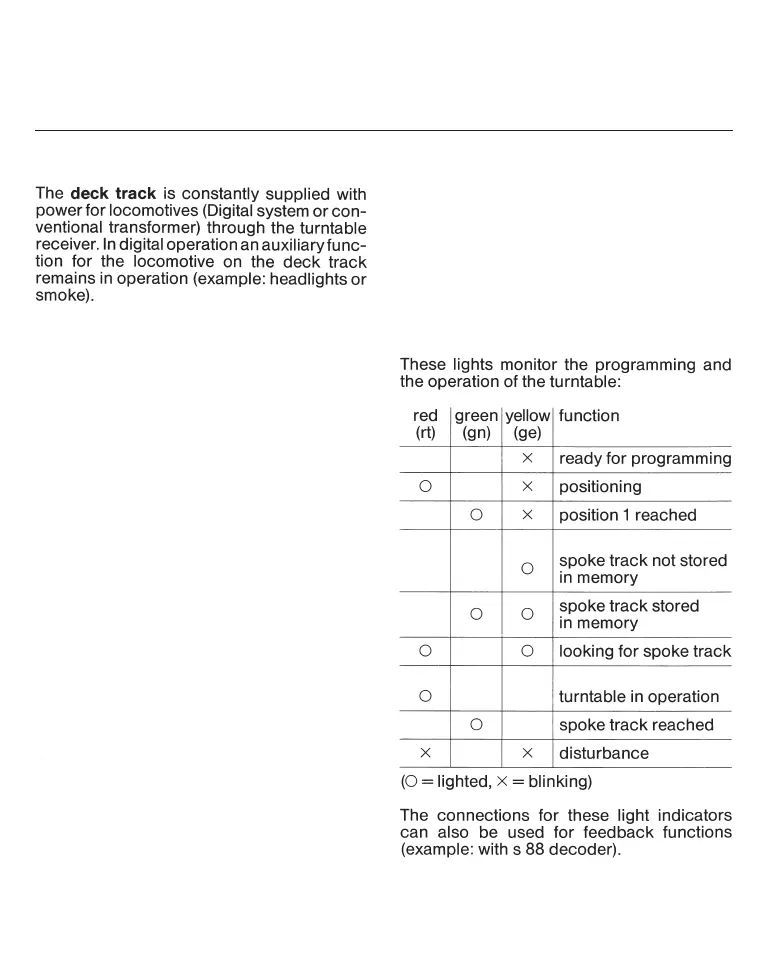

Connections for 3 lights are provided on the
turntable receiver for monitoring functions
(ill. 7). Light bulbs (16 volt) or LEDs (with the
appropriate resistance) can be connected
here. These light indicators can be connected
to the
L accesory power socket only with
the
diode (1N 40014007) included with
the turntable (follow installation instructions
for this diode!).
