27
Potentielle Fehlerquellen beim Rauchgenerator
• DerRauchgeneratordarfnurmaximalhalbmitRauchöl
gefülltsein.
• ImRauchgeneratordarfsichkeineLuftblasebenden.
• DerAnschlussdrahtanderUnterseitedesRauchge-
nerators muss sicheren Kontakt zur Anschlussfeder im
Lokomotiv-Fahrgestell besitzen. Notfalls Anschlussdraht
entsprechend nebenstehender Zeichnung justieren.
Potential Problems with the Smoke Generator
• Thesmokegeneratorcannotbelledanymorethan
halfway with smoke fluid.
•
There should not be any air bubbles in the smoke genera-
tor
.

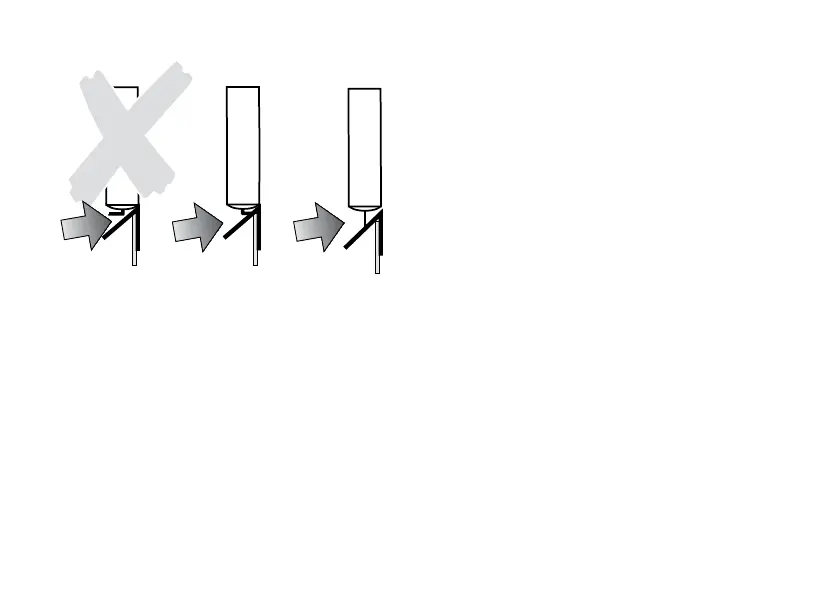

• Theconnectingwireontheundersideofthesmoke
generator must have a clean contact with the connection
eldinthelocomotive’sframe.Whennecessary,adjust
the connecting wire according to the diagram next to this
text.
Causes d‘erreurs potentielles avec le générateur fumigène
• Legénérateurfumigènenepeutpasêtreremplide
liquide fumigène au-delà de la moitié du tube.
• Aucunebulled‘airnepeutsetrouverdanslegénérateur
fumigène.
• Lecâblederaccordementraccordéàlafaceinférieure
du fumigène doit posséder un contact sûr avec le ressort
deconnexiondanslechâssisdelalocomotive.Encas
debesoin,ajustezlecâbledeconnexionenvousconfor-
mant au schéma.
