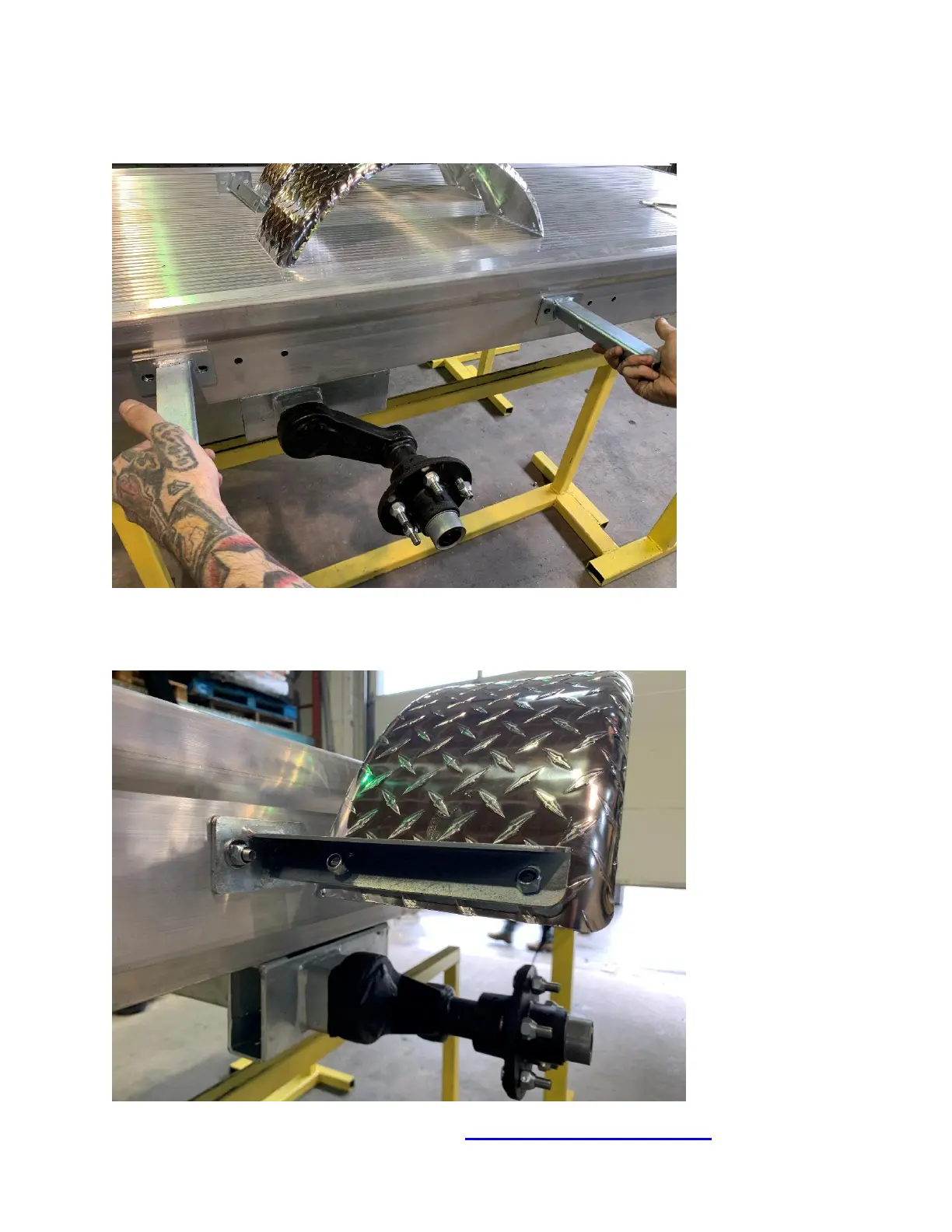

4. Attach the fender mounting brackets to the side rail using the 40 x 7mm bolts. Note, there
are 4 sets of holes per side. If you put the axle in the forward position (sled) then use the 2
sets of forward fender bracket holes. If you mounted the axle in the back position
(SXS/UTV) then use the rear holes for the fender mounting brackets.
5. Mount the fenders to the fender brackets using the 20 x 7mm bolts.
Make sure the bracket orientation matches the picture below.
OWNER’S MANUAL / www.marlonproducts.com
