Marmitek CONNECT DA51 - 5 Connection Diagram; 6 Product Details; Technical Specifications

© MARMITEK
8

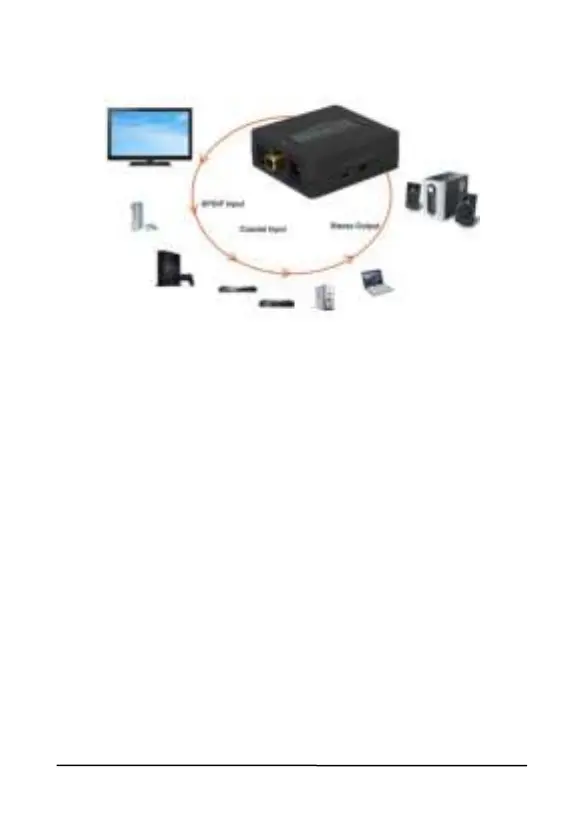

5 Connection diagram
6 Product details
6.1 Technical specifications
Power supply: 230VAC +10% -10% 50Hz, 5V
1000mA switched mode power
adapter
Audio input: 1 x Optical (Toslink), 1 x Digital
Coaxial
uncompressed digital audio
Audio output: 2 x RCA (L/R)
1 x 3.5mm (Headphone).
DAC: 192 kHz, 24 bit
Supported data rates: 2-channel LPCM, 32KHz,
44.1KHz, 48KHz, 96KHz sample
frequencies
Dolby Digital 5.1
DTS-ES6.1
Signal to noise ratio: ≥120db
Channel Separation Audio R/L: ≥85db
Frequency response: (20Hz ~ 20KHz) +/- 0.5db
Dimensions (H x W x D): 20x55x72 mm
Weight: 40 grams
