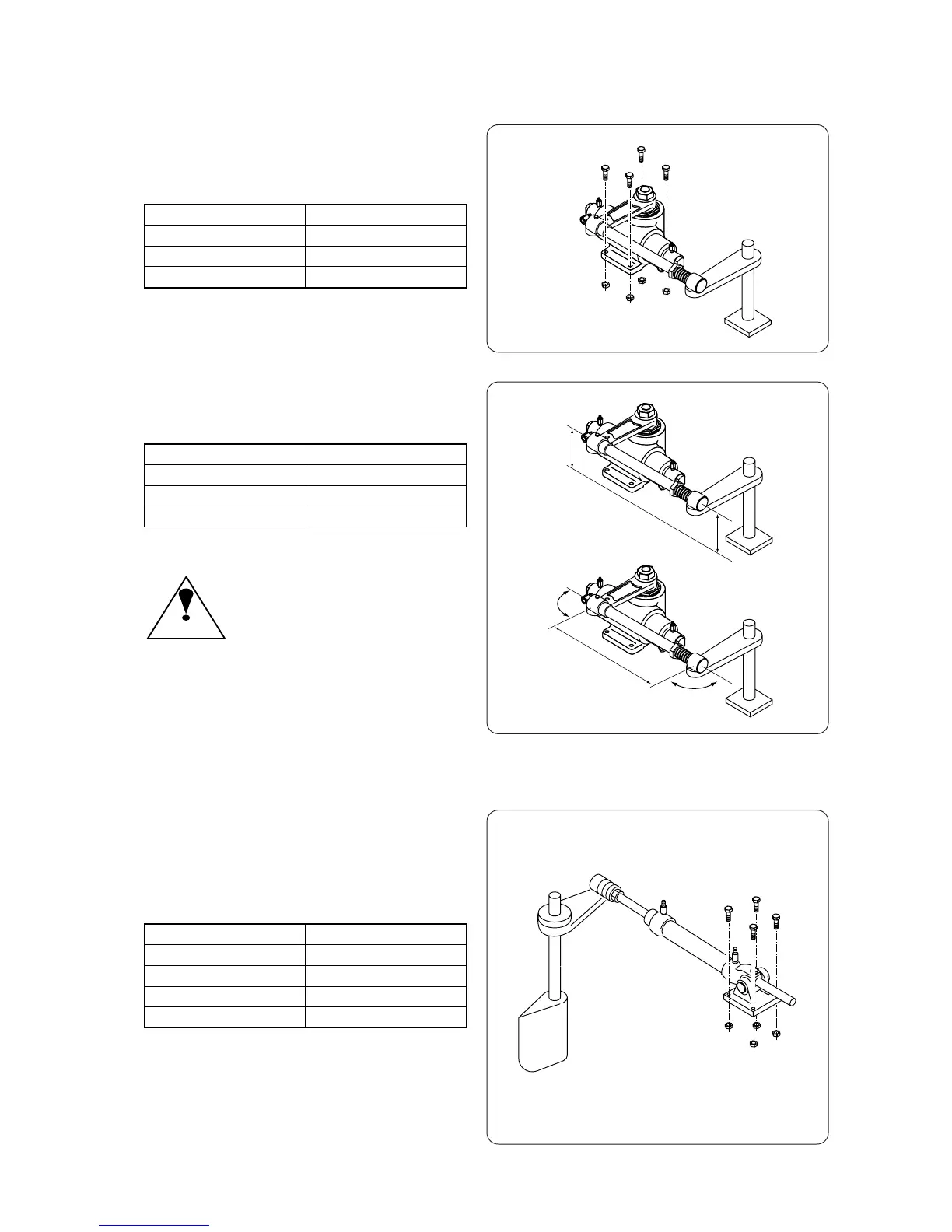

1. Drill 4 holes according to the table and install
Cylinder tightly by bolts and nuts to the place
to be installed.
2. Install it by paying attention to dimensions,
positions and angles of the figure.
Make the same height the connection
link between Receiving Cylinder and
tiller lever, and install it on even level. If
connection link is listed, the connection
link may come off during steering.
• Installation of Cylinder MS Type (Direct-driving type)
1. Drill 4 holes according to the table and install
Cylinder tightly by bolts and nuts to the place
to be installed.
