Marol MRB-80A - Hydraulic Piping; Piping Preparation and Helm Pump Connection; Cylinder Piping (Rotary Type)

8
2. Install it with care in installing position and
angle. Once finished the installation of
Cylinder, remove space washer for protec-
tion.
Caution

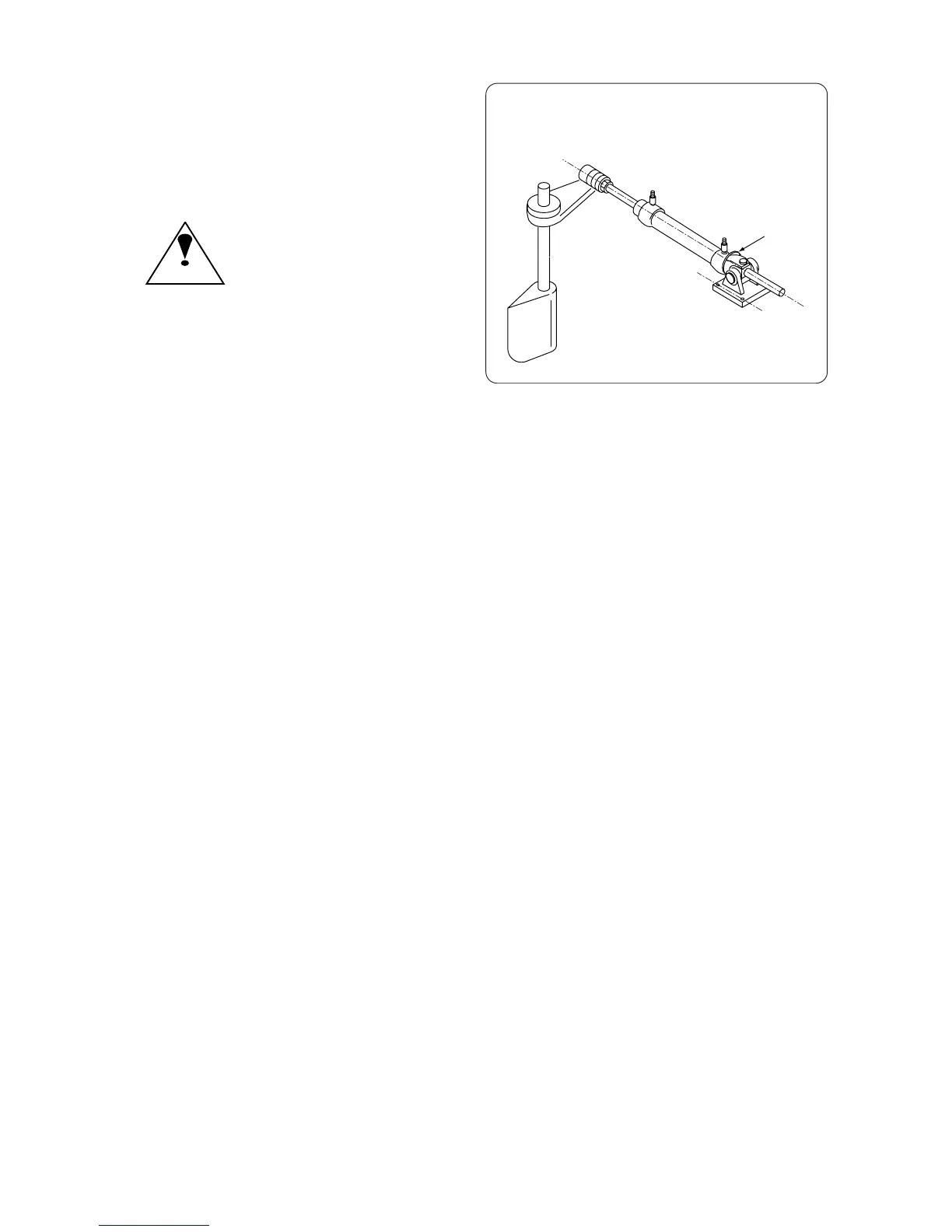

Confirm that X-X and Y-Y axes remain
parallel at the position where helm
stands neutral. If not parallel, not only
Cylinder becomes not move smoothly,
but also rod may be flawed or bent.
X
X
Y
Y
Space Washer
