3. One person should hold on to the MAIN UNIT while a second person should attach the
MID CROSS BAR to it using the provided 1/4-20 X 3” screws. Use a cardboard block
provided with the unit to prop up the unit while attaching the MID CROSS BAR. Have a
second person hold the unit from falling over while attaching the MID CROSS BAR. The
anti-skid tape of the MID CROSS BAR should be pointing to the ground. Insert screws
with 1” OD fender washer from the bottom up through the MID CROSS BAR so the
threads protrude from the MID CROSS BAR upwards. Fasten provided 0.25-20 nut onto
protruding thread.
CAUTION: Leaving the product unsupported before the unit is attached to the
MID CROSS BAR could cause the unit to fall over and cause injury and/or product
damage.
4. Attach the ADUSTABLE REAR CROSS BAR with the anti-skid tape pointing up and
adjust the two leveling feet until both touch the ground. Insert screws with 1” OD fender
washer from the bottom up through the ADJUSTABLE REAR CROSS BAR so the
threads protrude upwards. Fasten thread on top with 0.25” washer and 0.25-20 nylon nut.
Use the cardboard block again for wrench clearance.

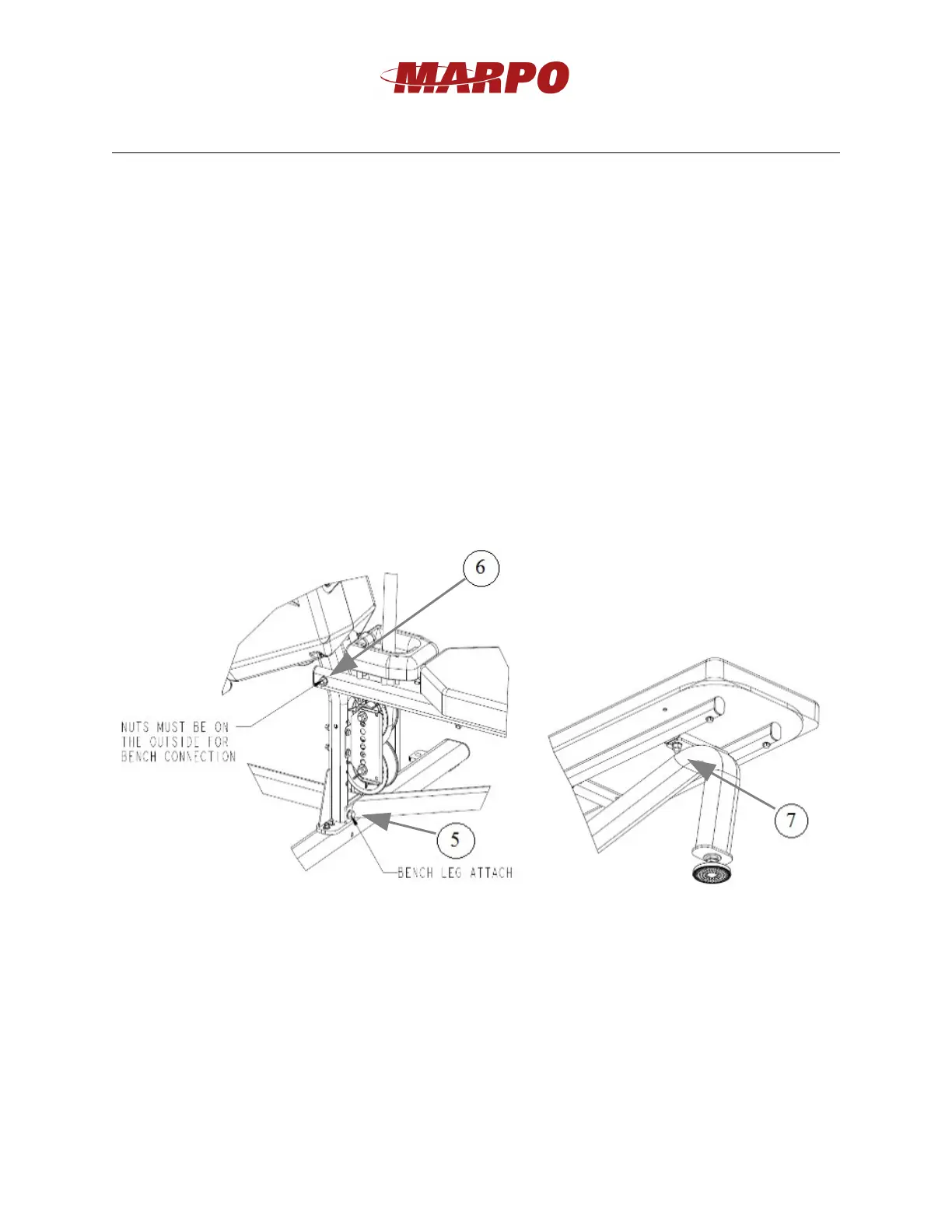

5. As shown above & left, attach the BENCH LEG to the bottom holes on the 2 uprights of
the MAIN UNIT. Do NOT connect to the MID CROSS BAR. Leave the bolts loose until
the BENCH gets installed in the next step.
6. Now attach the BENCH to the MAIN UNIT. Ensure the nuts for this connection are on
the outside as shown above. This will protect the rope from getting snagged on the end
threads of the screws.
7. Connect the back end of the BENCH to the BENCH LEG as shown above/right. After
this connection is made tighten all screws for BENCH LEG and BENCH.
3
For BENCH connection to MAIN UNIT,
ensure the nuts are on the outside to
protect rope from getting damaged by the
threads on the end of the bolts
