Mars One EM-6300A - Page 23

4342
Scope A :
VERT:10.0V/DIV
HORIZ:2mS
OUTPUT:59.1825V pk-pk
Pulse Rate:148.8Hz
Scope B :
VERT:10.0V/DIV
HORIZ:100µs
OUTPUT:59.1825V pk-pk
Pulse Width:300µs
2. N MODE(Normal):
Load: 500 ohm
Pulse Rate: 150Hz
Pulse Width: 300µs

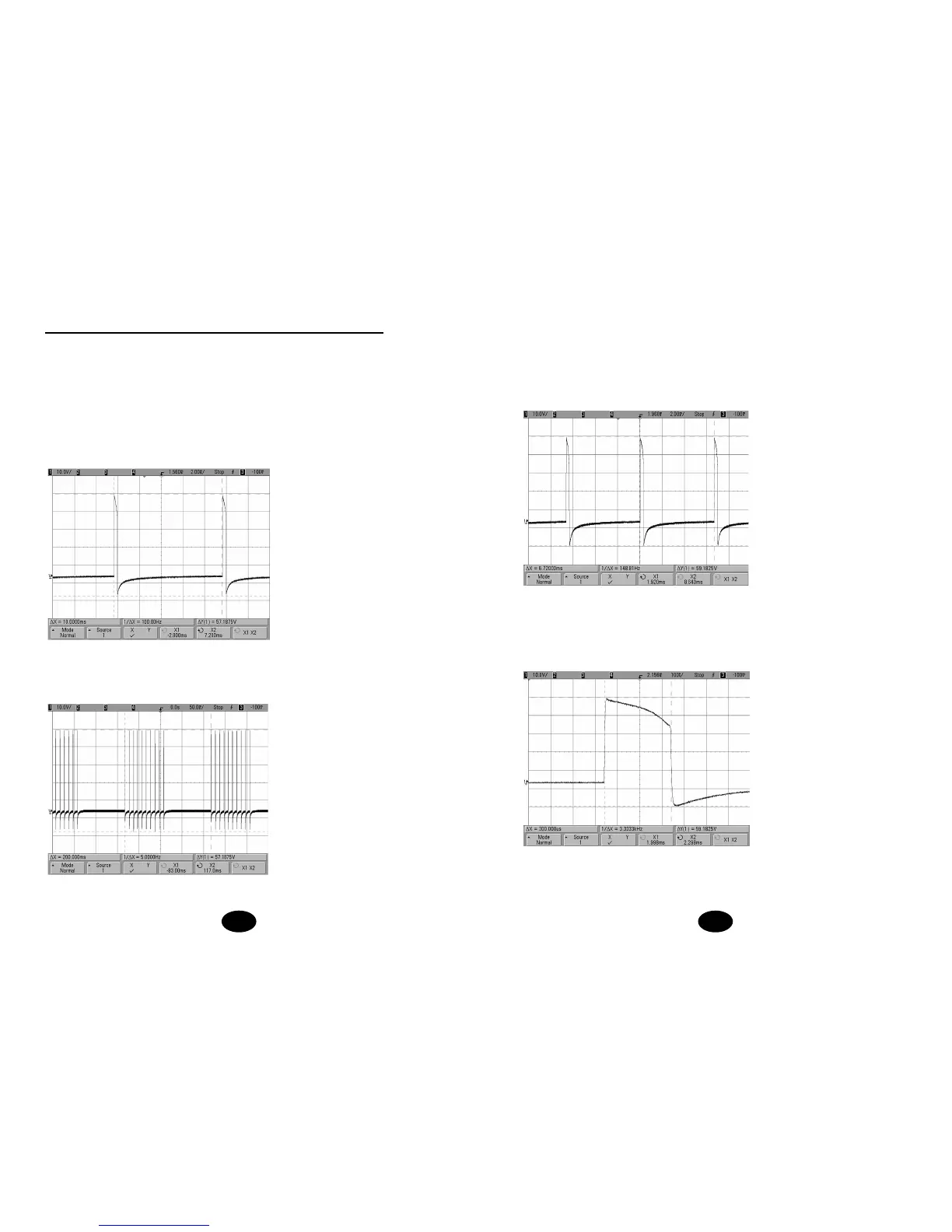

(Appendix II) Waveform of EM-6300A Digital TENS/EMS
TENS
1. B Mode(Burst)
Load: 500 ohm
Pulse Rate: 150Hz
Pulse Width: 300µs
Scope A :
VERT:10.0V/DIV
HORIZ:2mS
OUTPUT:57.1875Vpk-pk
Pulse Rate:100Hz
Scope B:
VERT:10.0V/DIV
HORIZ:50mS
Pulse Rate:5.000Hz
