Mars One EM-6300A - Page 24

4544

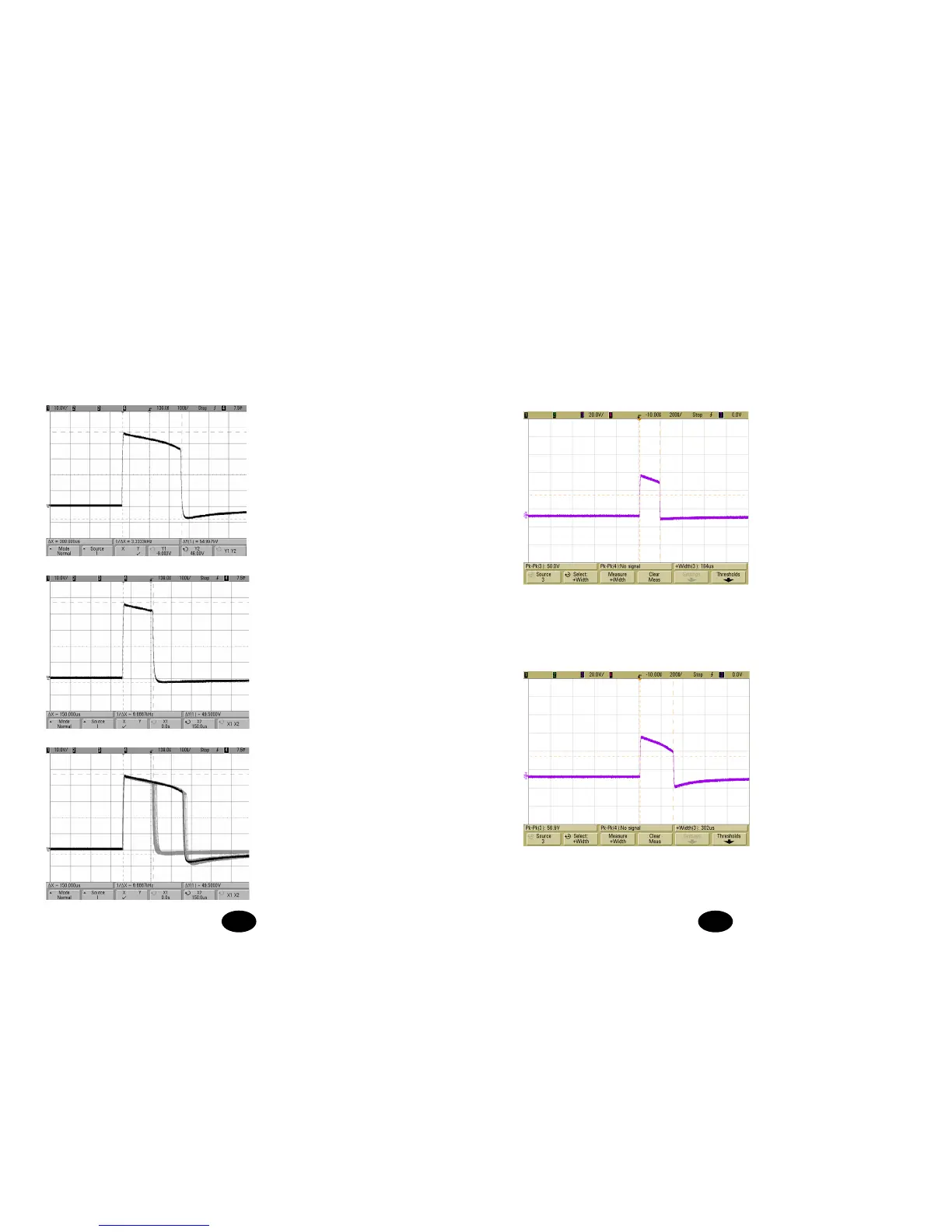

Scope A:
VERT:10.0V/DIV
HORIZ:100µs
OUTPUT:54.9975Vpk-pk
Pulse width:300µs
Scope B:
VERT:10.0V/DIV
HORIZ:100µs
OUTPUT:49.5000V pk-pk
Pulse width:150µs
3. M MODE(-50% Pulse Width & Rate Modulation):
Load:500 ohm
Pulse Rate:150Hz
Pulse Width:300µs
Scope C:
Modulation: -50%
Scope A:
VERT: 20.0V/DIV
HORIZ: 200 µs
OUTPUT: 50.0V pk-pk
Pulse width: 184 µs
Scope B:
VERT: 20.0V/DIV
HORIZ: 200 µs
OUTPUT: 56.9V pk-pk
Pulse width: 302 µs
4. S1 MODE(-40% Pulse Width Modulation):
Load: 500 ohm
Pulse Rate: 150Hz
Pulse Width: 300 µs
