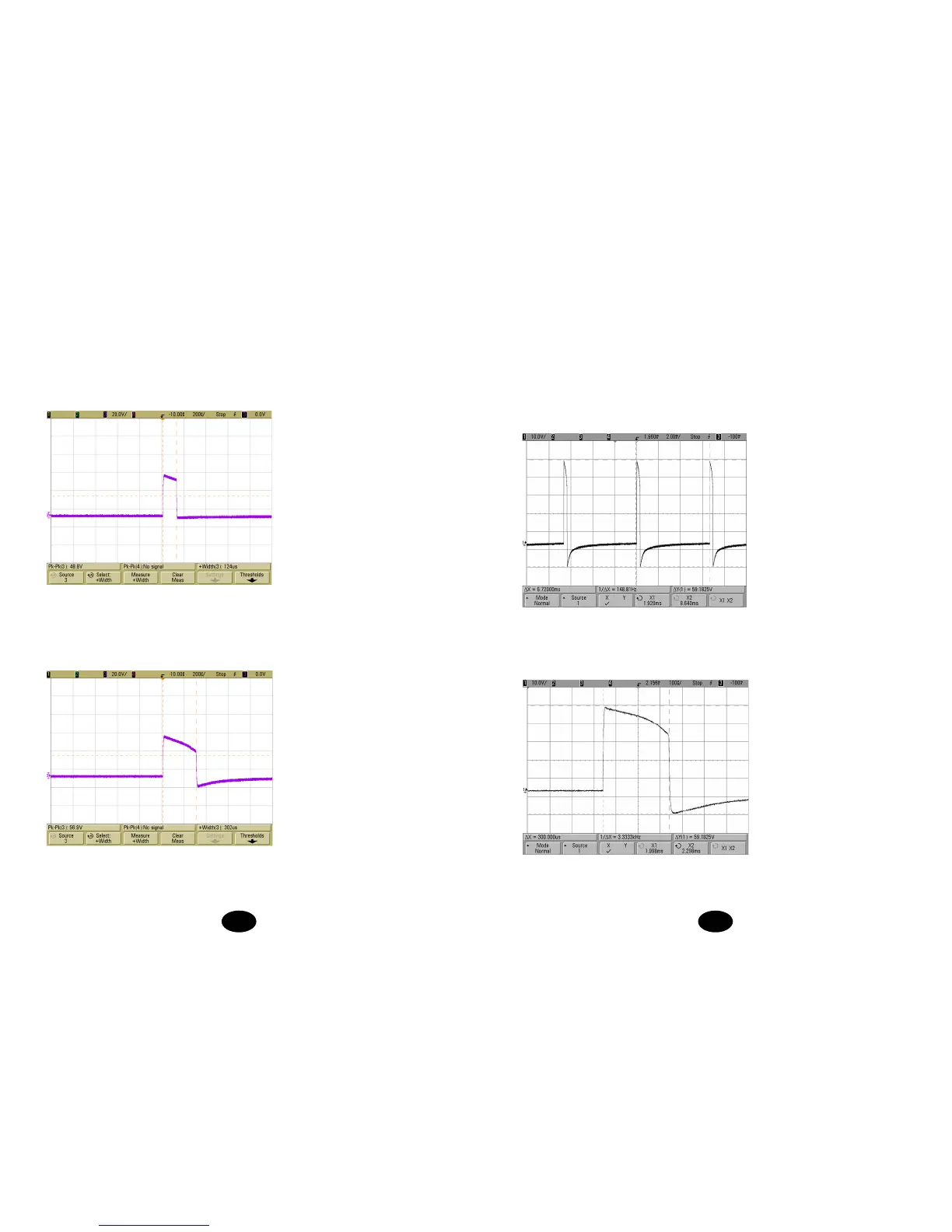

Scope A:
VERT: 20.0V/DIV
HORIZ: 200µs
OUTPUT: 48.8Vpk-pk
Pulse width: 124µs
Scope B:
VERT: 20.0V/DIV
HORIZ: 200µs
OUTPUT: 56.9Vpk-pk
Pulse width: 302 µs
5. S2 MODE(-70% Pulse Width Modulation):
Load: 500 ohm
Pulse Rate : 150Hz
Pulse Width: 300µs
Scope A:
VERT:10.0V/DIV
HORIZ: 2mS
OUTPUT:59.1825V pk-pk
Pulse Rate:148.8Hz
Scope B:
VERT:10.0V/DIV
HORIZ:100µs
OUTPUT:59.1825V pk-pk
PulseWidth:300µs
EMS
1. C MODE :
Load: 500 ohm
Pulse Rate : 150Hz
Pulse Width: 300 µs
