48

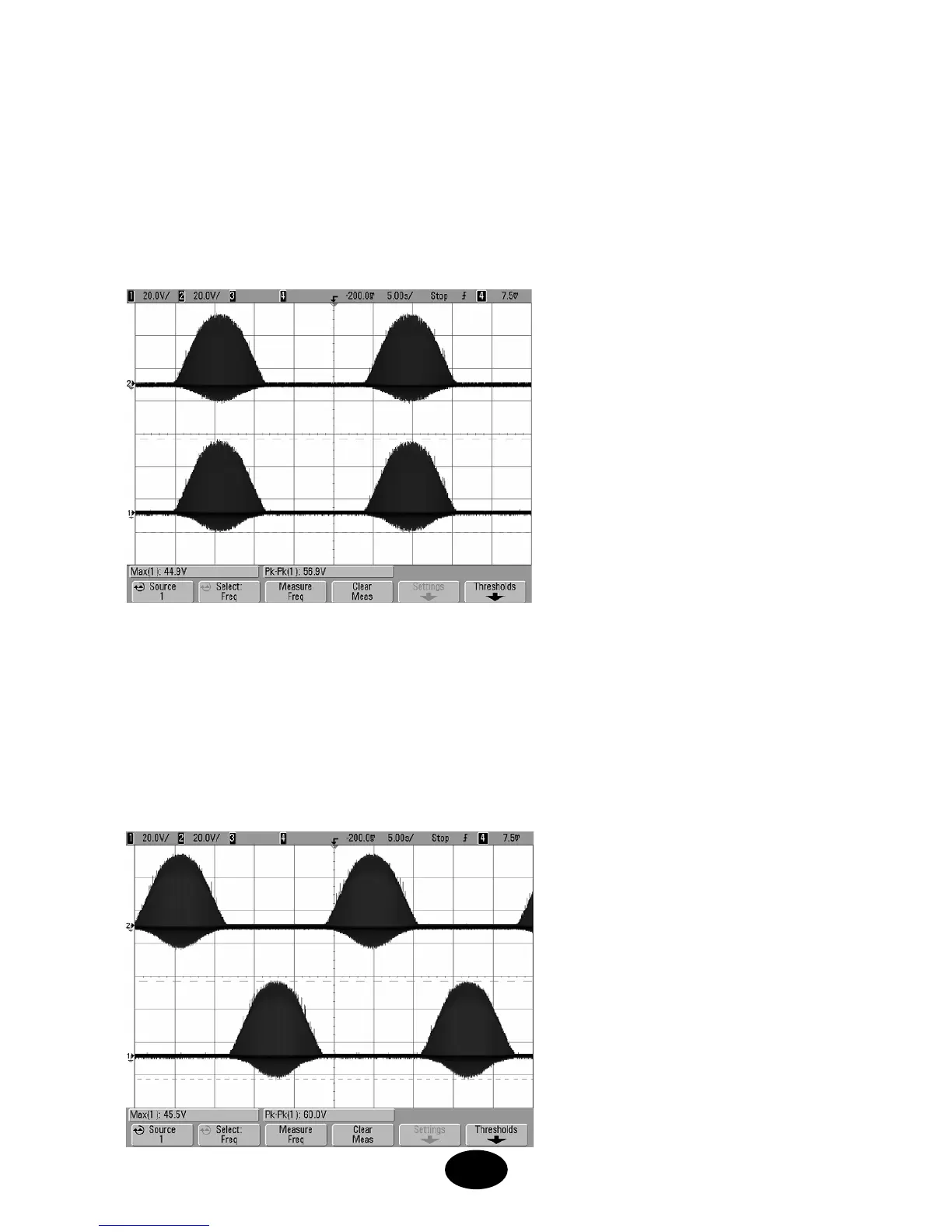

2. S MODE(Synchronous):
Load:500 ohm
Pulse Rate:150Hz
Pulse Width:300µs
Contratction Time:12 Sec
Relation Time:12 Sec
Ramp Time:6 Sec
3. A MODE(Alternate):
Load: 500 ohm
Pulse Rate :150Hz
Pulse Width:300µs
Contratction Time :12 Sec
Relation Time:12 Sec
Ramp Time: 6 Sec
