The provided document outlines the user interface and actions guide for a device, likely a printer, referred to as "MARSH." The device features a user-friendly interface with different modes and indicators to manage its operation and settings.

Function Description

The MARSH device appears to be a printer, given the presence of settings like "Print heat," "Print force," and "Print orientation," as well as "Ribbon status." It allows users to control various printing parameters and monitor the device's operational status. The interface is designed to provide clear feedback on the device's state and facilitate adjustments to printing settings.

Usage Features

The device's user interface is divided into two main modes: "Run Mode" and "Settings Mode," accessed via a "Mode Button."

Run Mode:

In Run Mode, the device displays the status of three key indicators:

Ribbon status (I):
- Off: Indicates good ribbon status.
- Amber: Indicates a warning related to the ribbon.
- Red: Indicates an "out of ribbon" or "ribbon fault" condition.
App/phone Bluetooth connection (II):
- Off: Indicates no Bluetooth connection.
- Blue flashing: Indicates the device is attempting to connect via Bluetooth.
- Solid blue: Indicates a successful Bluetooth connection.
App status details (III):
- Off: Indicates good app status.
- Amber: Indicates a warning related to the app.
- Red: Indicates an app fault.

The "Vary Button" in Run Mode serves multiple functions:

Switches the device between online and offline states.
Clears any active faults.
Initiates a test print.

Settings Mode:

In Settings Mode, the indicators display the level of the active "User Settings." The "Mode Button" cycles through three user settings:

Print heat (User Setting I): Controls the heat applied during printing.
Print force (User Setting II): Controls the force applied during printing.
Print orientation (User Setting III): Controls the orientation of the print.

Each user setting has corresponding "Setting Levels," indicated by green lights:

Level I (Green): Normal/default setting.
Level II (Green): Higher setting.
Level III (Green): Highest setting.

The "Vary Button" in Settings Mode is used to adjust the "Setting Level" for the currently active user setting.

Indicators:

The device has a central display area with indicators for "Ribbon status (I)," "App/phone Bluetooth connection (II)," and "App status details (III)." Below these, there are indicators for "User Settings" (Print heat, Print force, Print orientation), which are active when illuminated. A "Status Indicator" shows:

Green circle: Running.
Red circle with a line: Stopped.

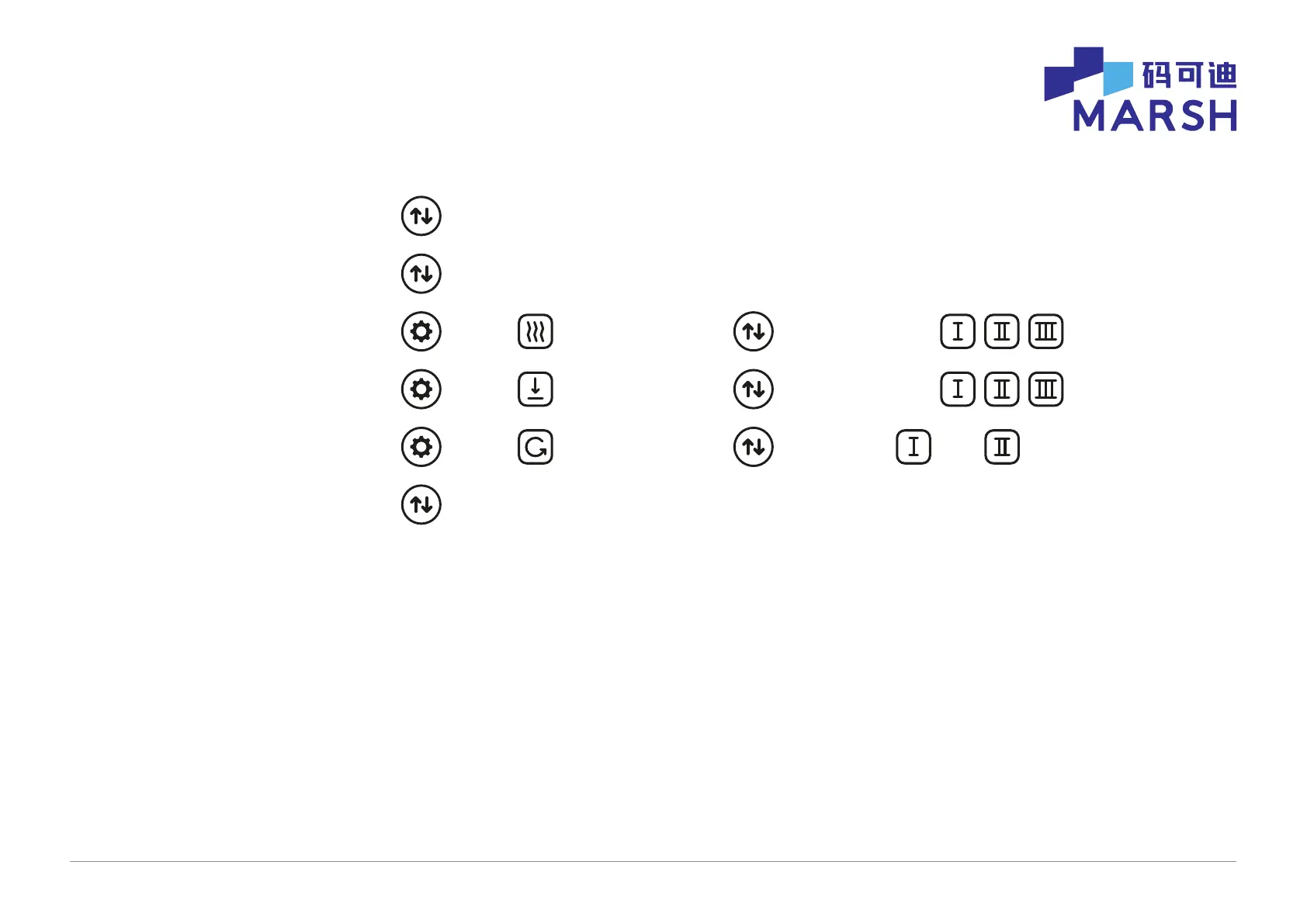

Actions Guide:

The "Actions guide" provides step-by-step instructions for common operations:

Online/offline: Press and hold the "Vary Button" (up/down arrow icon).
Test print: Press the "Vary Button."
Change heat setting:
1. Press the "Mode Button" until the "Print heat" icon (wavy lines) illuminates.
2. Then, press the "Vary Button" to cycle through levels I, II, and III.
Change force setting:
1. Press the "Mode Button" until the "Print force" icon (down arrow) illuminates.
2. Then, press the "Vary Button" to cycle through levels I, II, and III.
Change print orientation:
1. Press the "Mode Button" until the "Print orientation" icon (circular arrow) illuminates.
2. Then, press the "Vary Button" to cycle between level I and level II (180 rotated).
Clear a fault: Press the "Vary Button."

Maintenance Features

While the document doesn't explicitly detail maintenance procedures, the "Ribbon status" indicator (Amber for warning, Red for out of ribbon/fault) suggests that ribbon replacement is a key maintenance task. The "Clear a fault" function, accessible via the "Vary Button," indicates a basic troubleshooting capability to resolve operational issues. The "App status details" also provide insights into potential software-related issues that might require attention. The ability to adjust "Print heat" and "Print force" could also be considered a form of calibration or fine-tuning, which might be necessary for optimal print quality over time or with different materials.
