VDA-104-3GS Manual

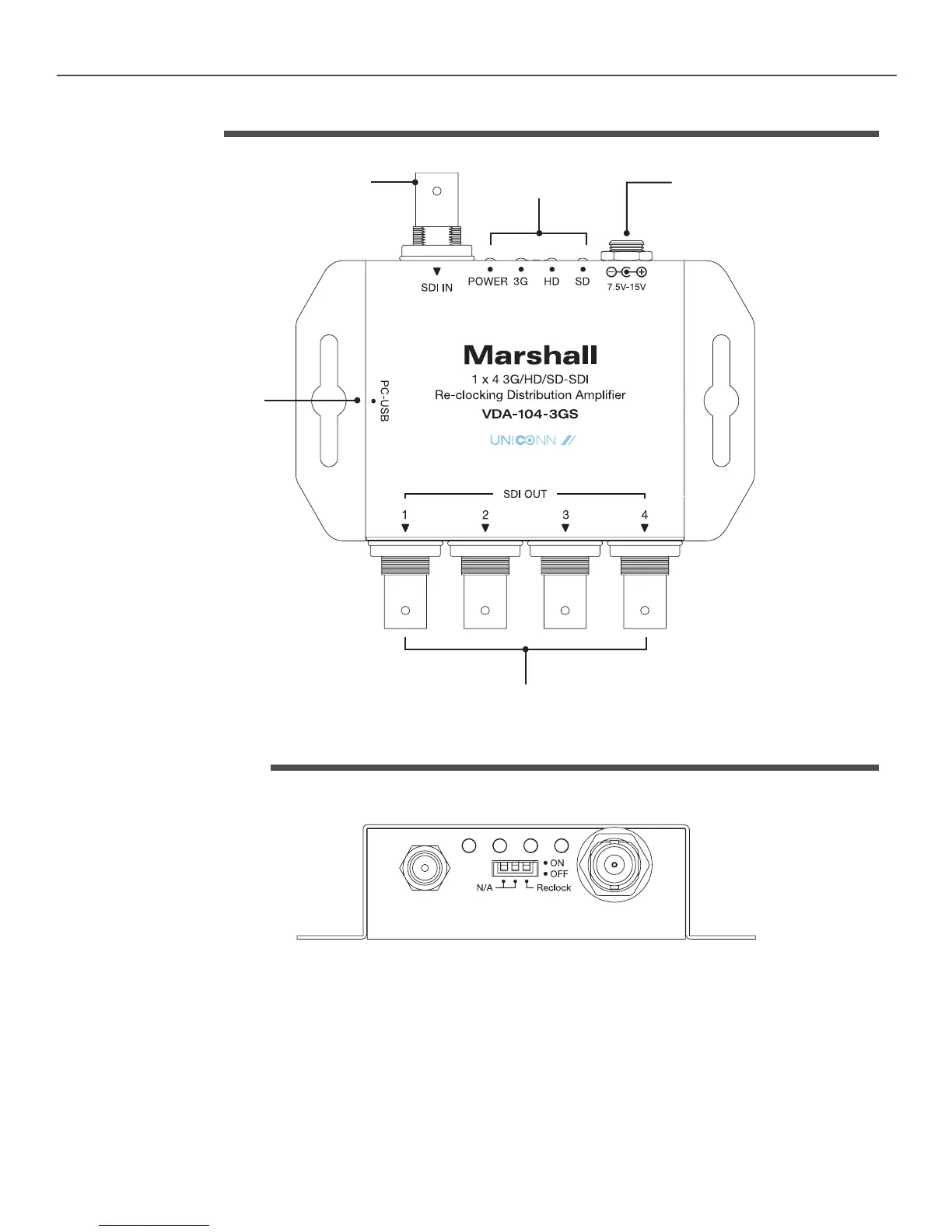

LAYOUT
DIP SWITCH
SDI IN LED indicators
SDI OUT
Power jack adapter
USB port
(for future rmware
upgrade)
• ReclockON: The VDA-104-3GS retransmits the incoming SDI signal after
reclocking/reshaping and level boosting.
• ReclockOFF: The VDA-104-3GS retransmits the incoming SDI signal without reclocking
or level boosting.
• N/A:These two switches have no function.
