1. Electrical system summarize
The electrical system includes battery, DC magnetoelectricity motor, controller, electric control wiring harness,
electricity capacity display, direction switch, function bar, speed bar and charger; Additional parts are front lights,
turning lights and rear lights.
Attention: the life of the car related to the status in earlier using. Please charge the battery full before using the
cart in right way.
1.1 Battery
The battery is in series by two DJM12V45AH lead-acid battery and supply the power DC24V to the cart, the
batteries are placed under the seat and inside the cover. Refer to the photo 1.

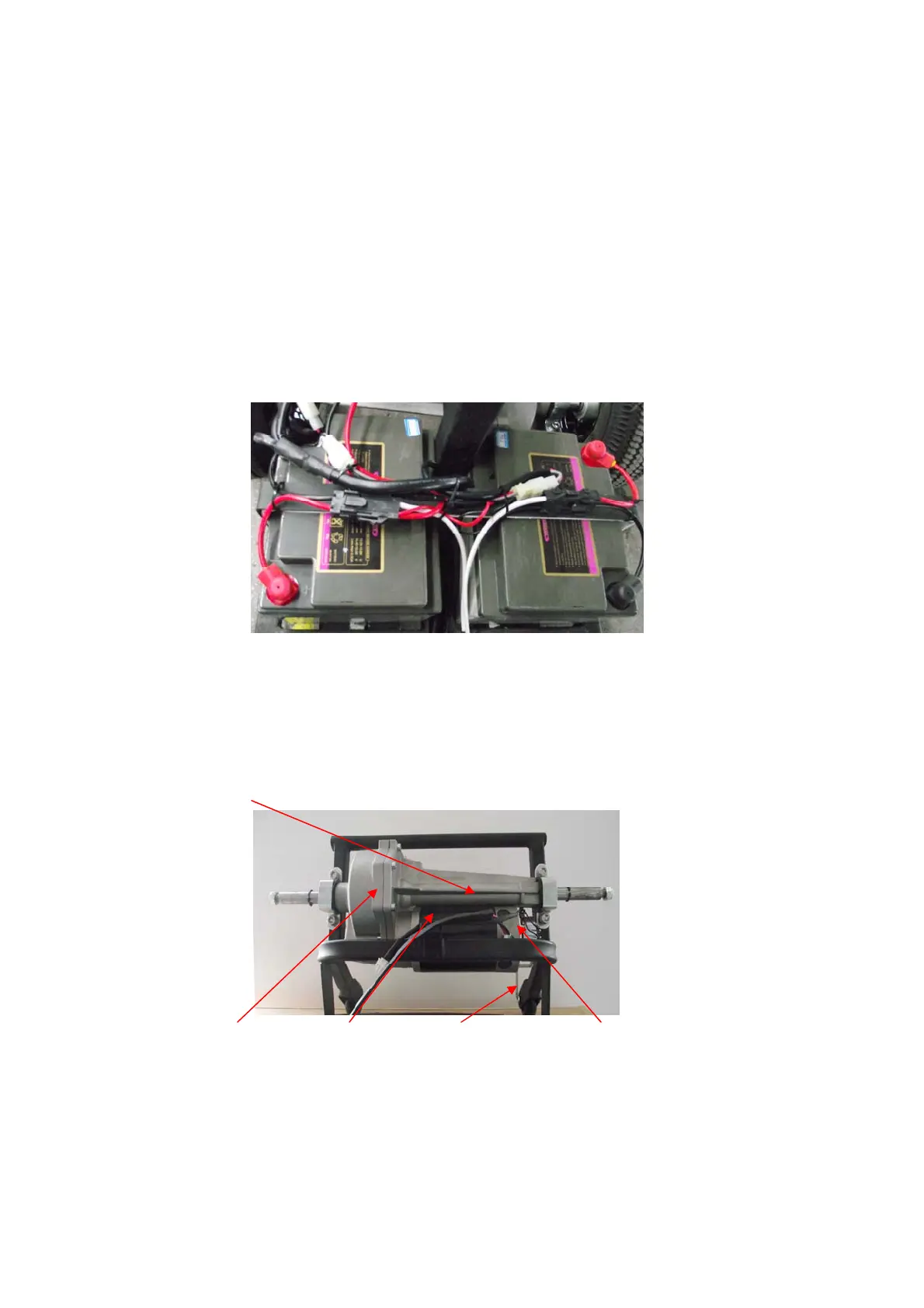

(Photo 1. exterior of battery)
1.2 DC magnetoelectricity motor
As the power driver of the cart, motor is a 800W which connected with the rear bridge, also has
magnetoelectricity brake.( refer to photo 2)
rear bridge
gear-box motor brake handle bar magnetoelectricity brake
(Photo2.rear bridge motor)
