7-18
INSPECTION AND MAINTENANCE
77PH0-74E

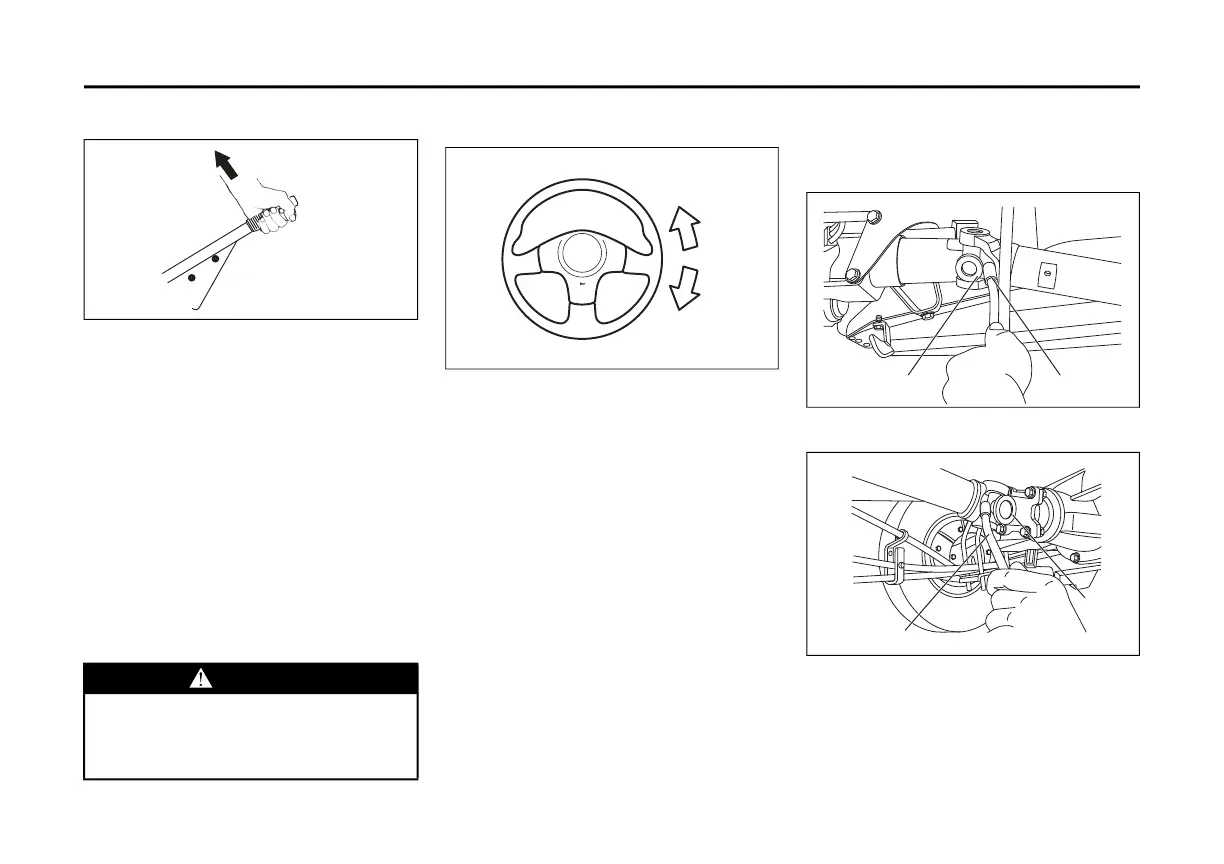

Parking Brake
77PM702
Ratchet tooth specification
6th – 9th teeth
Lever pull force (1):
200 N (20 kgf, 44 lbf)
Check the parking brake for proper adjust-
ment by counting the number of clicks
made by the ratchet teeth as you slowly pull
up on the parking brake lever to the point of
full engagement. The parking brake lever
should stop between the specified ratchet
teeth and the rear wheels should be
securely locked. If the parking brake is not
properly adjusted or the brakes drag after
the lever has been fully released, have the
parking brake inspected and/or adjusted by
your
authorised MARUTI SUZUKI COM-
MERCIAL workshop
.
Steering
77PH042
Steering wheel play “c”:
0 – 30 mm (0.0 – 1.2 in.)
Check the play of the steering wheel by
gently turning it from left to right and right
to left, with wheels in straight ahead posi-
tion and engine in OFF condition. Measure
the distance that the steering moves
before you feel slight resistance. The play
should be between the specified values.
Check that the steering wheel turns easily
and smoothly without rattling by turning it
all the way to the right and to the left while
driving very slowly in an open area. If the
amount of free play is outside the specifi-
cation or you find anything else to be
wrong, an inspection must be performed
by your authorised MARUTI SUZUKI
COMMERCIAL workshop.
Propeller Shaft Universal
Joint
Front
77PM703
Rear
77PM704
Lubricate propeller shaft universal joint (1)
(front & rear) as per the service schedule.
To lubricate the propeller shaft universal
joint you should use grease gun (2) and
specified grease NLGI GRADE 2.
WARNING
• Parking Brake may not be effective
in case vehicle is over-loaded. Use
additional chocks to hold the vehi-
cle.
EXAMPLE
“c”
EXAMPLE
(1) (2)
EXAMPLE
EXAMPLE
To Next Page
