Marvin Ultimate Glider - Page 4

4/27/20 4 Ultimate Glider WOCD
19916116 Field Applied Instructions

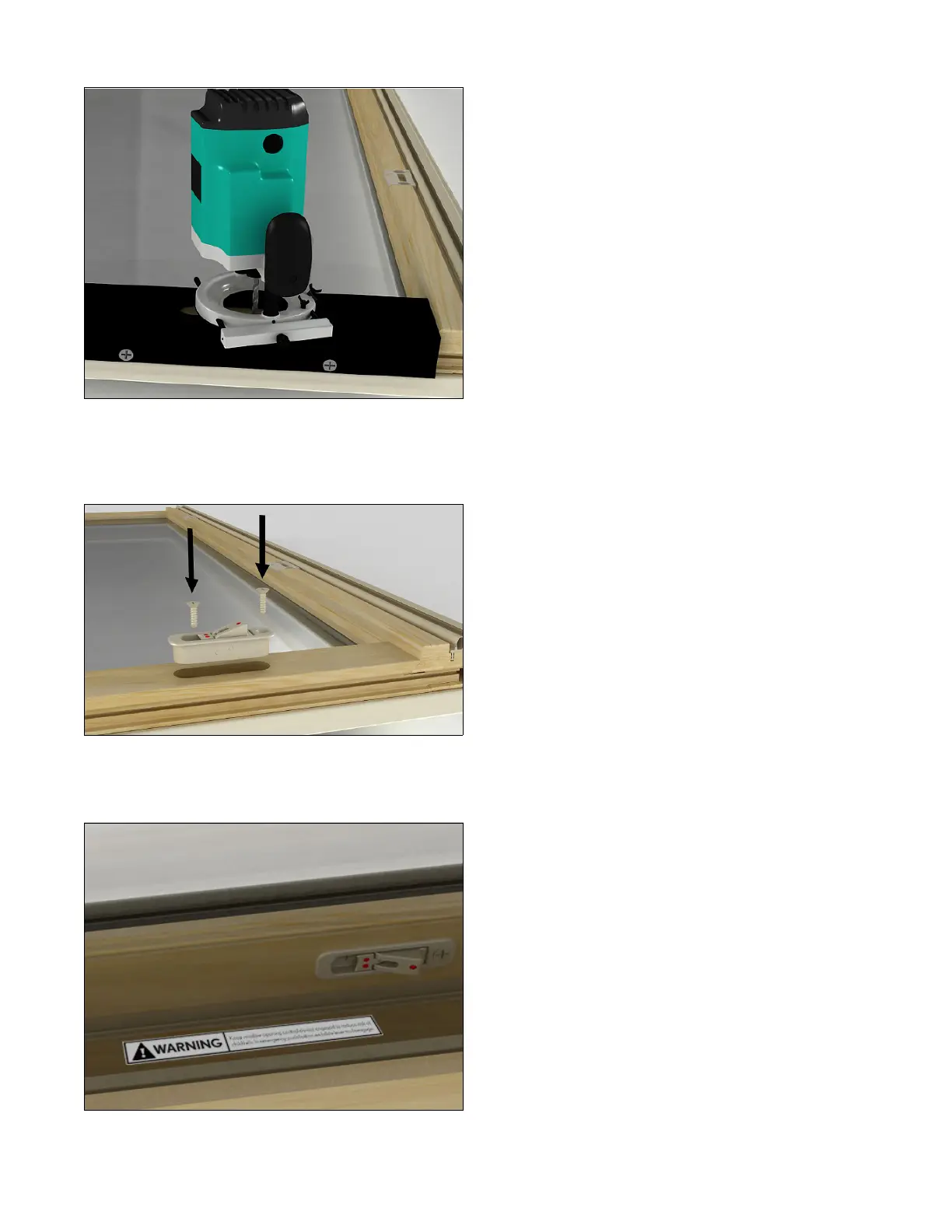

Figure 7
4. Remove the jig and clean debris and excess
material. Install the window opening control device with
the screws provided. See Figure 8.
Figure 8
5. Apply the window opening control device sticker on
the sill between the sill liner and sill track. See Figure 9.
Figure 9
