HEARTH REQUIREMENTS
Unless your heater will be standing on an un-covered fireproof floor which extends at
least as far as the minimum hearth areas shown below, it will be necessary to provide a
hearth for floor protection. See page 8 for construction details.
Having decided exactly where your heater will be installed, you will be able to establish
the size of hearth you will need. Where the minimum requirements bring the edge of
the hearth nearly to a wall, it is better to extend the hearth to meet the wall. In fact it is
sensible to increase all dimensions by moving up to the next available standard hearth
size so that precise positioning of the heater on the hearth will not be needed.
B
C
D
A
G
H
J
Gl ass
W
360 min.
Wall
Minimum dims.
for 'A' are on
page 4.
See Notes
below.

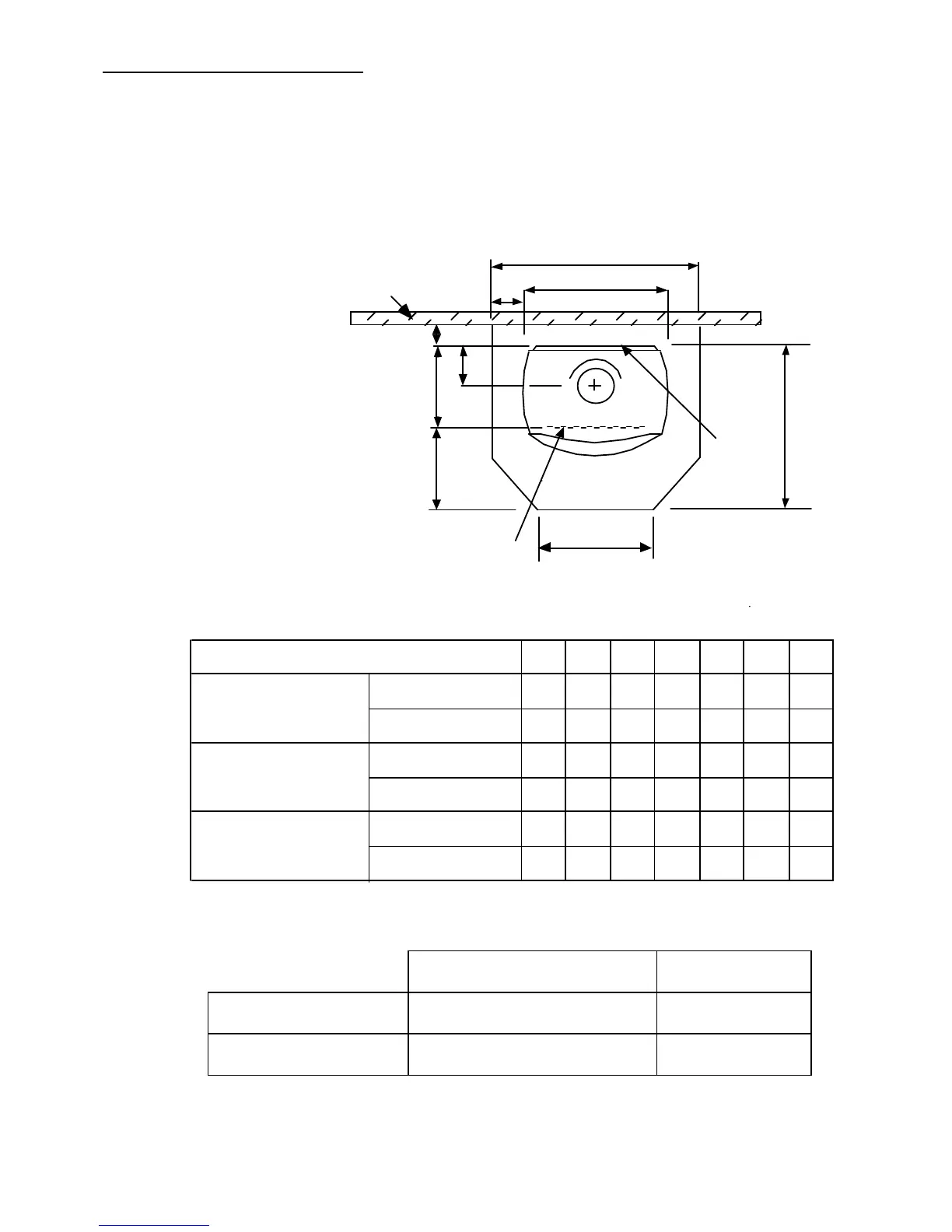

MINIMUM HEARTH EXTENSIONS (mm) WHEN THE REAR
HEAT SHIELD IS FITTED
¥
Rear
Heat
Shield
W B C D G H J
Australia
New Zealand
New Zealand
(hearth flush)
(hearth 50mm high)
Arcadia
Utopia
Arcadia
Utopia
Arcadia
Utopia
855 635 300 165 150 335 525
1075 760 425 275 150 335 525
975 680 345 225 150 335 525
1165 980 550 275 155 430 615
1065 900 470 225 155 430 615
155 430 615855 730 300 120
¥
Note. The hearth protecting a heat sensitive floor must extend behind the heater by at
least the following distances (measured from the rear heat shield):-
Arcadia Utopia
Australia 200mm 100mm
New Zealand 325mm
(or to the wall if closer)
100mm
Usually a neater installation will result if the hearth extends right up to the rear
wall, but take care not to obstruct air flow into the lower ventilating slot of any wall
shields that may be fitted.
