SAFETY
CYLINDER STOPS

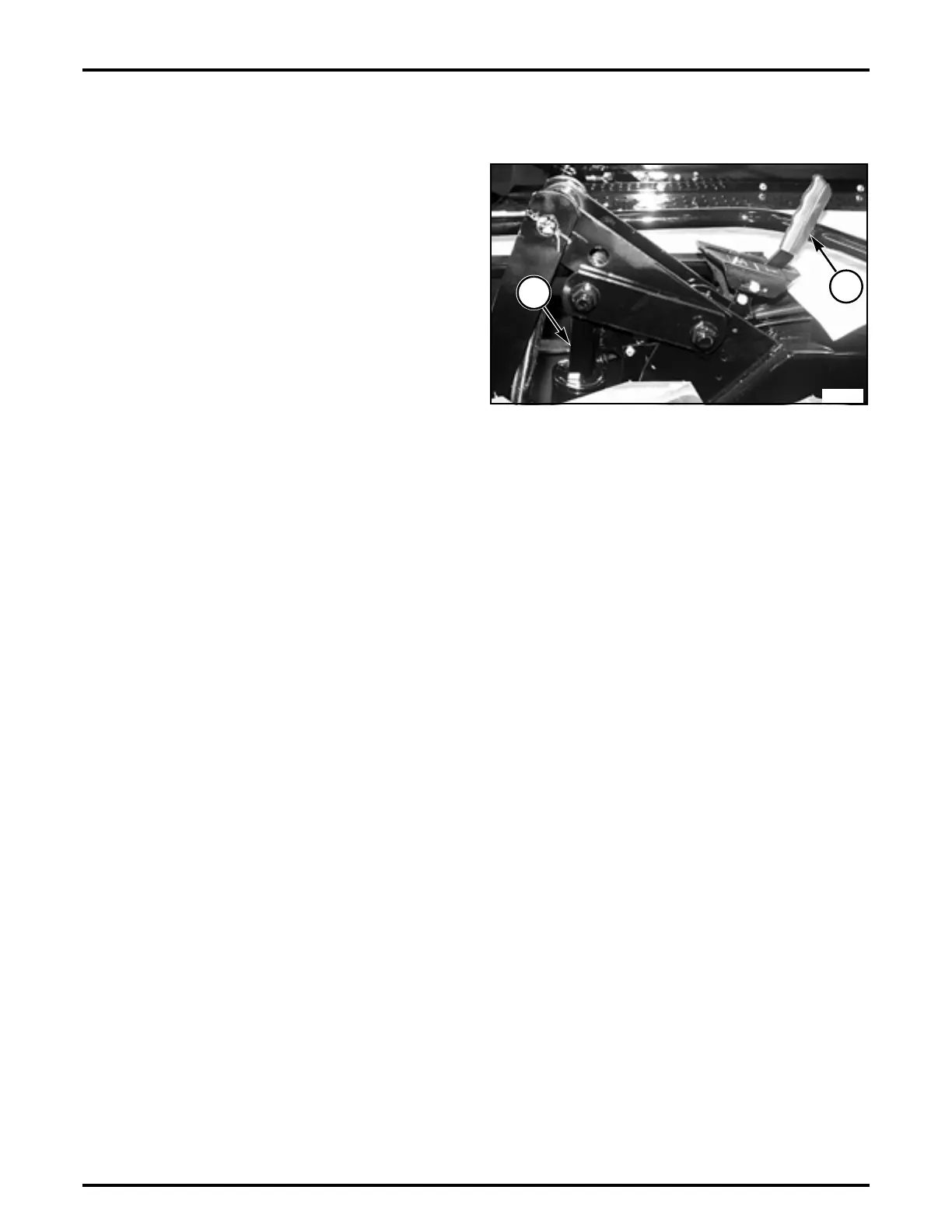

FIG. 20: Both header lift cylinders have cylinder
stops (1). The cylinder stops are activated by one lever (2)
outside the cab door.
To engage the cylinder stops, raise the header
completely. Move the lever toward the cab and then pull
back toward the rear of the machine to engage the
cylinder stops. Make sure the cylinder stops are
completely engaged in both header lift cylinders.
To disengage the cylinder stops, raise the header
completely. Move the lever toward the cab and then push
forward toward the header to disengage the cylinder
stops. Make sure the cylinder stops are completely
disengaged from both header lift cylinders.
ACCUMULATORS
The accumulator is charged with dry nitrogen. Use only
dry nitrogen when charging the accumulators. DO NOT
use air or oxygen or an explosion will occur.
DO NOT drop the accumulators. Charged accumulators
contain nitrogen under pressure. If the charging valves
break away from the accumulators, the escaping nitrogen
will propel the accumulators at a high rate of speed.
m
DANGER: Charging or replacing the
accumulators must be performed by an
authorized dealer only.
FIG. 20
1
K825195
2
