CNC:
Index Service Part # File Name
Description
Qty
1 A00-0013 TEKT-0009 5MM Bushing 8
2 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 4
3 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 4
4 A00-0045 TEKT-0004 Side Window Slider Bracket 1
5 A00-0046 TEKT-ASM-002R Side Window Hinge Right 2
6 A00-0056 TEKT-0020 Side Window Latch, L60775 1
7 A00-0058 CARRIAGE_BOLT-5-16X1 Bolt, Carriage, 5/16"x 1", YD 1
8 A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD 1
9 A00-0119 WASHER_1-4 Washer, Flat, 1/4" 2
10 M03-0002 MFGC1705-027 Side Window Glass 1
11 M03-0008 MFGC1705-065_R Side Window Seal 1

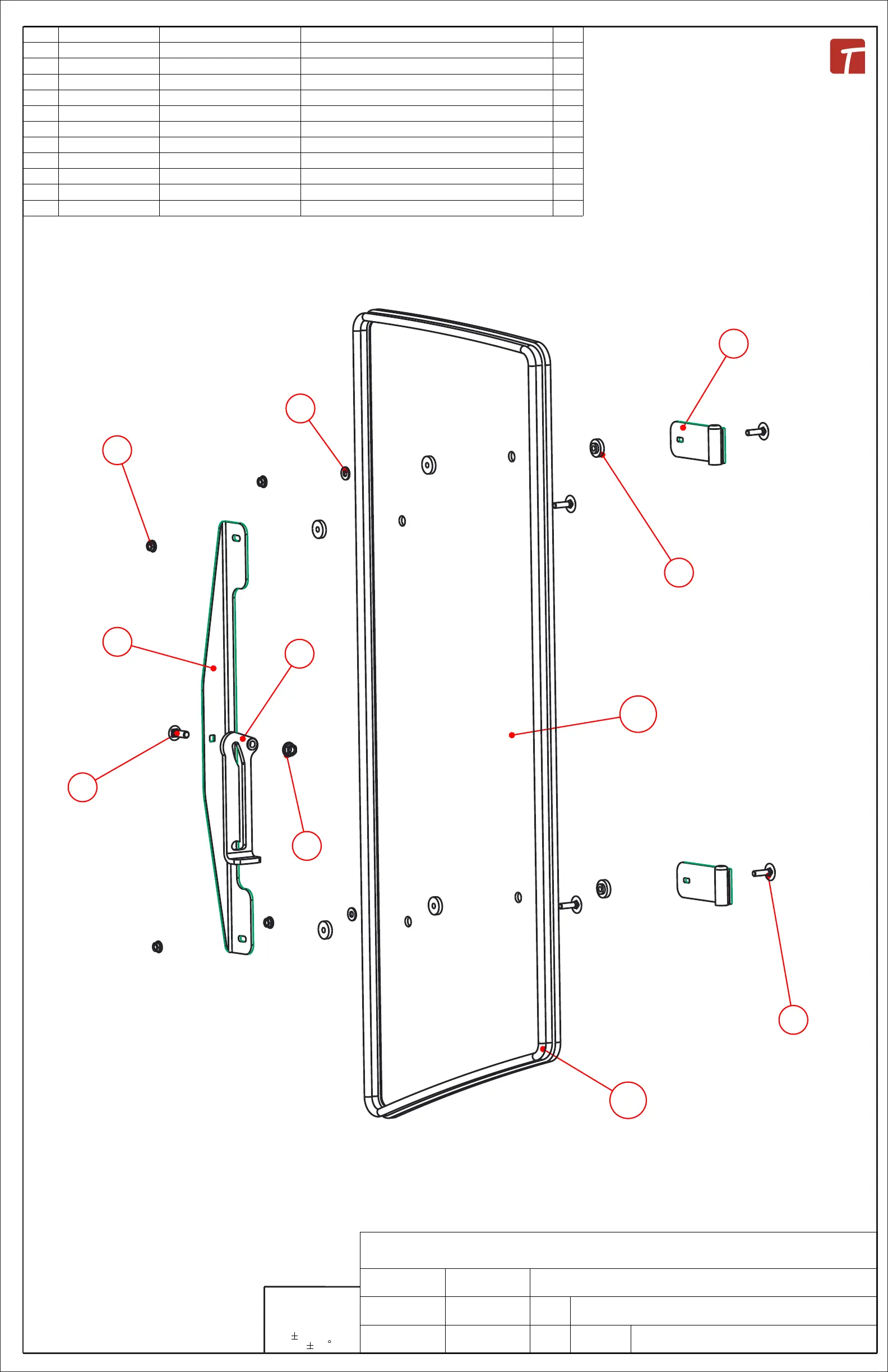

1 req Right Side Window Assembly
Daryl Furkalo
2014-09-23 Imp.
MFGC1705-ASM-13R_OP
B
SCALE 0.250
1
2
3
4
5
6
7
8
9
10
11
