General Information
01-2 4283475M2
Serial Number

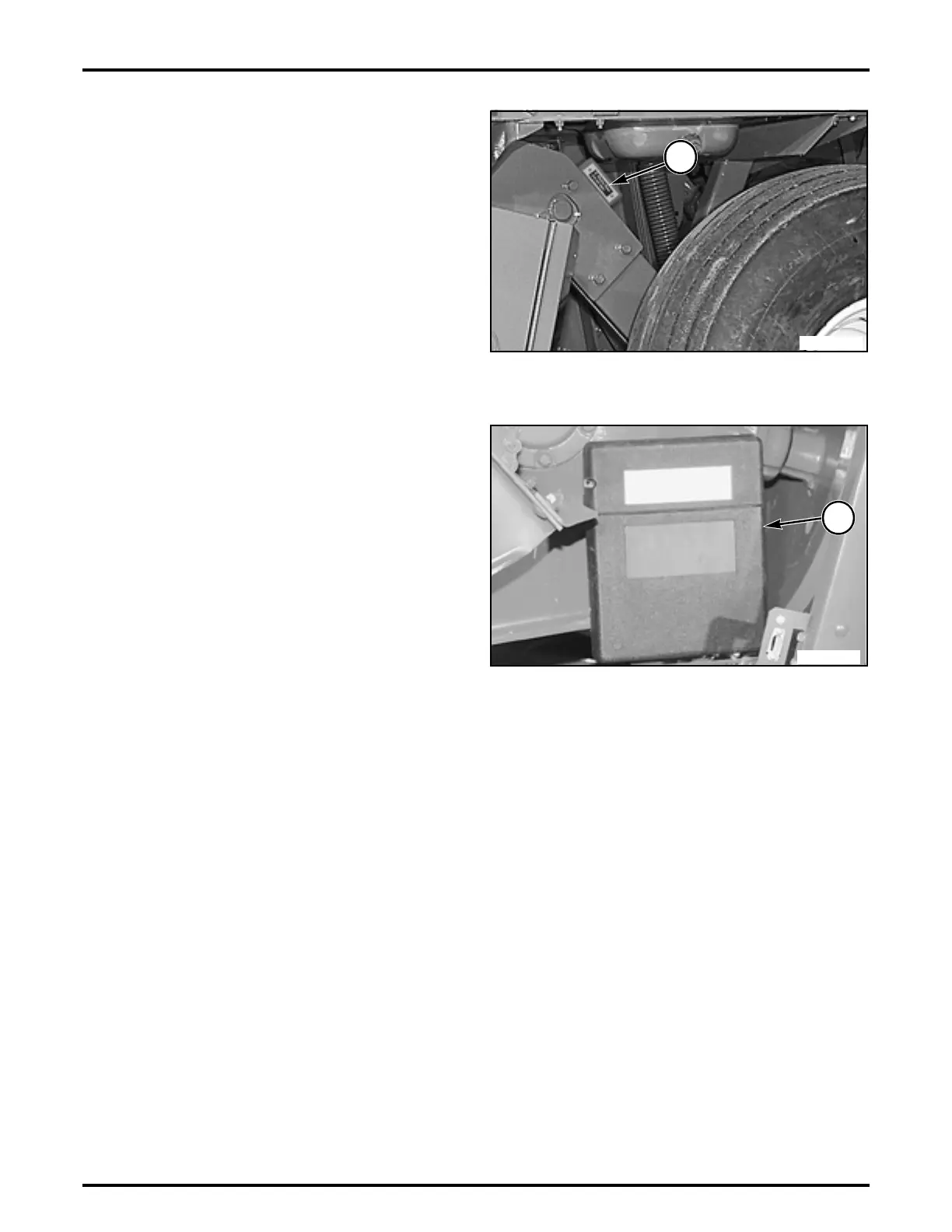

FIG. 1: Each baler has a model and serial number on
the serial number plate (1). The baler serial number plate
is located on the left-hand side of the baler.
Operator's Manual Container
FIG. 2: The Operator's Manual container (1) is located
under the access panel on the right-hand side of the
baler. Keep the Operator's Manual with the baler at all
times. Put the maintenance manual in the Operator’s
Manual container.
Description
Drive Train
From the baler clutch, the power is sent through the
flywheel and shearbolt. The shearbolt drives the gearbox,
which operates the baler’s mechanisms. A crank arm on
each side of the gearbox drives the plunger. The
right-hand crank arm drives an auxiliary shaft that drives
the stuffer, the pickup, the knotters, and the needles.
FIG. 1
FIG. 2
