15. MAINTENANCE
Removal
1. Rotate rear wheel to place master link(3) in accessible
position between two sprockets.

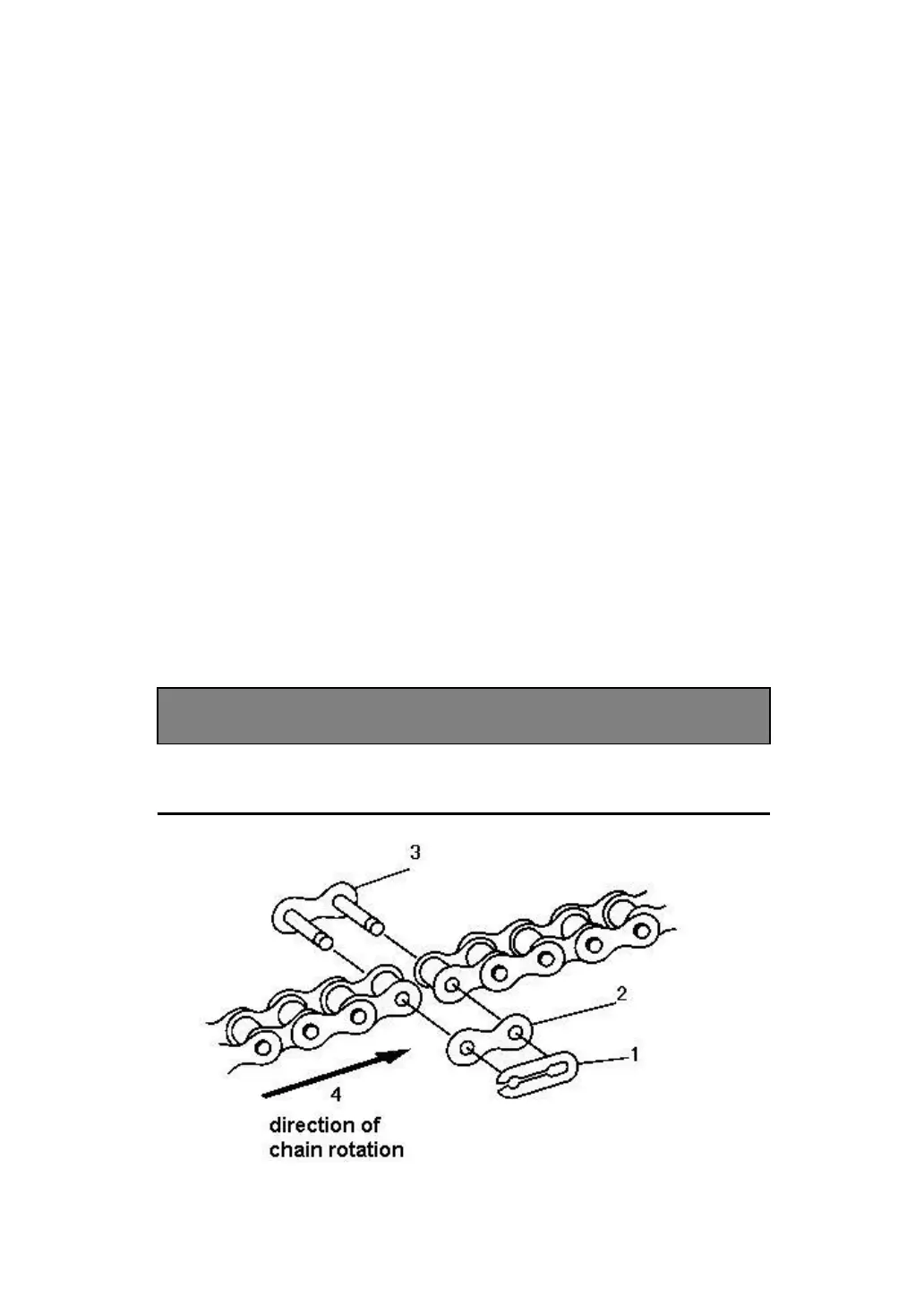

2. Slide the retaining clip (1) of the master link(3) and remove
clip and side plate(2).
3. Slide master link out and remove the chain.
Installation chain
1. Slide the pin portion of the master link(3) in to each end of
chain to be connected.
2. Slide the side plate(2) portion of the master link on to the pins.
3. Slide the retaining clip(1) on to the pins until clip snaps
securely in to place.
CAUTION
The master link should be installed with the open end of the
retaining clip (1) facing away from direction of chain rotation(4).
