15. MAINTENANCE
Chain
Use proper lubricants
Apply proper type spray-on chain lubricant thoroughly inside and
outside plates and rollers of chain. Move ATV as needed to
access entire chain.
Inspection
1. At the center point between the two sprockets, push and pull
the chain and note total flex. If flex is more than 1/2’’(12mm),
adjust chain. Refer to Adjustment.
2. Inspect chain sprocket for wear.
3. if sprockets are worn, replace sprockets and chain as a set.
4. Replace guards if damaged.
Adjustment

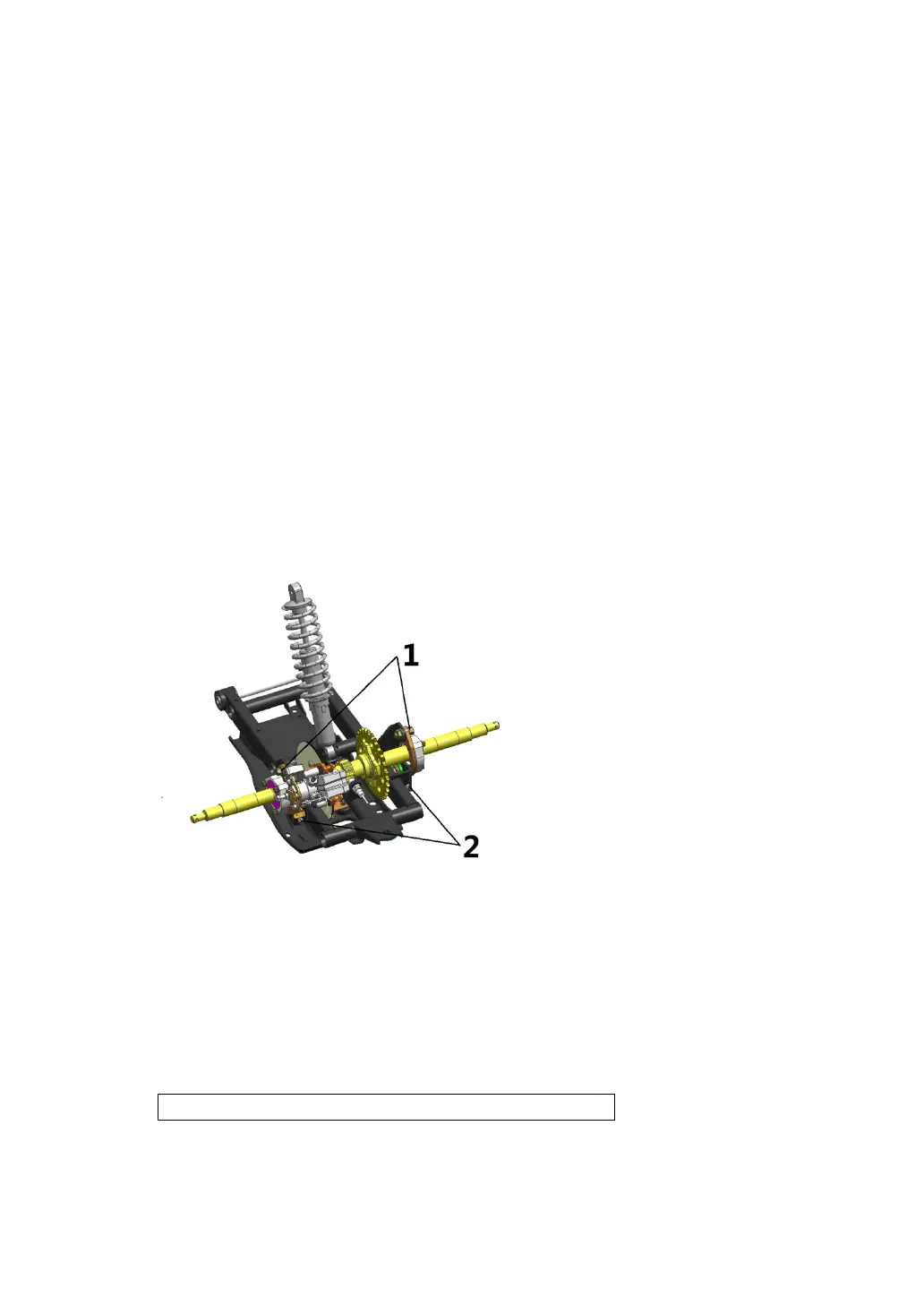

1.Loosen, but do not remove, the four mounting bolts(1).
2. Turn the chain adjuster (2) to obtain 1/4(6mm)’’ to 3/8’’(10mm)
chain flex. To tighten the chain, turn the chain adjuster(2)
clockwise. To loosen the chain, turn the chain adjuster(2) count
clockwise and push the rear axle forward.
3. Securely tighten the mounting bolts(1).
Torque Specifications: 63-66Ft.Lbs (85-90N.m)
4. Recheck the chain tension. Refer to Inspection.
