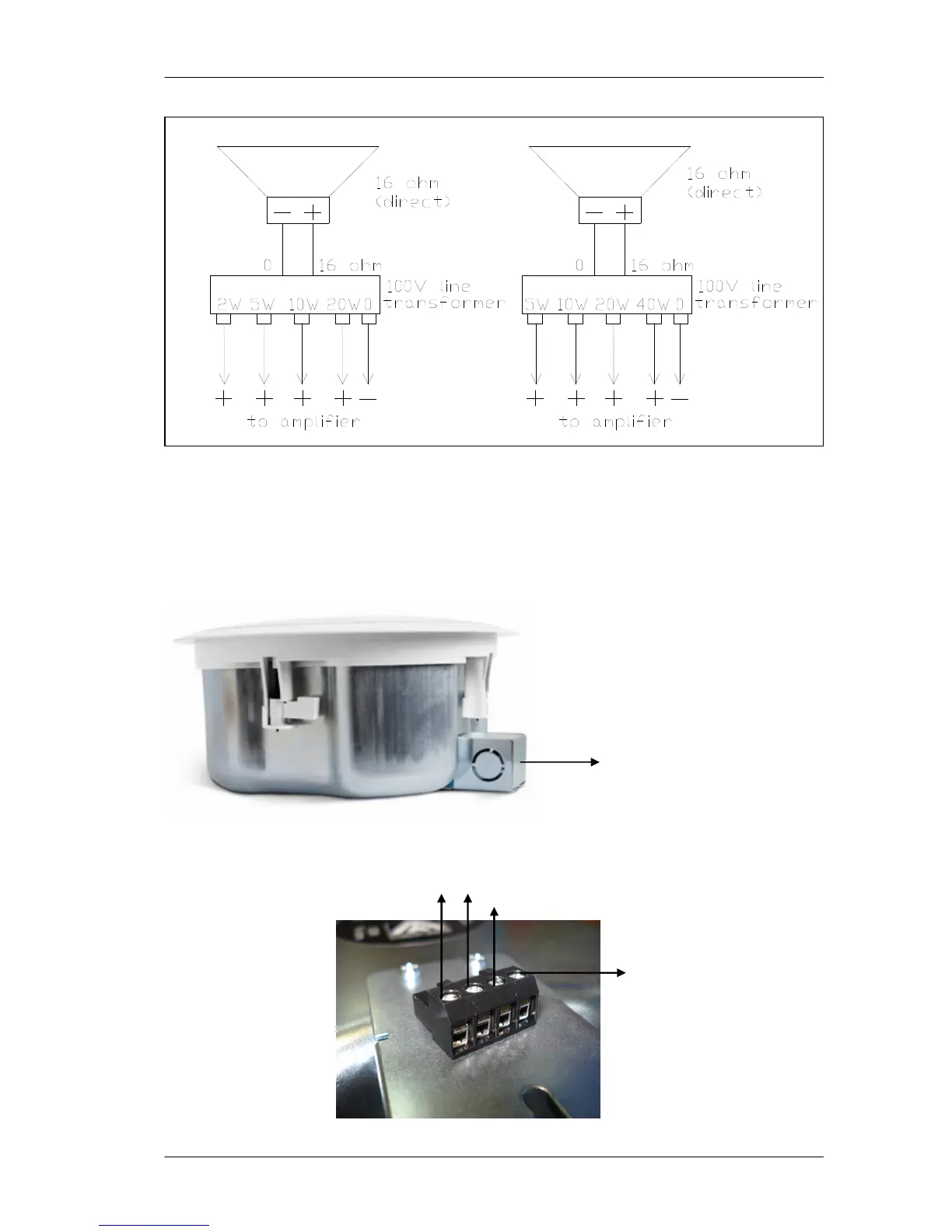

Fig.3. CS6FR wire connection (with TF-100 transformer). Left first generation
transformer, right second generation transformer
2.3. Connection description (CS6MC/T)
• Remove the input terminal cover
Remove metal cover
• Connect the speaker wires to the appropriate connector terminals
PIN 1 PIN 2
PIN 3
PIN 4
