Master Audio
Joker Series (Passive). Version 1.4 Jan14 11
3.6. Rotatable logo
JK26, JK10, JK12 and JK15 model logos can be rotated.
3.7. Flying
Only experienced people should fly speaker cabinets. Extreme care should be taken
to assure the load bearing capabilities of the structures where the cabinets will be
placed.
Hanging hardware (as chains, eyebolts, lock pins...) should be regularly inspected
and replaced if in doubt.
WARNING!!! DO NOT SUSPEND THE CABINETS FROM THE HANDLES!!!!
3.7.1. JK26, JK10, JK12 and JK15 horizontal flying with “U” bracket
The JK26 may be wall mounted by the SP26 “U” bracket accessory.
The JK10 may be wall mounted by the SP10 “U” bracket accessory.
The JK12 may be wall mounted by the SP12 “U” bracket accessory.
The JK15 may be wall mounted by the SP15 “U” bracket accessory.

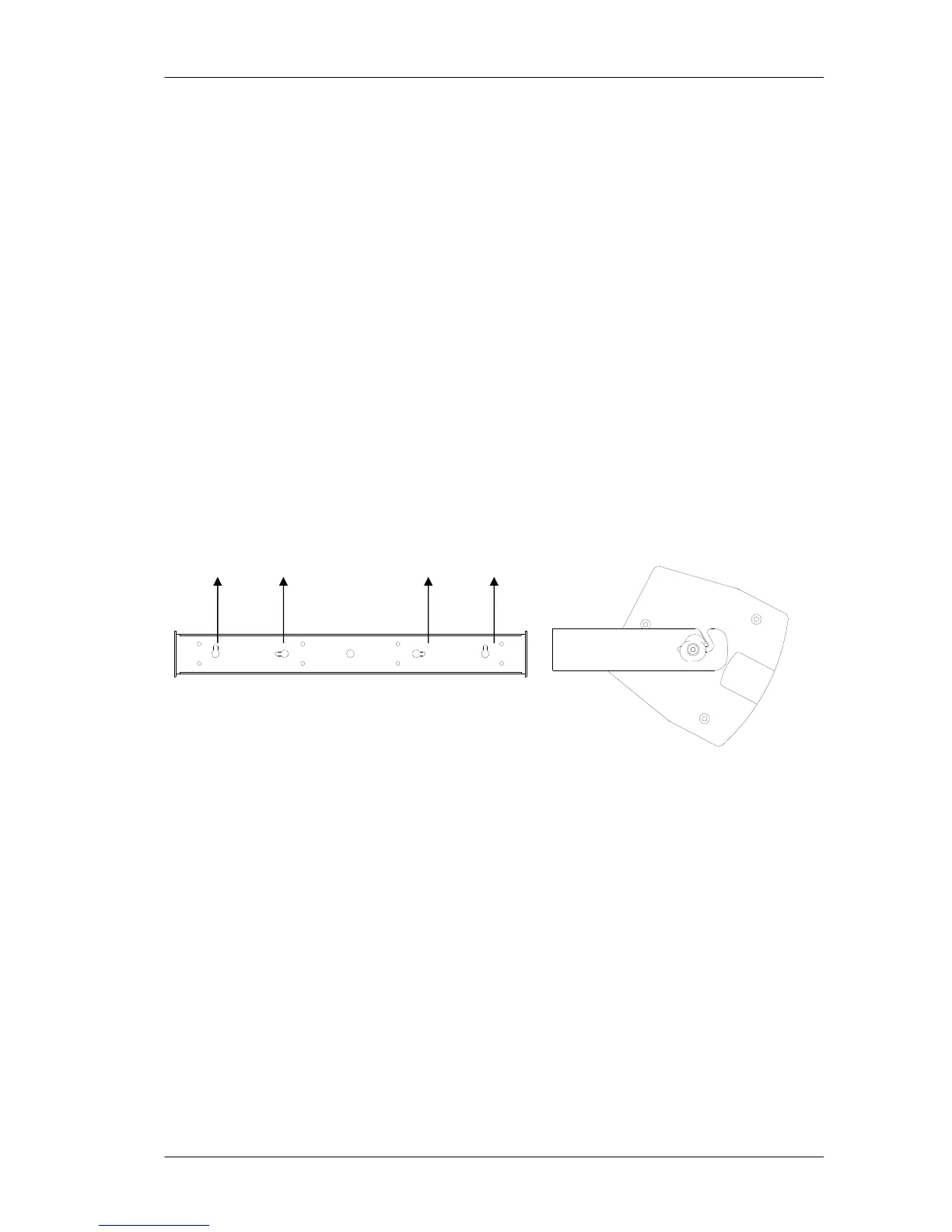

Several mounting points
Fig.15. “U” bracket
Mounting:
1- Hold the bracket against the mounting surface, so you can mark the locations of
the mounting holes
2- Drill corresponding pilot holes on the wall and attach the bracket with screws
3- Remove the top hat socket from the cabinet and put the M8 round plate
4- Set the cabinet on the bracket and fix it through the two M8 bracket knobs
5- Adjust the cabinet for desired position and angle
For more information refer to “SP-XX” user’s manual.
