Master Audio
Joker Series (Passive). Version 1.4 Jan14 12
3.7.2. JK26, JK10, JK12 and JK15 flying with ACR-M8 eyebolts
These models provide several M8 flying points. Their correct use will permit the flying
in horizontal or vertical position.

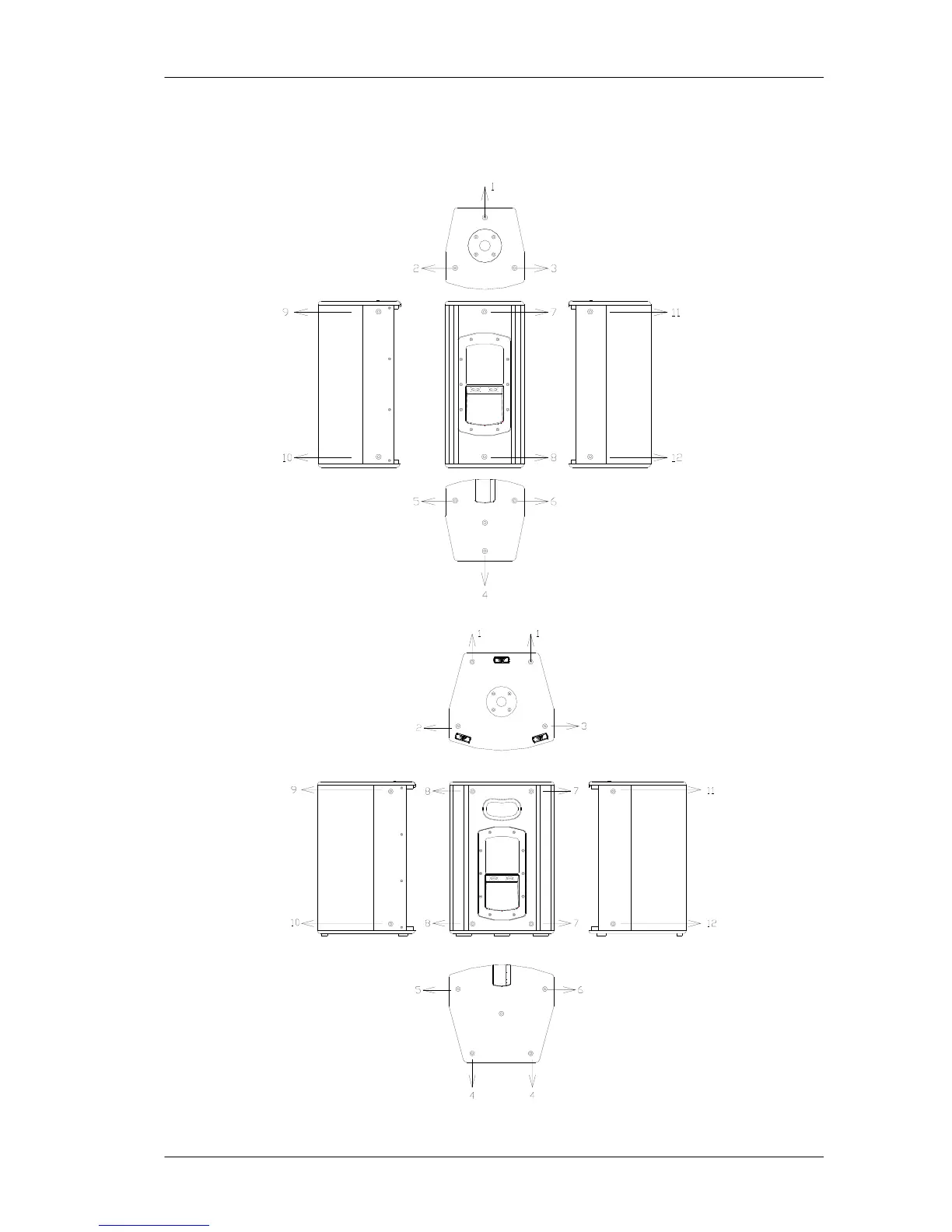

Fig.16. JK26 rigging points
Fig.17. JK10 rigging points
