Joker Series (Passive). Version 1.4 Jan14 4
2. CONNECTIONS
2.1. Connection description
1 1

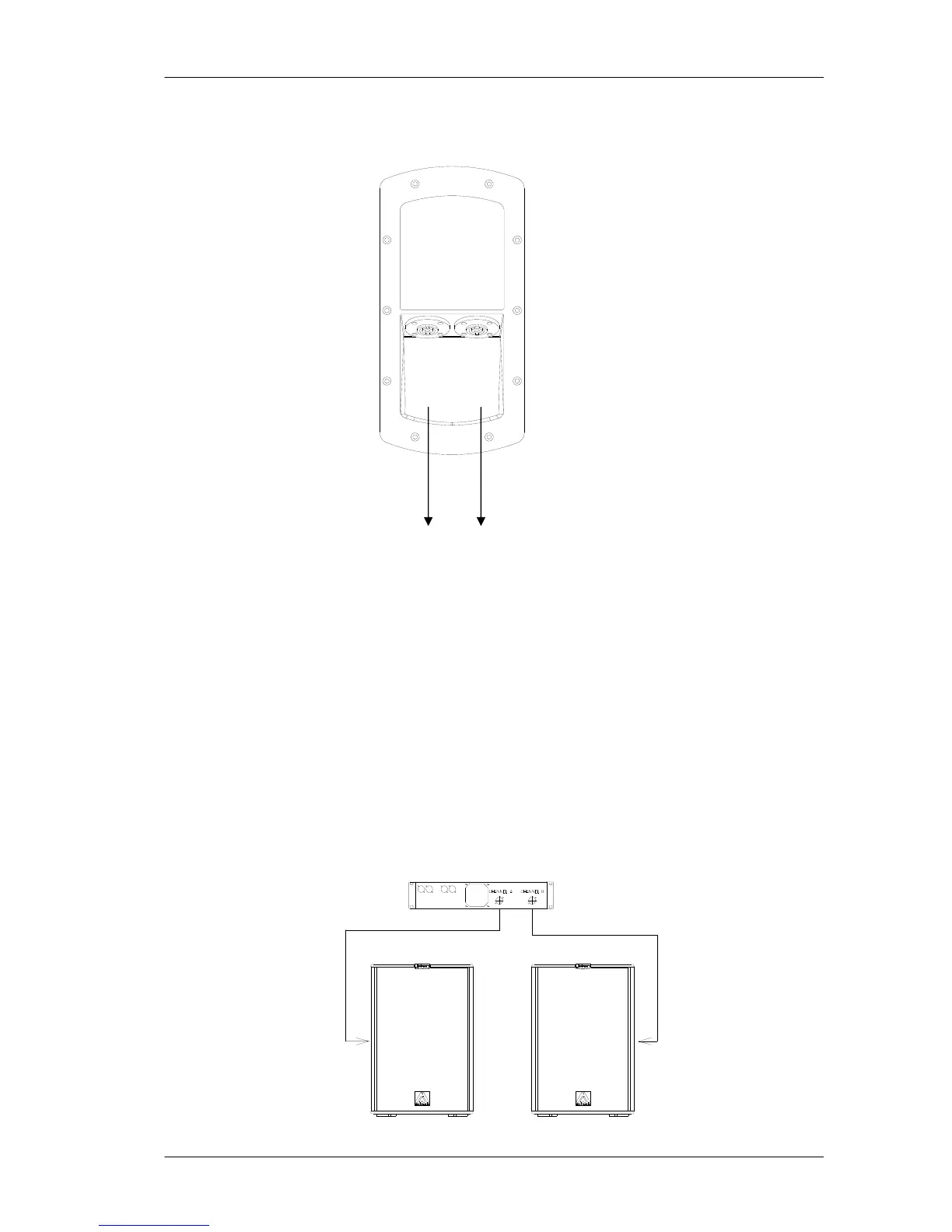

Fig.1. Joker (passive) connectors
1- SPEAKON: All models use two Speakon terminals and are duly prepared for a
perfect connection in a parallel system. Terminal Pins +1/-1 must be always used,
disregarding the +2/-2 which are not internally connected.
WARNING: It is strongly recommended to use a two-conductor high quality wire, non-
shielded and two-coloured. We recommend using a minimum section of 4mm
2
for
each conductor. Avoid long wire distances as they induce to important power and
quality losses
2.2. Configurations
2.2.1. Full Range Stereo configuration
Connect each output of the amplifier LEFT/RIGHT to each cabinet using two
independent wires.
Fig.2. Full range stereo configuration
