P18SWA CONNECTIONS
1 2 1 2 3 4 5 6
7 8 9

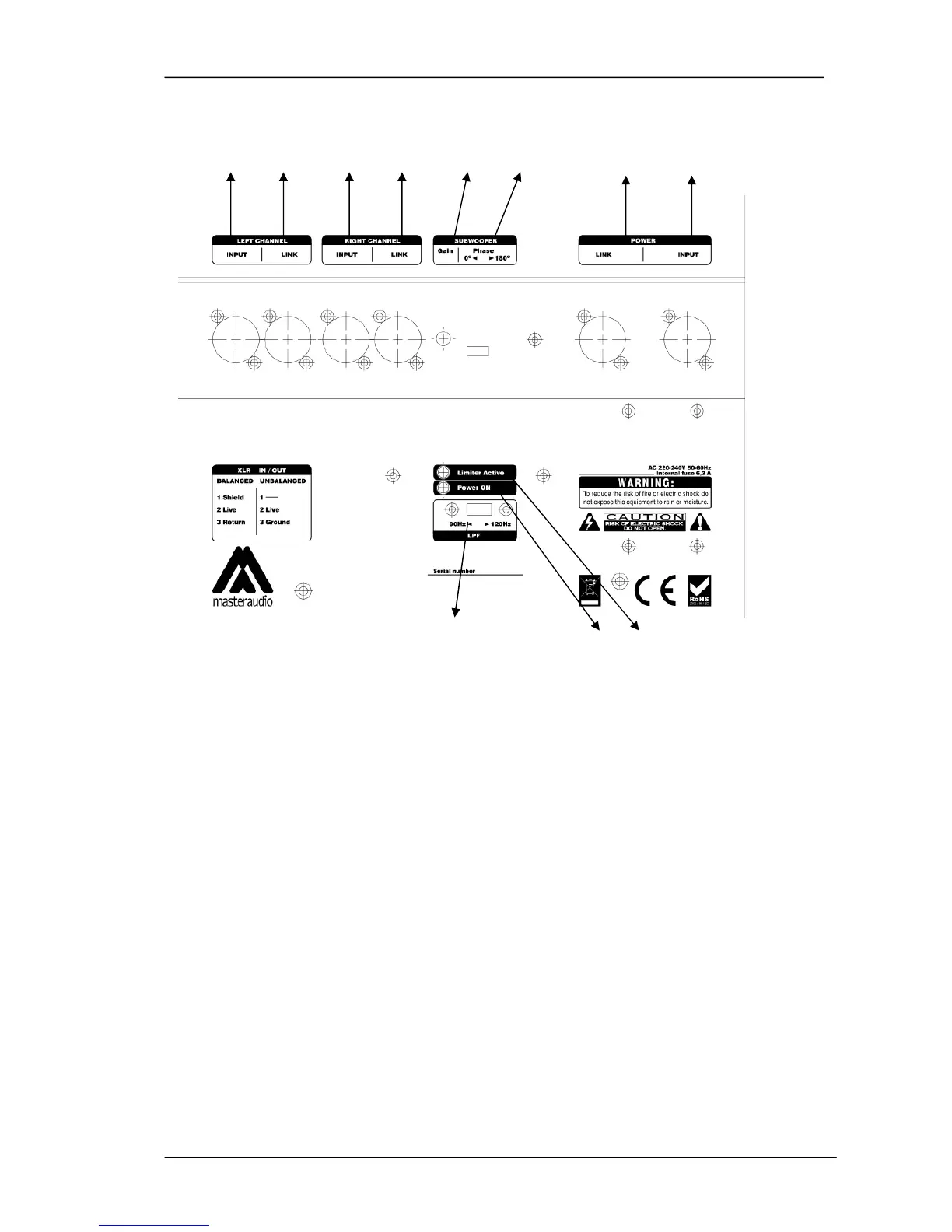

Fig.3.
Panel
1 - INPUT
: Balanced signal XLR: 1= Shield 2= Live 3= Return
2 - LINK: XLR connector used for paralleling several units, which will share the
same input: 1= Shield 2= Live 3= Return
3 - Gain: Controls the level of the LINE Input
4 - Phase : Phase switch 0º / 180º
5 - LINK (MAINS): Output AC PowerCon to feed a secondary cabinet
6 - INPUT (MAINS): Input AC PowerCon connector.
7 - FREQUENCY SWITCH: LPF 90Hz / LPF 120Hz
8 - POWER ON: Lights when AC input is correct.
9 - LIMITER: Prevents the amplifier outputs from overdriving the transducers. When
the LIMITER indicator is active, it is in red colour. The LIMITER indicator can be in
red occasionally, but if it is continuously activated, turn down the level control until
the LIMITER indicator is only in red occasionally.
