Master Audio
PRO Series.Version 1.5 Nov10
35
P15SMA CONNECTIONS
1 2 3 4 5 6

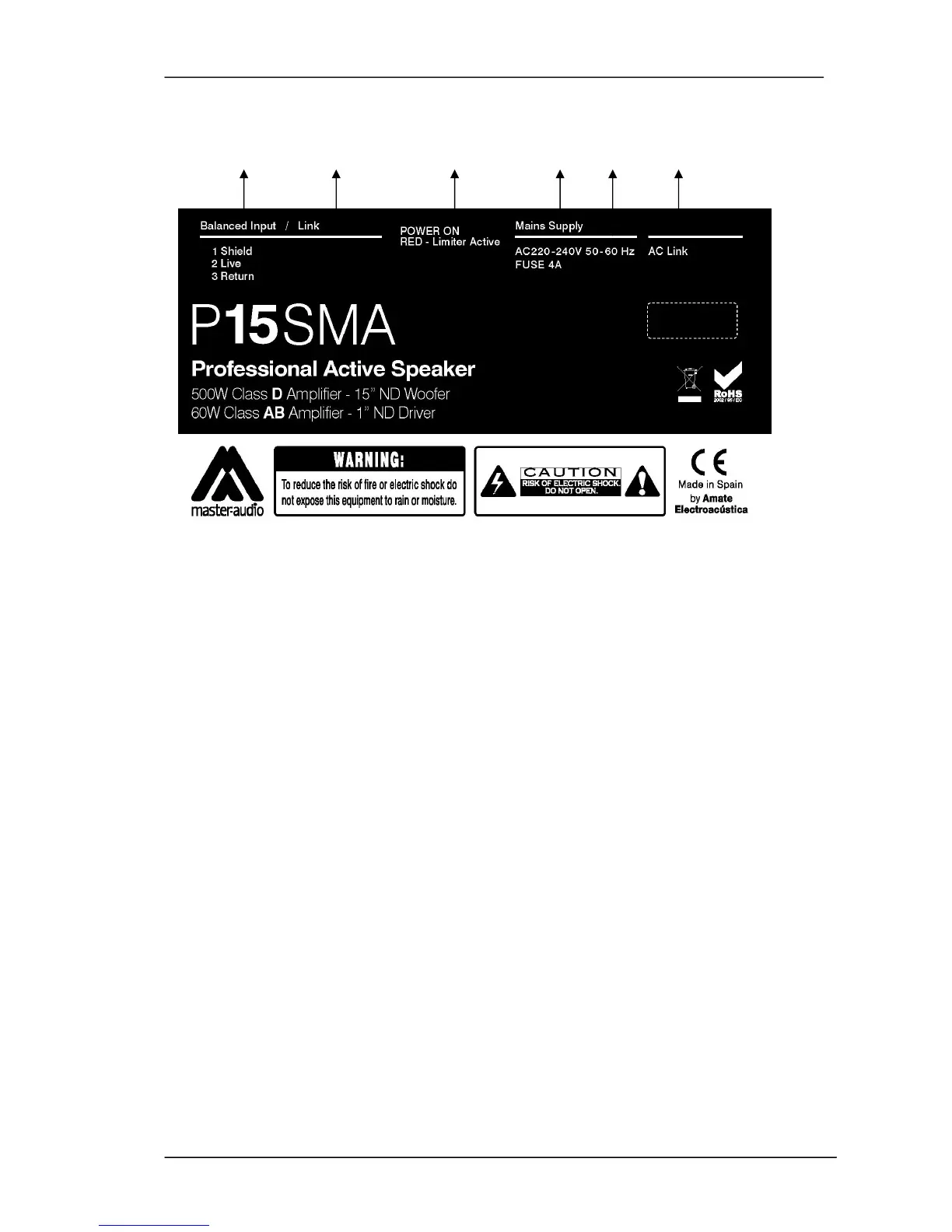

Fig.4. Panel
1 - Balanced Input: XLR connector used for paralleling several units, which will
share the same input.
1= Shield 2= Live 3= Return
2 - Link: Balanced signal XLR:
1= Shield 2= Live 3= Return
3 - Limiter Active: Prevents the amplifier outputs from overdriving the transducers.
The LIMITER indicator is in green colour when you switch on the cabinet. When the
limiters are activated, it changes to red colour. The LIMITER indicator can blink
occasionally, but if it blinks frequently or lights continuously, turn down the level
control until the LIMITER indicator only blinks occasionally.
4 - AC Mains: Input AC PowerCon connector.
5 - FUSE
6 - AC Link: Output AC PowerCon to feed a secondary cabinet
