P318A CONNECTIONS

1 2 3 4 5 6 7

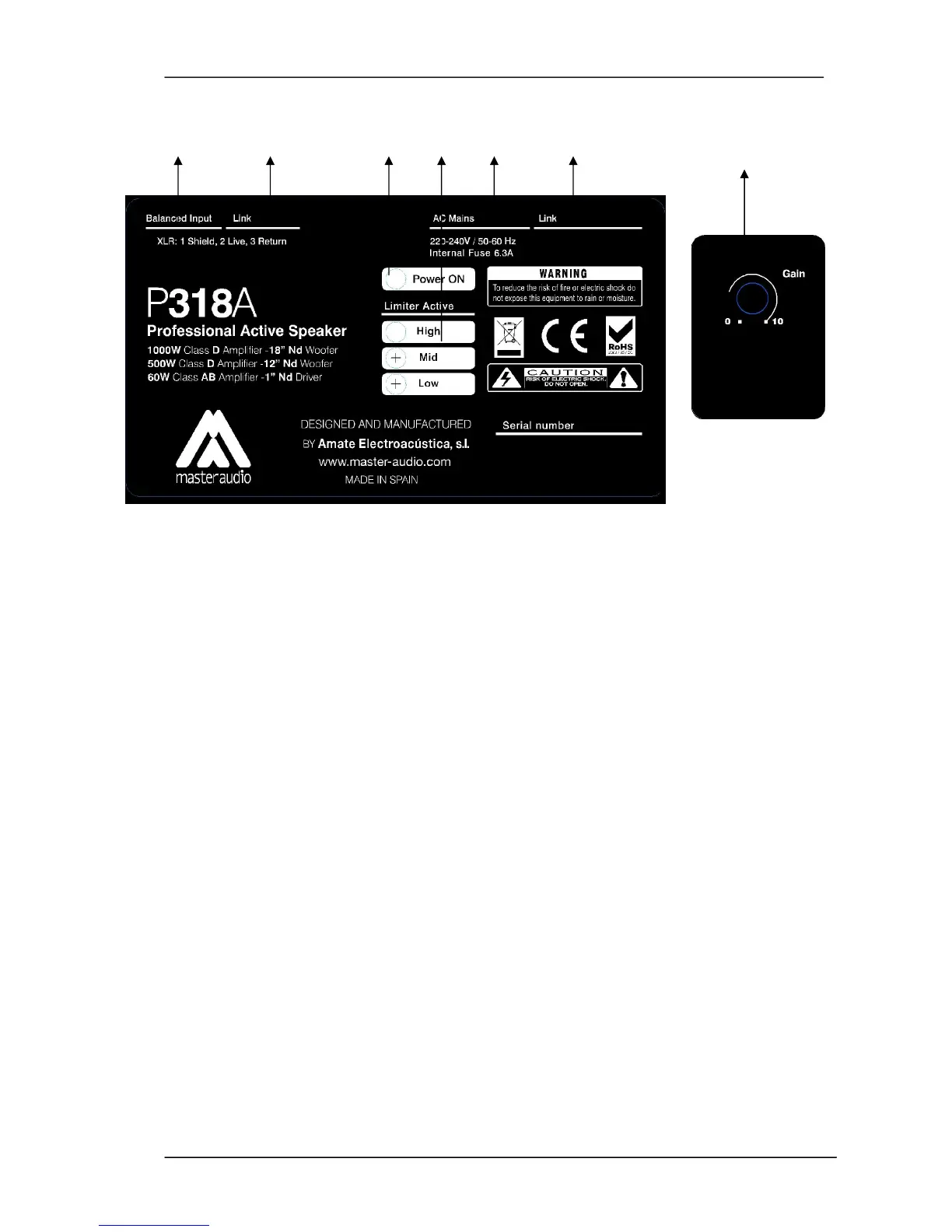

Fig.5.

Panel

1 - Balanced Input: Balanced signal XLR:

1= Shield 2= Live 3= Return

2 - Link: XLR connector used for paralleling several units, which will share the

same input.

1= Shield 2= Live 3= Return

3 - POWER ON: Lights when AC input is correct.

4 - Limiter: Prevents the amplifier outputs from overdriving the transducers. When

the LIMITER indicators are active, they are in red colour. The LIMITER indicators

can be in red occasionally, but if they are continuously activated, turn down the level

control until the LIMITER indicators are only in red occasionally.

5 - AC Mains: Input AC PowerCon connector.

6 - AC Link: Output AC PowerCon to feed a secondary cabinet

7 - Gain: Controls the level of the LINE Input
