Master Audio
Xcellence Line Array Series 208.Ver 1.2 Sep 12
36

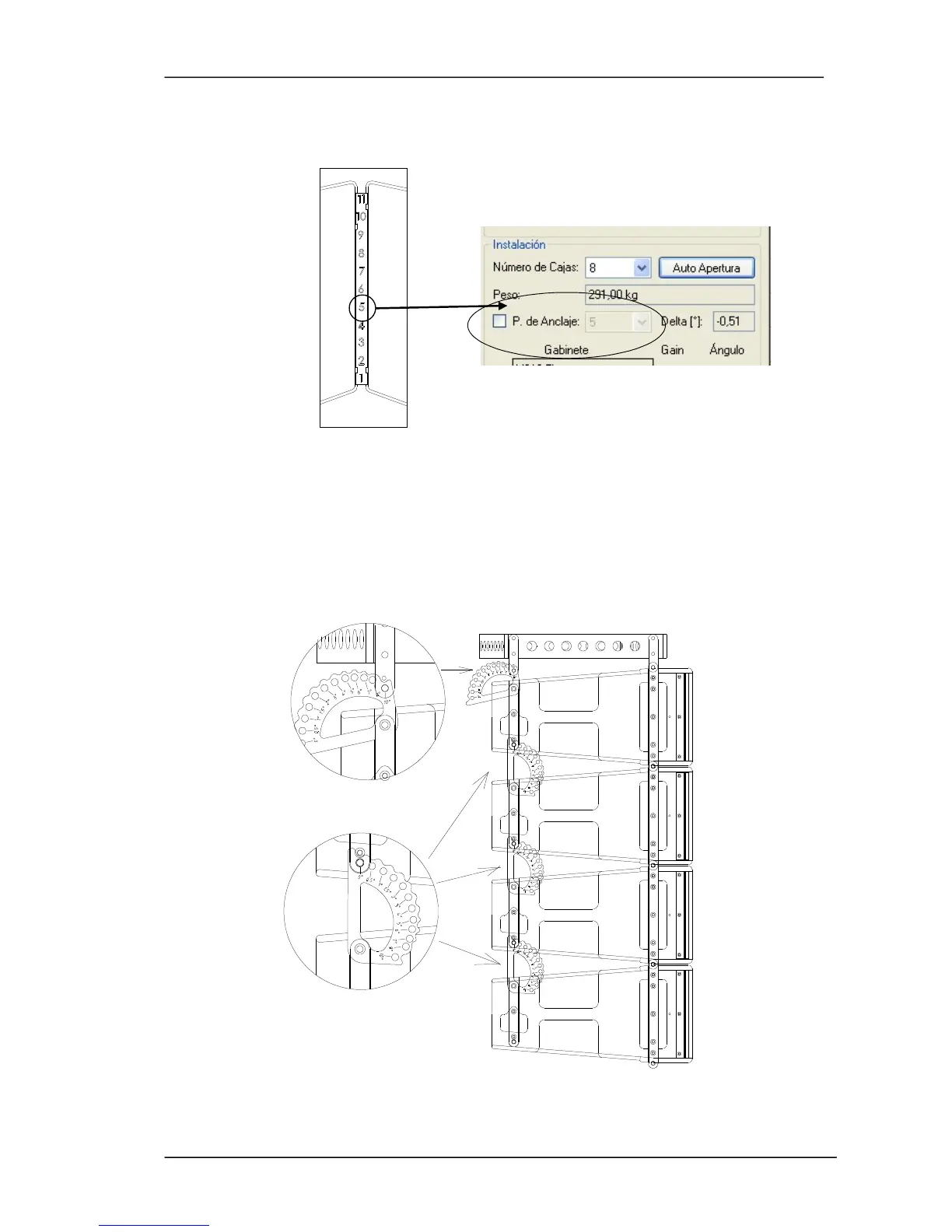

The numbers on the central bar are those corresponding to Ease Focus2
calculations.
Fig.29. Pin points
8.2. X-208 Flying
Use the back guide to choose the desired tilt angle (0º, 0.5º, 1º, 1.5º, 2º, 3º, 4º, 5º, 6º,
7º, 8º, 10º). Set the back guide between the back lateral structures of the cabinet that
is placed above. Lock the guides with the safety pins.
Fig.30. X-208 Flying. Flat Line Array (Cabinet 1 Back Guide = 10º)
(Cabinet 2/3/4 Back Guide = 0º)
