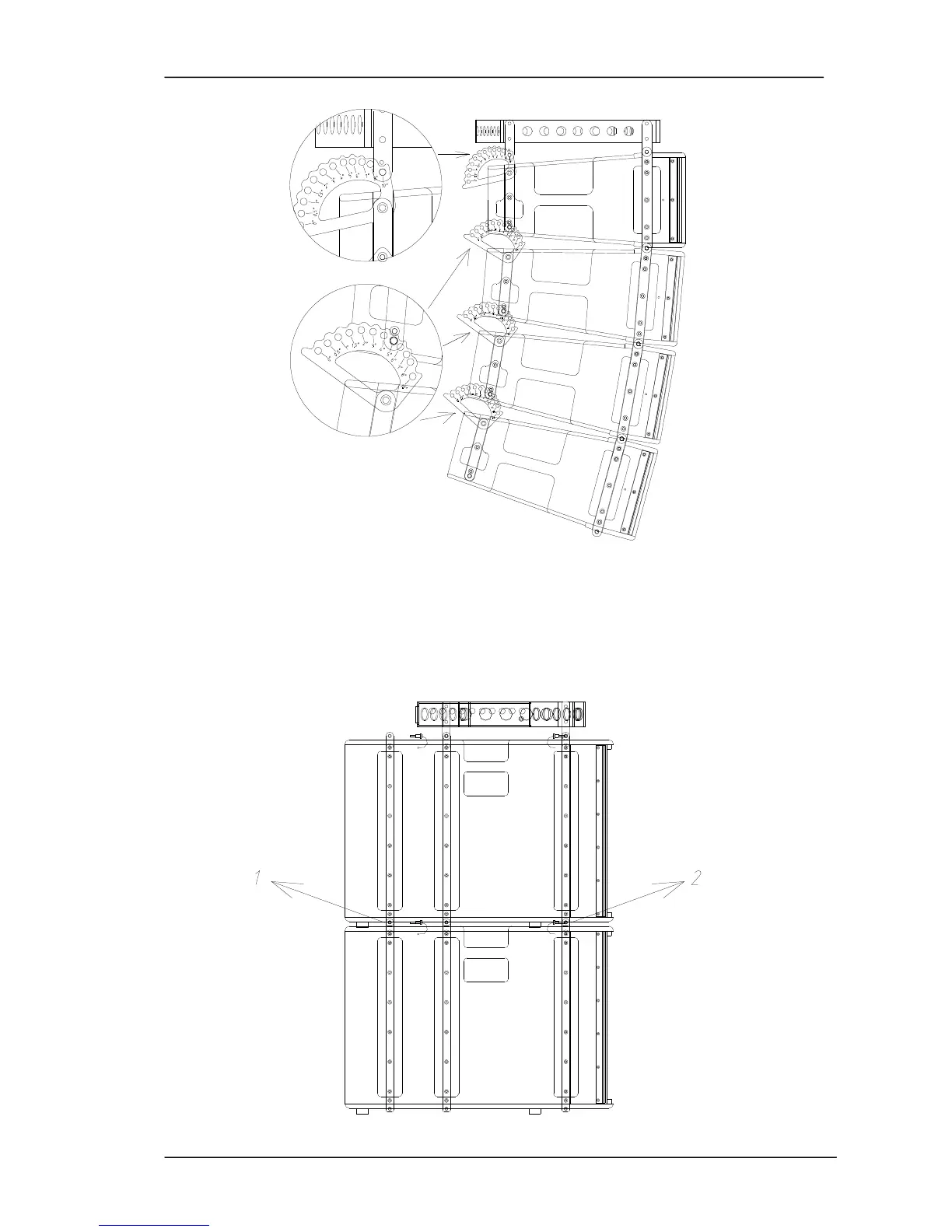

Fig.31. X-208 Flying. 5º Curved Line Array (Cabinet 1 Back Guide = 10º)
(Cabinet 2/3/4 Back Guide = 5º)
8.3. X-215W Flying
Units are joined through the built-in guides of each cabinet. Use points 1 and 2 to
block the system.
Fig.32. X-215W Flying, two units
