Master Bilt MAC-7 - Wiring Diagram and Electrical Details; Condensing Unit and Evaporator Wiring Diagram; System Component Identification and Specifications

11

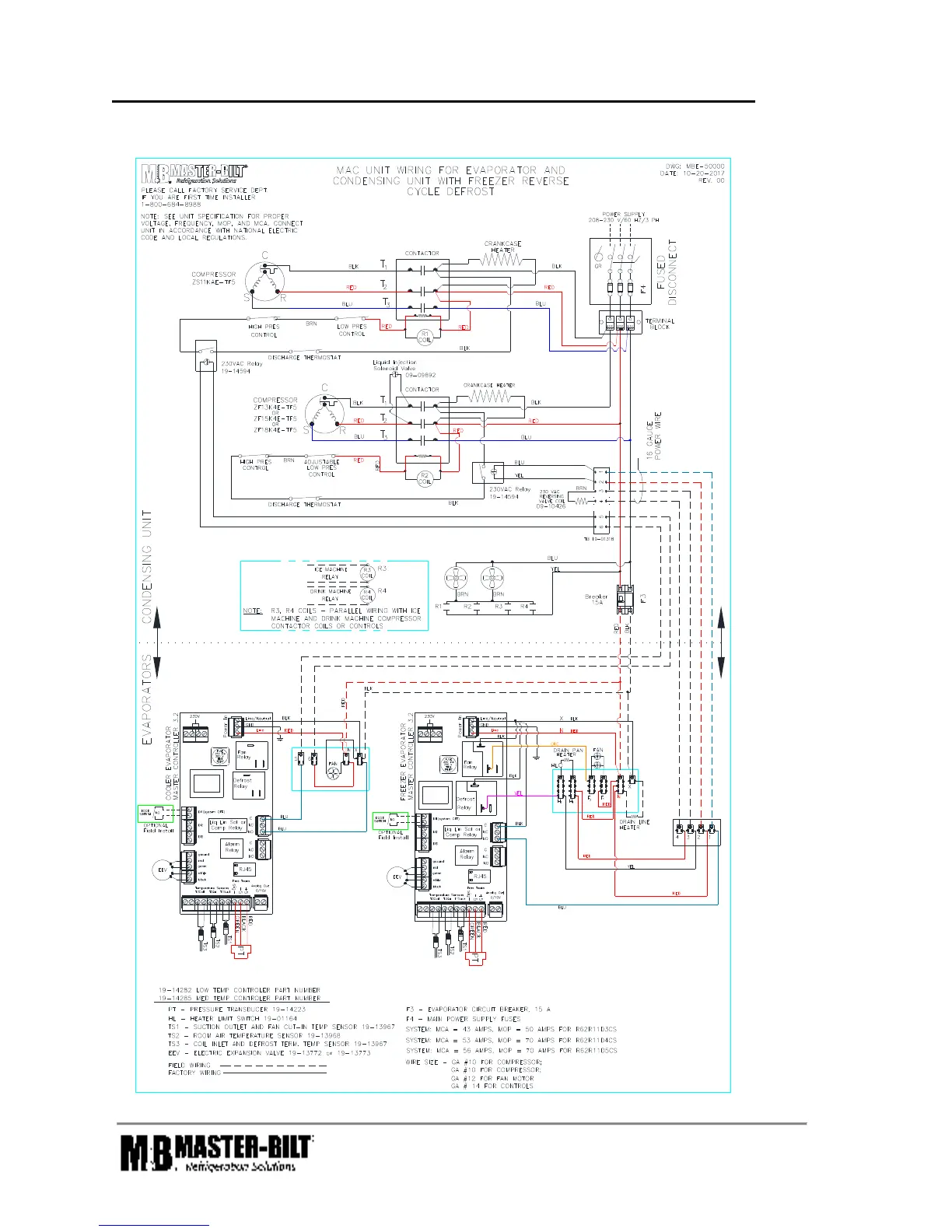

MAC-7 and MAC-8 Wiring Diagram with Reverse Cycle Defrost
Note: Evaporators and condensing unit powers are from same power sources. The actual wiring
diagram for each system is attached on the back of the electric box cover.
N.O.
N.O.
