Ventilation system Instructions
Your Over-the-Range microwave oven is designed for adaptation to the following three types of ventilation.
Select the type of ventilation required for your installation and proceed to the appropriate section.
A. Horizontal Ventilation System
A-1. Ventilation motor
This blower motor has a damper and your microwave oven is shipped assembled for a Recirculation Application.

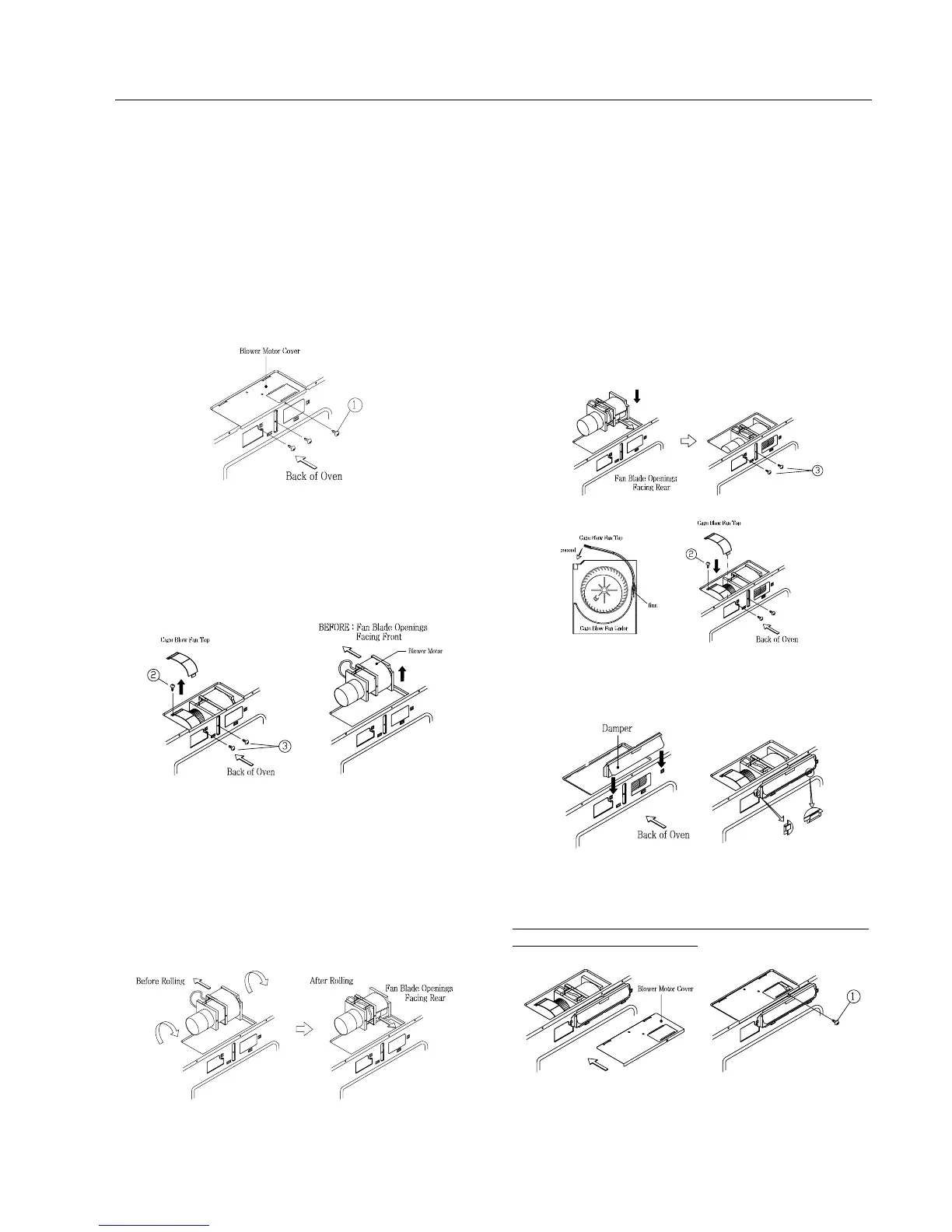

Step.1
* Remove the screws (1) for opening the blower motor cover
and save screw. Remove cover.
Step.2
* Remove the screws (2 and 3) for Case Blow Fan Top and
Blower attachment and save screws.
* Remove Case Blow Fan Top.
* Lift blower unit out of mounting location.
CAUTION: Do not pull or stretch blower wiring.
Step.3
Roll the blower unit so that the fan blade openings are facing
back ( rear of unit ).
* If you want VERTICAL, roll the blower unit so that the fan
blade openings are facing upward.
CAUTION: Wires to blower unit must be routed avoid to
pinching, before reinstallation of cover plate.
Step.4
Place the blower unit into the opening and secure it to the oven
with the screw(3) from step 2.
Secure the Case Blow Fan Top to the Case Blow Fan under
with the screw(
2) from step 2.
Carefully match the exhaust opening location of the microwave
and attach the damper to the rear plate by sliding it into the
guides at the rear plate.
After adjust the damper, reinstall the blower motor cover with
the screw (1).
Be sure that the damper hinge is on the top and the damper
swings free into the wall outlet.
Roll the blower motor clockwise 180˚
