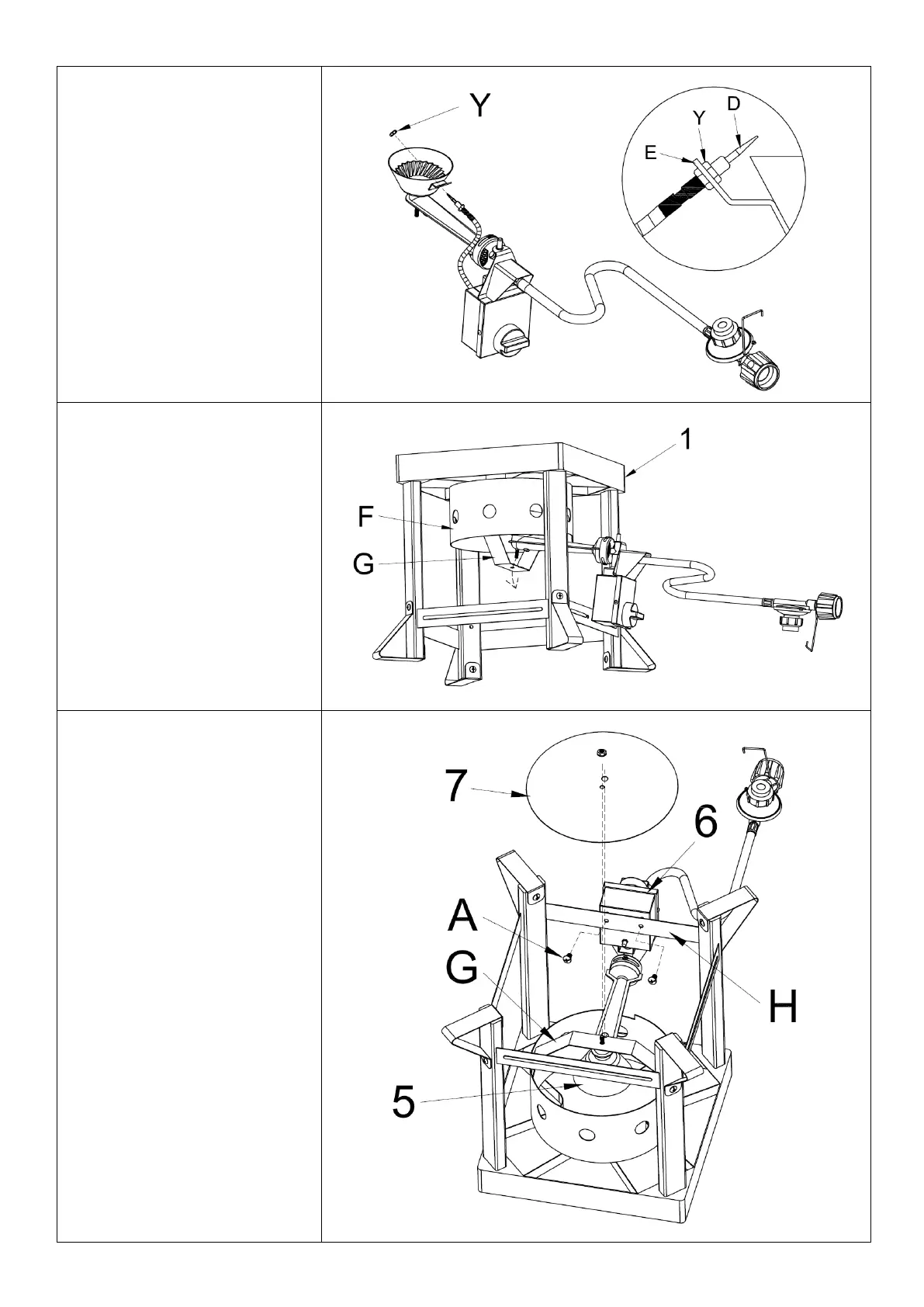

3. Attach thermocouple (D) to
thermocouple bracket (E)
which has been fixed to the
burner.
Attach thermocouple (D) as
per right drawing and tighten
the nut (Y).
4. Unscrew the
pre-assembled nut from the
threaded pin of the burner (5).
Insert the burner through the
bottom of the stand (1), in
between wind shield (F) (side
with rectangle lip) and burner
support bar (G).
5. Align timer control box (6)
to the timer box support bar
(H) and fix it with 2 pieces
M6x12 screws by going
through the support bar (H)
and then to the time box (6).
Then align burner (5) base to
burner support bar (G). Align
holes on heat shield (7) with
threaded pin and alignment
pin of the burner (5) through
hole in burner support bar
(G), then through small hole
of heat shield (7). The
alignment pin on bottom of
burner (5) must be inserted
through the large hole of the
heat shield (7). Tighten hex
nut onto bolt of the burner (5).
