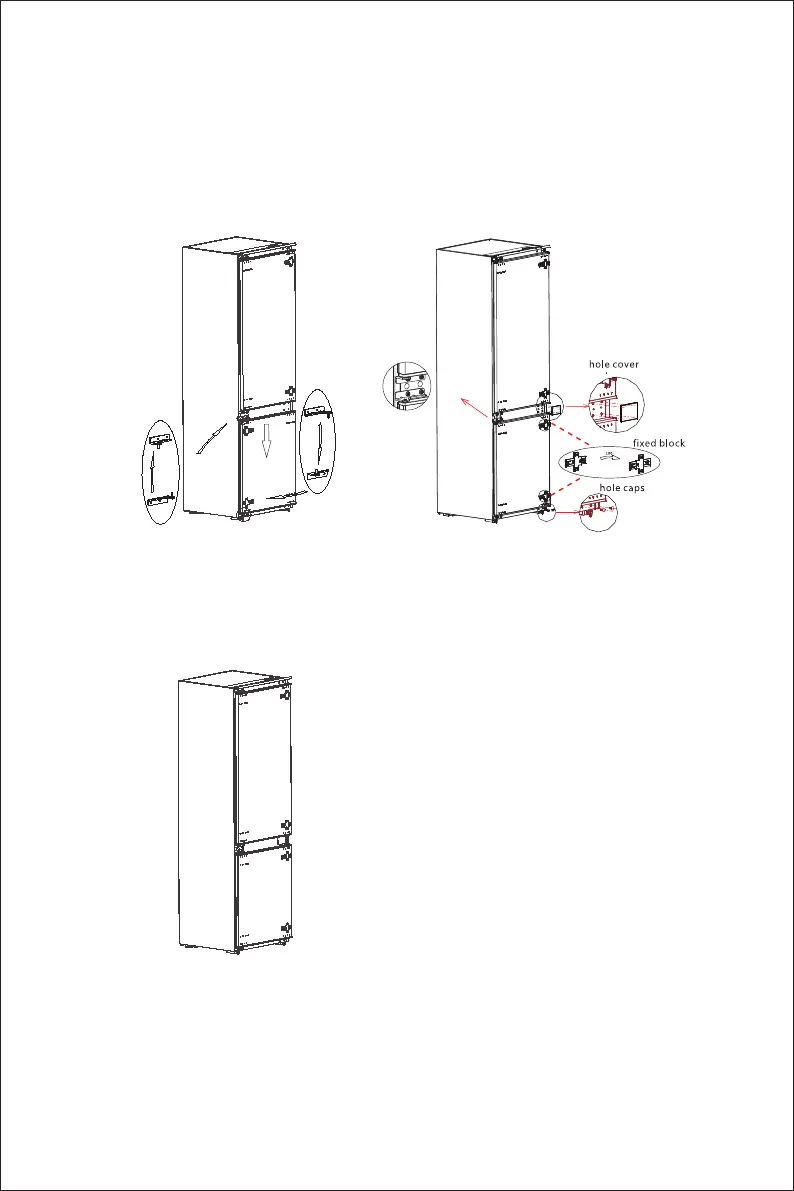

10) The picture after completion is shown as below
8) Exchange the F:bottom hinge and F:upper hinge , then install them according to below steps,
and install the top hole cover and lower hole caps.
9) for 180°，
freezer door
Remove the two fixed blocks of freezer door and rotate them
and install them on other side of .
（The picture above is only for reference. The actual configuration will depend on
the physical product or statement by the distributor）
EN-12
F:upper hinge
F:bottom hinge
Step 1:
install lef t bottom hinge
Step2:
put refrigerator
door on left botto m
hinge vertically
Step 3:
install lef t upper hinge
To Next Page
