COMPUTER ASSEMBLY

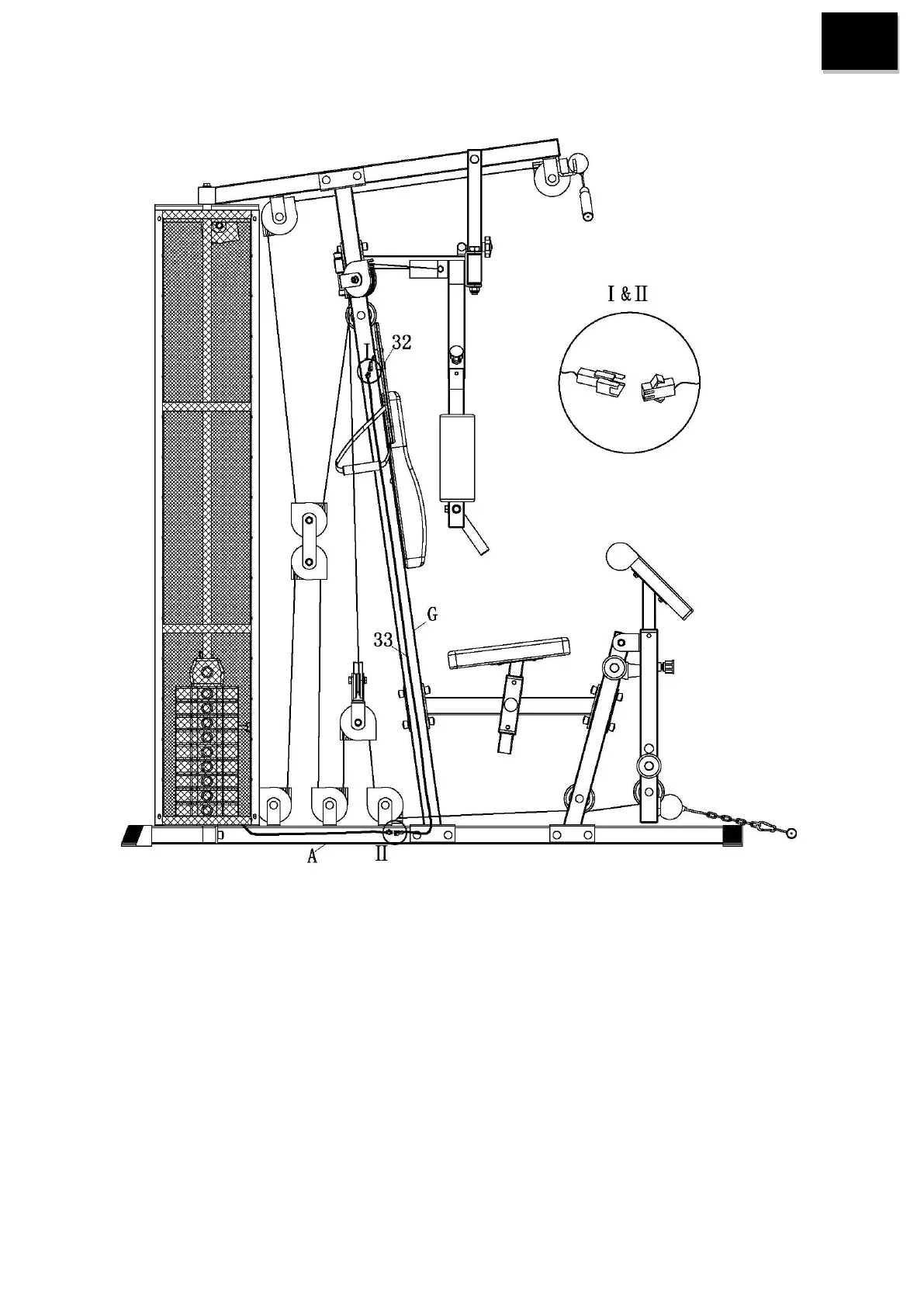

Before assemble main frame (G), connect computer (32) to computer line (33) as Ⅰ shown, then make the
computer line (33) through hole on main frame (G). Install computer (32) to main frame (G). Connect
computer line (32) to port of line on main base (A) as Ⅱ shown.
