STEP 1

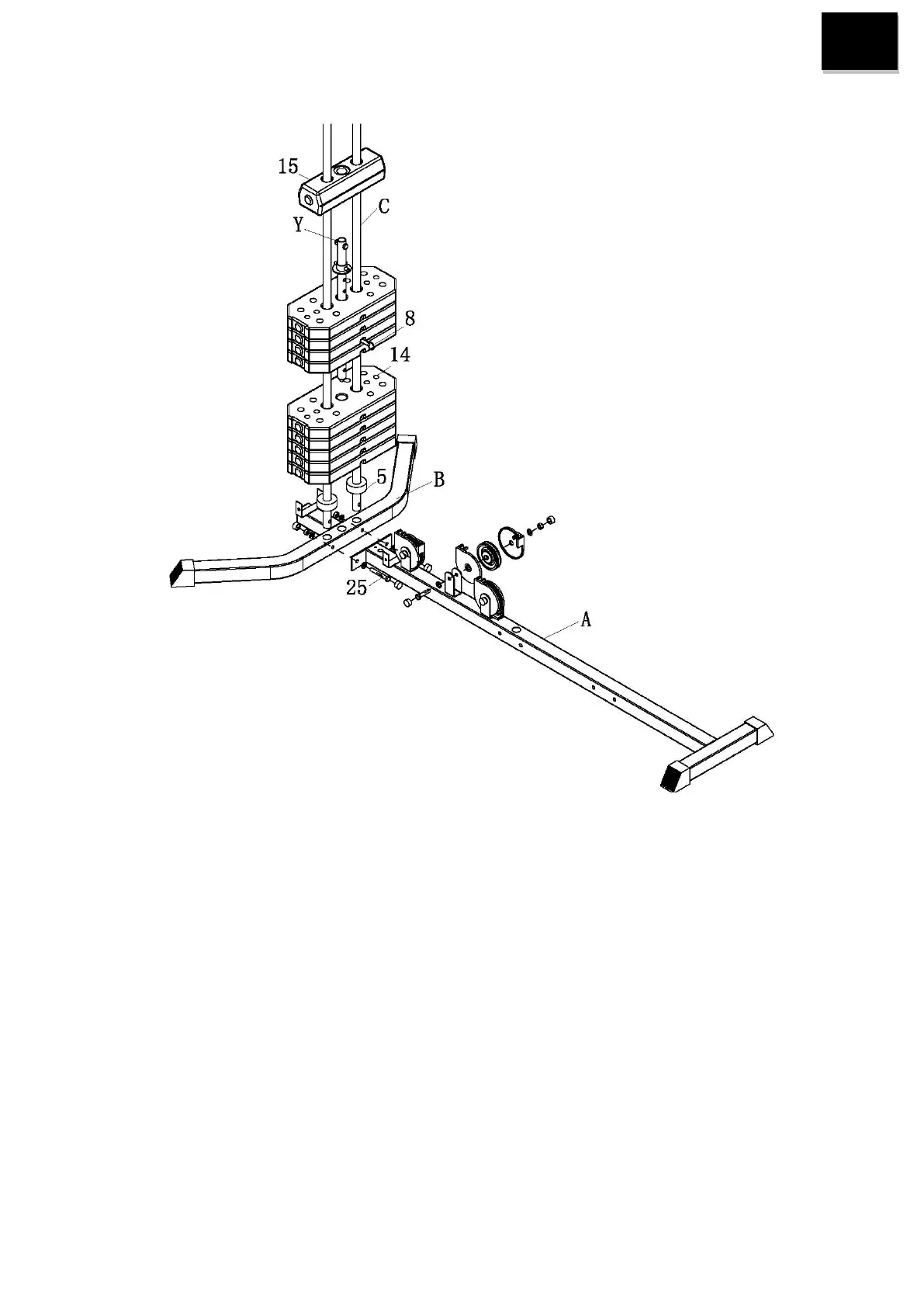

1. Insert guide rods (C) into back base (B) then attach it to main base(A) through the holes in guide rods(C)
with bolts M10*70+washers+nuts (25).
2. Slide rubber donuts (5) onto guide rods (C).
3. Slide weight plates (14) and top plate (15) onto guide rods (C).
4. Insert selector shaft (Y) into top plate (15).
