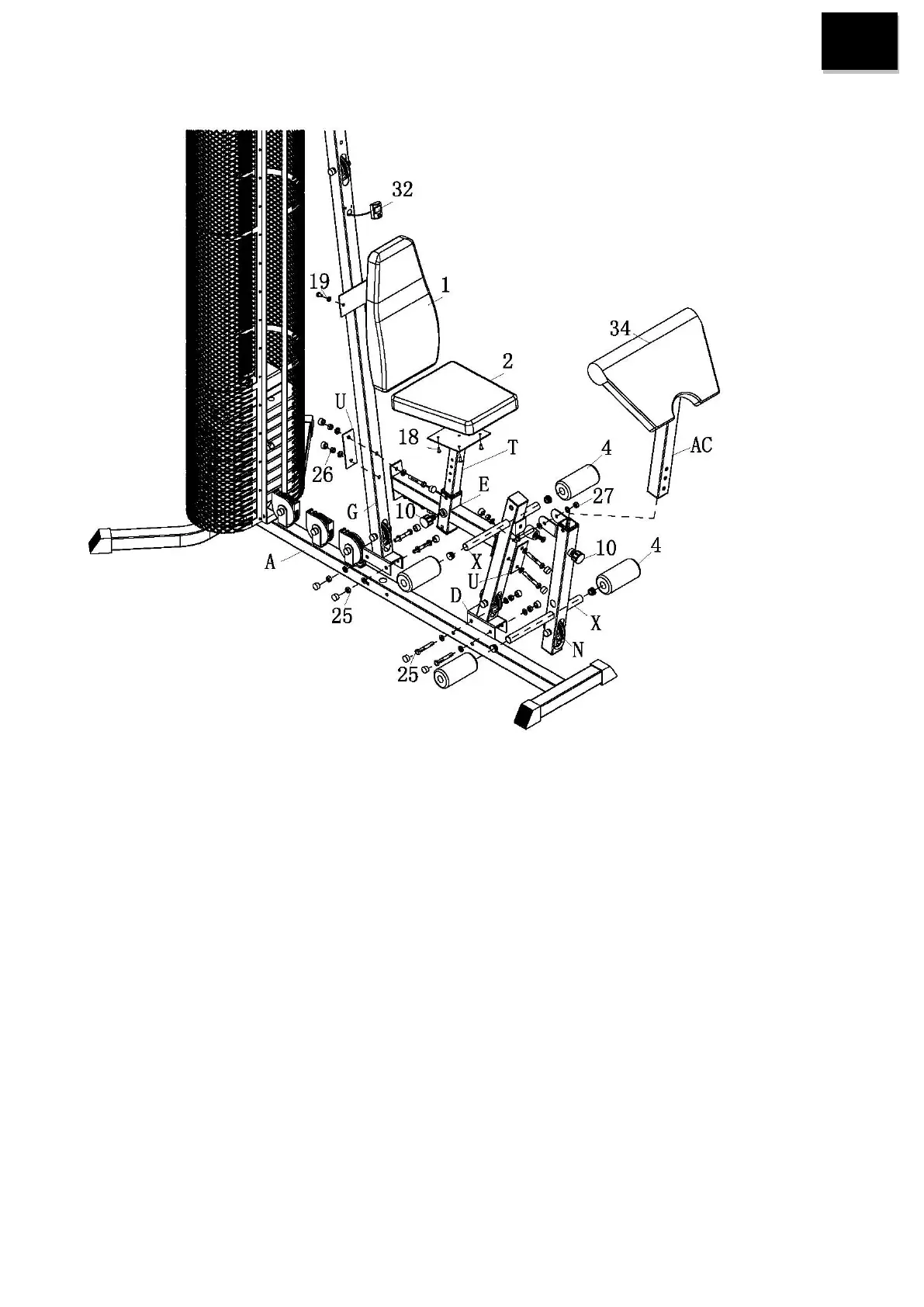

STEP 2
1. Attach main frame (G) and leg extension support (D) to main base (A) with bolts M10*70+washers+nuts
(25).
2. Attach seat support (E) and joint plates (U) to main frame (G) and leg extension support (D) with bolts
M10*75+washers+nuts (26).
3. Attach leg extension (N) to leg extension support (D) with bolts M10*70+washers+lock nut (27).
4. Attach seat cushion (2) to seat pad adjustment (T) with bolts M6*16 (18).
5. Insert seat pad adjustment (T) into seat support (E) screw with fast pin (10).
6. Attach back cushion (1) to main frame (G) with bolts M8*16 (19).
7. Insert foam tube (X) into holes of leg extension (N), leg extension support (D). Slide foam roller (4) onto
foam tubes (X).
8. Attach armrest cushion (34) to armrest support (AC) with bolts M6*16 (18).
9. Insert armrest support (AD) into leg extension (N) screw with fast pin (10).
