Master HWI3000 User Manual

29
106813
OWNER’S MANUAL
† Includes reference numbers 1 through 16
∆ Not shown
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 103182-01 Control Panel 1
2 22616009 Circuit Breaker, 20 Amp 2
3 099833-01 120V, 30A Twist-Lock Receptacle 1
4 100410-01 Sems Screw, #8-18 x 1/2" 16
5 22261000 U-Nut 20
6 100445-01 20V, 15A Duplex (GFCI) Receptacle 1
7 103183-01 125/250V, 50A Receptacle 1
8 103184-01 Circuit Breaker, 45 Amp 2
9 26299000 Run Light 1
10 101350-01 Hour Meter 1
11 099834-01 120/240V, 20A Twist-Lock Receptacle 1
12 22616010 Circuit Breaker, 30 Amp 2
13 099760-01 Bushing 1
14 103185-01 Control Box 1
15 100366-01 Rocker Switch 1
16 104202-01 120V, 20A Duplex Receptacle 1
† 102927-01 Control Panel Assembly 1
∆ 100177-05 Panel Schematic Diagram 1
∆ 103257-01 Auto Idle PC Board Kit 1
∆ 103258-02 Solenoid Assembly Kit (With Bracket) 1
Reset
Reset
Reset
Reset
Reset
Reset
120 Volt
Aut
o Idle
200 V
p;
t
Sel
e
c
t
o
r
1
4
14
O
ff
O
n
9
2
8
12
12
2
3
4
11
16
RESET
TEST
6
15
5
5
13
10
E
NM
00000005
H
OURS
1
/
1
0
7
5

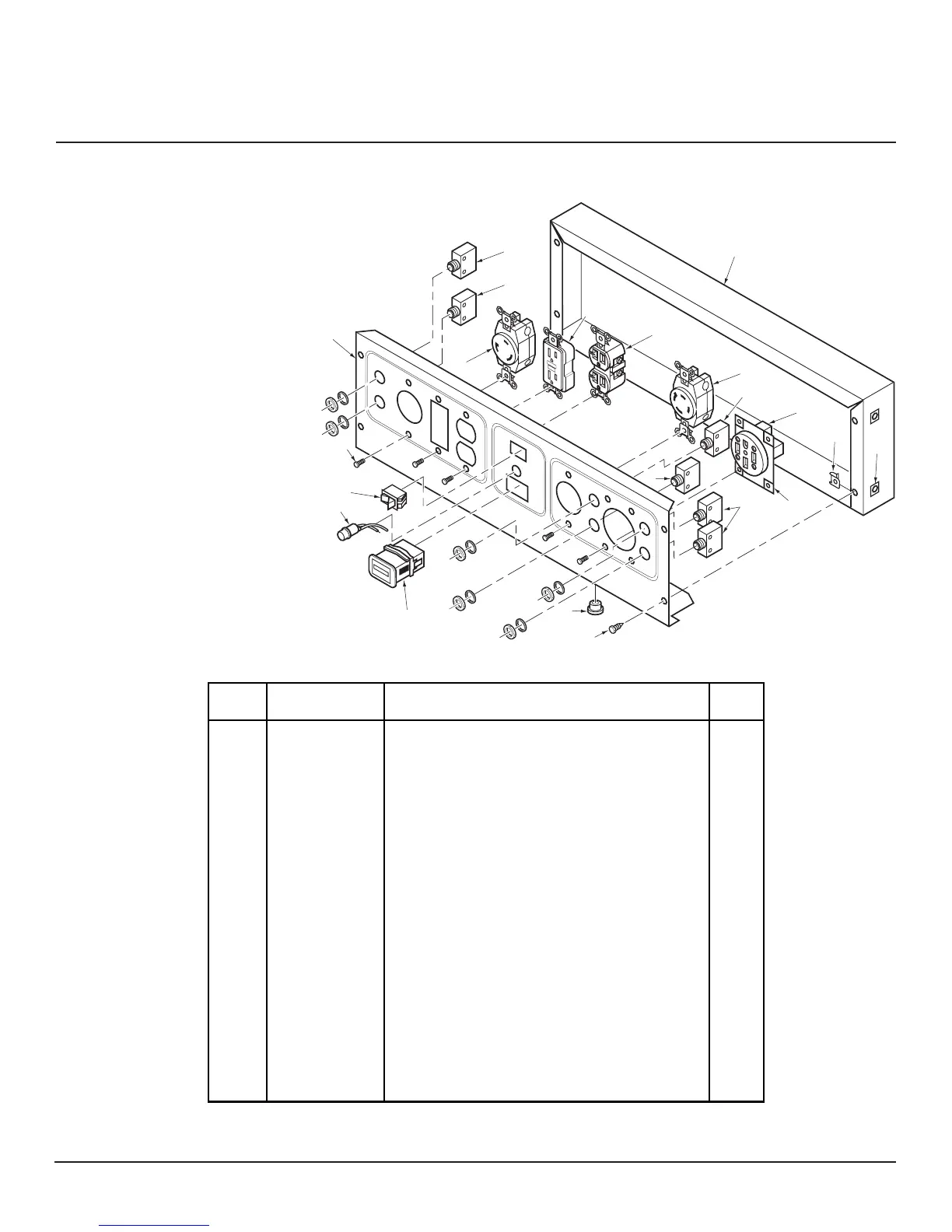

ILLUSTRATED
PARTS LIST
For Model MGH10000A Control
Panel
This list contains replaceable parts used in
your generator. When ordering parts, fol-
low the instructions listed under Replace-
ment Parts on page 32 of this manual.

Master HWI3000 Specifications

General

Brand	Master
Model	HWI3000
Category	Portable Generator
Language	English
