28
106813
PORTABLE GASOLINE GENERATORS
R
PART NUMBER FOR MODEL
MGH5000D
KEY MGH4000C MGH5000DI MGH6000D
NO. MGH4000CI MGH5000DIE MGH6000DI MGH6500IE DESCRIPTION QTY.
1 103349-01 103349-02 103349-03 103349-05 Control Panel 1
2 22616009 22616009 22616009 22616009 Circuit Breaker, 20 Amp * 2
3 099833-01 099833-01 099833-01 099833-01 120V, 30A Twist-Lock Receptacle * 1
4 104202-01 104202-01 104202-01 104202-01 120V, 20A Duplex Receptacle * 1
5 100445-01 100445-01 100445-01 100445-01 120V, 15A Duplex (GFCI) Receptacle * 1
6 099956-01 099956-01 099956-01 — Full Power Selector Switch * 1
7 22616009 — — — Circuit Breaker, 20 Amp * 2
— 22616011 — — Circuit Breaker, 25 Amp * 2
— — 22616010 22616010 Circuit Breaker, 30 Amp * 2
8 099834-01 099834-01 099834-01 —
120/240V, 20A Twist-Lock Receptacle *
1
— — — 099835-01
120/240V, 30A Twist-Lock Receptacle *
1
9 101350-01 101350-01 101350-01 101350-01 Hour Meter 1
10 099760-01 099760-01 099760-01 099760-01 Bushing 1
11 100410-01 100410-01 100410-01 100410-01 Sems Screw, #8-18 x 1/2" 4
12 100149-01 100149-01 100149-01 100149-01 Control Box 1
13 22261000 22261000 22261000 22261000 U-Nut 8
14 099997-01 099997-01 099997-01 099997-01 Switch Plug 1
† 103348-01 103348-02 103348-03 — Control Panel Assembly 1
† 103348-05 103348-06 103348-07 103348-09 Control Panel Assembly - Auto Idle Models 1
∆ 100177-07 100177-07 100177-07 100177-07 Panel Schematic Decal 1

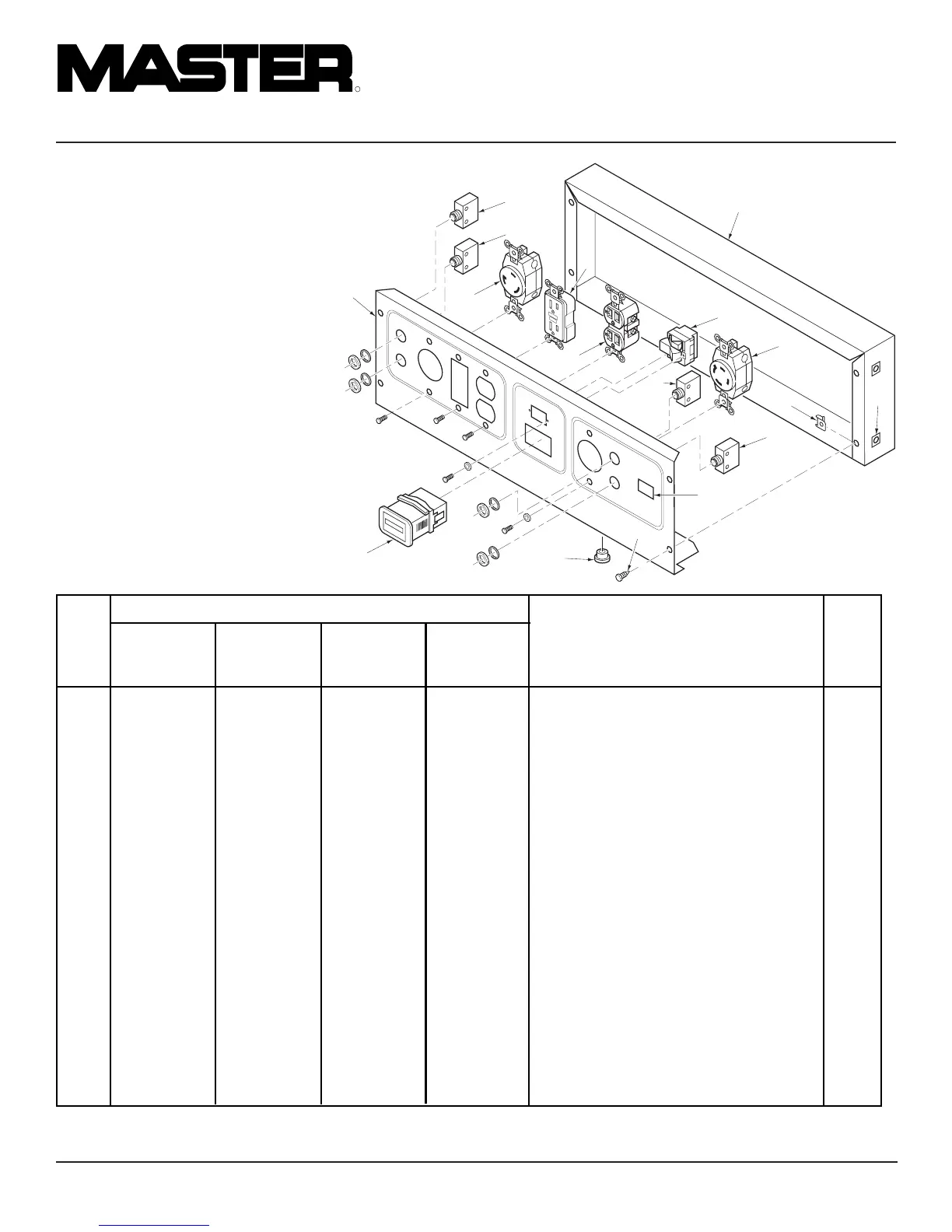

ILLUSTRATED
PARTS LIST
For Models MGH4000C,
MGH4000CI, MGH5000D,
MGH5000DI, MGH5000DIE,
MGH6000D, MGH6000DI, and
MGH6500IE Control Panel
This list contains replaceable parts used in
your generator. When ordering parts, fol-
low the instructions listed under Replace-
ment Parts on page 32 of this manual.
* Includes fastening hardware
∆ Not shown
† Includes reference numbers 1 through 13
F
U
L
L
P
O
W
E
R
S
E
L
E
C
T
O
R
1
2
0
/2
4
0
V
O
L
T
S
R
E
S
ET
R
E
S
ET
1
2
4
6
8
7
7
10
9
11
12
13
13
14
3
2
1
2
0
ONL
Y
1
2
0
/2
4
0
V
Reset
Reset
120 Volt
ENM
00000005
HO
URS 1/10
RES
E
T
T
EST
5
