OWNER’S MANUAL
R
E
S
E
T
T
E
S
T
1
2
0
V
O
L
T
S
R
E
S
E
T
240 VO
LT
S
R
E
S
E
T
R
E
S
E
T
R
E
S
E
T
E
N
M
0
0
0
0
0
0
0
5
H
O
U
R
S
1
/
1
0
1
2
0
O
N
L
Y
1
2
0
2
4
0
V
OPERATION
GENERAL INFORMATION
This generator is not large enough to power
your entire home. Do not connect generator
to any existing electrical circuits. Plug items
directly into generator receptacles. Do not
exceed amperage rating of receptacles. Only
use grounded cords.

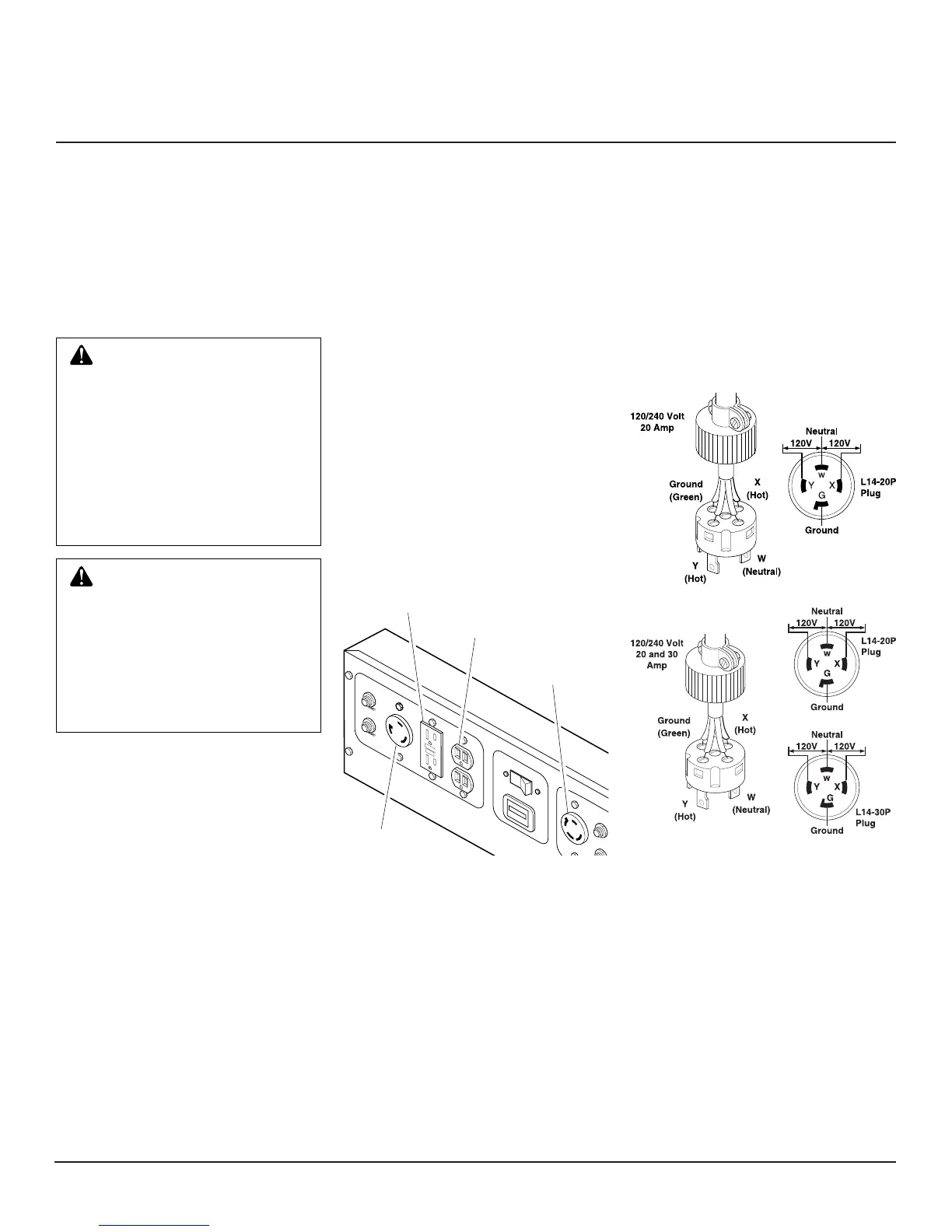

Figure 13 - Receptacle Locations
120V, 15-Amp GFCI Duplex
120/240V, 20 or 30-
Amp Twist-Lock
120V, 30-Amp
Twist-Lock
POWER CORD AND PLUG
REQUIREMENTS
120V, 30-amp twist-lock receptacle
• NEMA L5-30P plug
• Three-wire, 30-amp cord
120/240V, 20 or 30-amp twist-lock
receptacle
• NEMA L14-20P (20-amp) or L14-30P
(30-amp) plug
• Four-wire, 20-amp or 30-amp cord
Figure 14 - Cord and Plug Configurations
Continued
Note: We supply the engine owner’s manual
with generator. Refer to that manual for ques-
tions concerning engine operation.
DANGER: Never connect gen-
erator to any existing electrical
circuits. The generator output will
back-feed into the utility power
line. This may electrocute a power
company line repair person. Also,
if generator is powering electrical
circuits, the chance of an electri
-
cal fire exists.
DANGER: Use only in well-
vented areas. Make sure area
has plenty of free-moving, fresh,
outside air. Never run generator
in an enclosed or confined area.
Never run generator inside oc-
cupied building. Engine exhaust
contains poisonous carbon
monoxide gas. Overexposure will
cause loss of consciousness and
will lead to death.
120V, 15-Amp Duplex
USING RECEPTACLE
Note: Do not exceed amperage rating of
receptacles. Exceeding rating will trip re
-
ceptacle circuit breaker.
Use receptacles properly. Improper use could
damage generator. Use only grounded exten-
sion cords. Power only grounded or double-
insulated items. Do not overload receptacles.
All generators (except models HWI3000A,
MGH3000GA, and MGH3000A) have the
following receptacles (see Figure 13):
• 120V, 15-amp GFCI duplex receptacle
• 120V, 30-amp twist-lock receptacle
• 120/240V, 20 or 30-amp twist-lock
receptacle
• 120V, 15-amp duplex receptacle
Model HWI3000A has only the 120V, 20-
amp duplex receptacle.
Models MGH3000GA and MGH3000A
have only the 120V, 15-amp GFCI duplex
receptacle.
