Master LINE User Manual

The sensors generate automatic manoeuvres without notice that can be dangerous. The installer must to inform the end-user and possibly integrate the installation with adequate
security systems. In some situations (eg power loss of motor or sensor, motor failure or sensor, radio noise ...) it is possible that the command imparted by the sensor is not detected
by the motor. The sensor must therefore not be understood as a safety device which ensures the integrity of the roller in every condition, but a means to reduce the possibility that the
shutter being damaged by adverse weather conditions.
8.1 COMPATIBLE SENSORS
The LINE series have integrated radio receiver and require the use of radio sensors. Use the sensor series BLASTor BLAST BT (wind sensor), VEGAor VEGABT (sun/wind sensor),
X11C (rain sensor) with the power supply AT12. When the sensor detects the presence of wind, the "wind alarm" command is sent: the tuned motors move upward and manual
controls are disabled until the end of the alarm. When the sensor detects the presence of the sun, the "presence of sun" command is sent: the tuned motors move downward. When
the sensor detects the absence of the sun, the "absence of sun" command is sent: the tuned motors move upward. When the sensor detects the presence of rain, the "presence of
rain" command is sent: the tuned motors move up or down, depending on the settings of rain sensor. Each device can store up to 4 sensors wind, only one sun sensor. For more
information, consult the manual of sensors.
04
(*) briefly press, max 2 seconds between each press and the next
5. Press . The motor makes 1 down/up movement.PROG
1. Bring the motor to the upper limit switch.
2. Disconnect power supply, wait a few seconds; connect power supply.
The motor makes 1 downward movement.
4. Using and adjust the upper limit switch.UP DOWN
3. Press in sequence the buttons(*).STOP - PROG - UP
WARNING: The modification of the upper limit switch is not possible if the upper limit switch has been learned by contact with an obstacle.
(*) briefly press, max 2 seconds between each press and the next
1. Bring the motor in an intermediate position.
The motor makes 1 up/down movement.
4. Follow as described in section 3, point G and subsequent.
2. Disconnect power supply, wait a few seconds; connect power supply.
3. Press in sequence the buttons(*).STOP - PROG - STOP
STOP
PROG
STOP
WARNING: This procedure can change the limit also if it is not completed. For this reason, in case of interruption of the procedure is necessary completely repeat the same.
Go to section
3, point F
ON
STOP
PROG
UP
PROG
a rain sensor: press « » of rain sensor you want to memorize/deleteP2
a transmitter: press of transmitter you want to memorize/deleteSTOP
a sensor: press « » of sensor you want to memorize/deleteP1
2. Press PROG of an already memorized transmitter for 5 s. The motor
performs 2 upward movements.
1 downward movement: device deleted!!
2 downward movement: error!!
1. Bring the motor in an intermediate position.
3. Within 15 seconds, to memorize/delete:
4. 1 upward movement: device memorized!!
PROG
(5 seconds)
NOTES: point 03. in battery powered sensors may be necessary to keep the button pressed up to 10 seconds.
point 04. "error"is reported if the radio code is not received in time, if the receiver's memory is full, if you try to delete the only memorized transmitter, if you try to
memorize more than 1 sun sensor or more than 4 wind sensor
a transmitter: press of transmitter you want to memorize/deleteSTOP
1. Bring the motor in lower limit switch.
2. Disconnect power supply, wait a few seconds; connect power supply.
3. Within 15 seconds, press (briefly and quickly).DOWN 8 times
The motor performs 3 upward movements.
4. Within 15 seconds, press (briefly and quickly).UP 3 times
The motor performs 2 upward movements.
5. Within 15 seconds, to memorize/delete:
6. 1 upward movement: device memorized!!
a rain sensor: press « » of rain sensor you want to memorize/deleteP2
1 downward movement: device deleted!!
2 downward movement: error!!
a sensor: press « » of sensor you want to memorize/deleteP1
NOTES: point 05. in battery powered sensors may be necessary to keep the button pressed up to 10 seconds.
point 06. "error"is reported if the radio code is not received in time, if the receiver's memory is full, if you try to delete the only memorized transmitter, if you try to
memorize more than 1 sun sensor or more than 4 wind sensor
4.1 USING A TRANSMITTER
4.2 USING COMMAND BUTTONS
STOP
P1
P2
P2
P1
STOP
P1
P2
P2
P1
8 x DOWN
3 x UP
ON

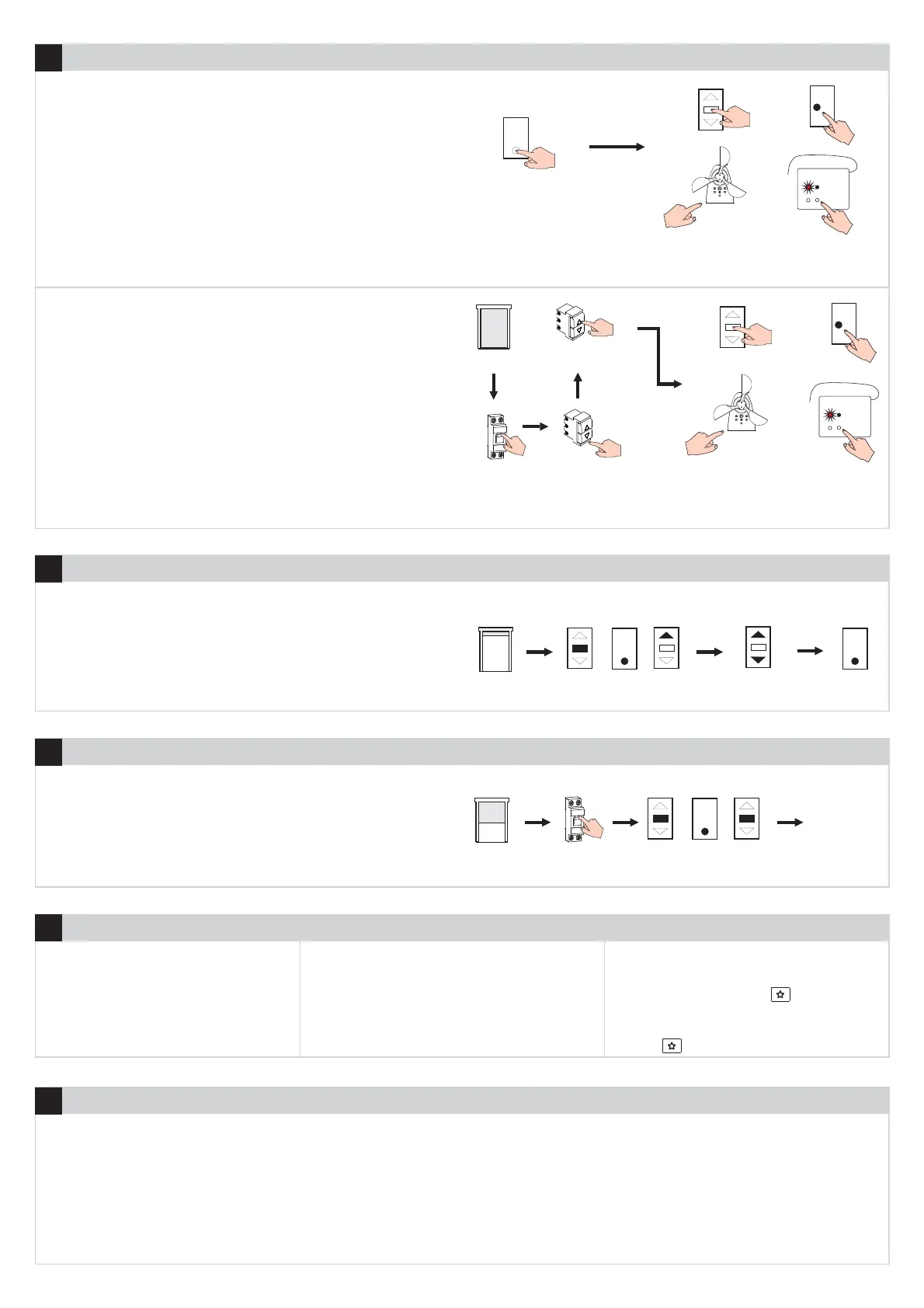

HOW TO MEMORIZE/DELETE A RADIO DEVICE
4
FINE ADJUSTMENT OF UPPER LIMIT SWITCH
5
MODIFY BOTH THE LIMIT SWITCHES
6
SUN,WIND, RAIN SENSORS
FAVORITE POSITION
7
2. Press together STOP and FOR ME until the
motor performs a signal.
To memorize:
To recall:
1. Bring motor in the favorite position
1. Press FOR ME
ARCO
1. Bring motor in the favorite position
2. Press briefly STOP 6 times and then hold DOWN
until the motor performs a signal.
To memorize:
To recall:
1. Press STOP 3 times (briefly)
FLUTE, KUADRO, KORT
01. Press FOR ME
01. Bring motor in the favorite position
02. Press together STOP and until the motor
performs a signal
To recall:
To memorize:
VISIO
8
