Master MAC-18W-DDF-A - Page 5

© 2015, Pinnacle Products International, Inc. 5 +9)$LU&LUFXODWRU8VHU¶V0DQXDO
5HSODFHPHQW3DUWV
,WHP 'HVFULSWLRQ 3DUW1XPEHU
1 Logo Plate 95-043-0370
2 Front Guard 95-032-0150
3
Fan Blade Assembly 95-003-06254
5
6 Upper Bracket 95-061-0100
7 Rear Guard 95-032-0250
8 Motor 95-030-0515
9 Switch Holder 95-031-0300
,WHP 'HVFULSWLRQ 3DUW1XPEHU
10 Switch Gasket 95-031-0340
11 Switch (Chain) 95-031-0110
12 Switch Cover 95-031-0500
13 Cord Bushing 95-026-0160
14 Pivot Washer 95-024-0300
15 Swivel Spacer 95-050-0185
16 Pivot Screw 95-024-0310
17 Capacitor 95-004-0215
18 Power Cord 95-026-0230
´:$//)$10$&:'')
1
2
3
4
5
6 7
8
9
10 11
12
13
14
15
16
17
18

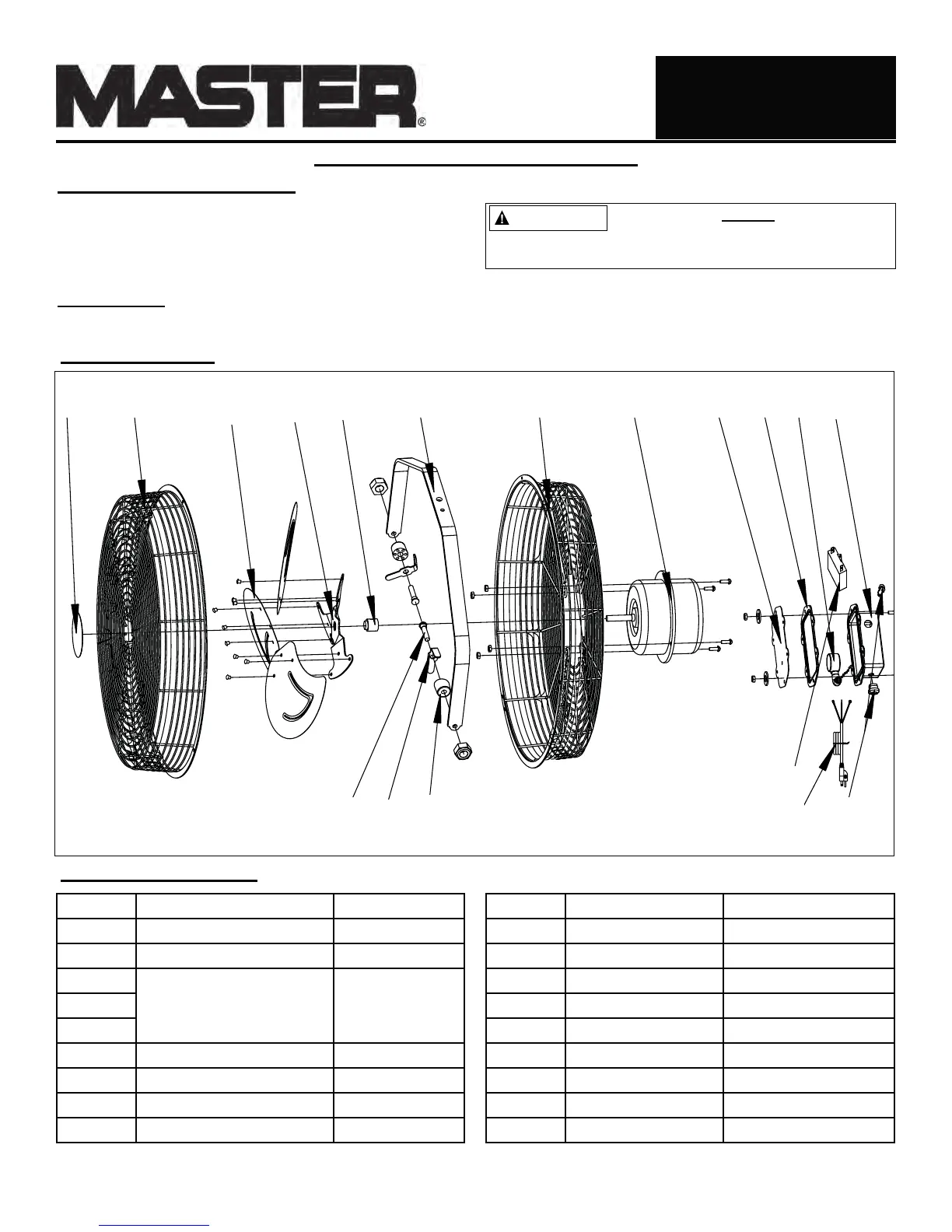

Figure 1: Exploded View of MAC-18W-DDF
([SORGHG9LHZ
:DOO0RXQW,QVWDOODWLRQ
1. Attach fan to wall or ceiling using Upper Bracket
(Item #6).
2. Be sure Upper Bracket (Item #6) is attached to a
suitable beam when hanging.
7RROV1HHGHG
- 10mm Adjustable Wrench.
The installer MUST be
certain that the support bracket is
mounted to a minimum of a 2x4” stud, and that it
is able to support 50 pounds continuously.
WARNING
1(9(5/($9($)$1
81$77(1'(':+,/(
23(5$7,1*25:+,/(
&211(&7('72$32:(5
6285&(
