OWNER’S MANUAL
9 17587000 Ground Lug 1
10 099891-01 Flanged Nut, 8mm 1
11 099861-01 Bottom Cover 1
12 099842-01 Draw Bolt 1
13 26310000 Screw, M6 x 16 4
14 27001005S Engine Flange 1
15 WLE-4 Lock Washer, 1/4" 4
16 ** Stator 1
17 27001002 Bearing 1
18 27001009S Diode 2
19 ** Rotor 1
20 27001006 Fan 1
21 26327006 Bolt, 5/16-24 x 5/8" 4
22 WLE-5 Lock Washer, 5/16" 4
PARTS AVAILABLE - NOT SHOWN
099866-03 Safety Information Decal 1
099866-04 Safety Information Decal 1
099867-02 Operation Decal 1

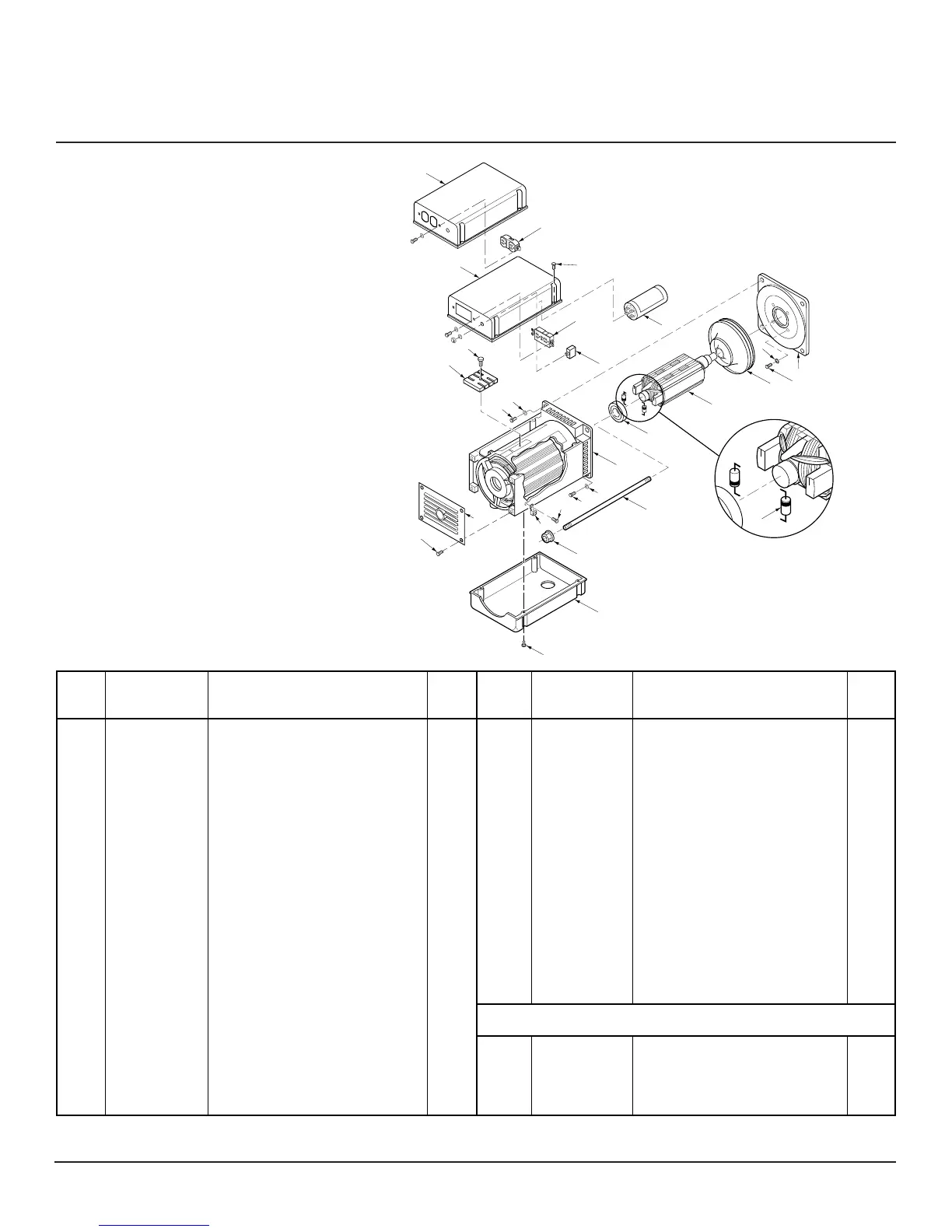

ILLUSTRATED
PARTS LIST
For Models HWI3000,
MGH3000G, MGH3000, and
MGH3000PR Alternator
Assembly
This list contains replaceable parts used in
your generator. When ordering parts, fol-
low the instructions listed under Replace-
ment Parts on page 32 of this manual.
† Includes fastening hardware. * Includes reference numbers 1 through 22.
** Parts not available. Included in alternator assembly.
KEY PART
NO. NUMBER DESCRIPTION QTY.
099722-01 Alternator Assembly
(HWI3000)* 1
099722-02 Alternator Assembly
(MGH3000G, MGH3000,
and MGH3000PR)* 1
1a 099849-01 Top Cover (HWI3000) 1
1b 100074-01 Top Cover (MGH3000G,
MGH3000, and
MGH3000PR) 1
2a 104201-01 120V, 20A Duplex
Receptacle (HWI3000)† 1
2b 100445-01 120V, 15A Duplex (GFCI)
Receptacle (MGH3000G,
MGH3000 and
MGH3000PR)† 1
3 22616009 Circuit Breaker, 20 Amp † 1
4 27002002S Capacitor 1
5 26333000 Screw, M4 x 20 1
6 099863-01 Terminal Block 1
7 099701-01 Screw, M5 x 13 13
8 099848-01 End Plate 1
KEY PART
NO. NUMBER DESCRIPTION QTY.
5
6
16
18
17
19
20
14
10
3
8
9
7
12
13
15
13
15
21
22
7
11
7
4
1b
2b
7
1a
2a
